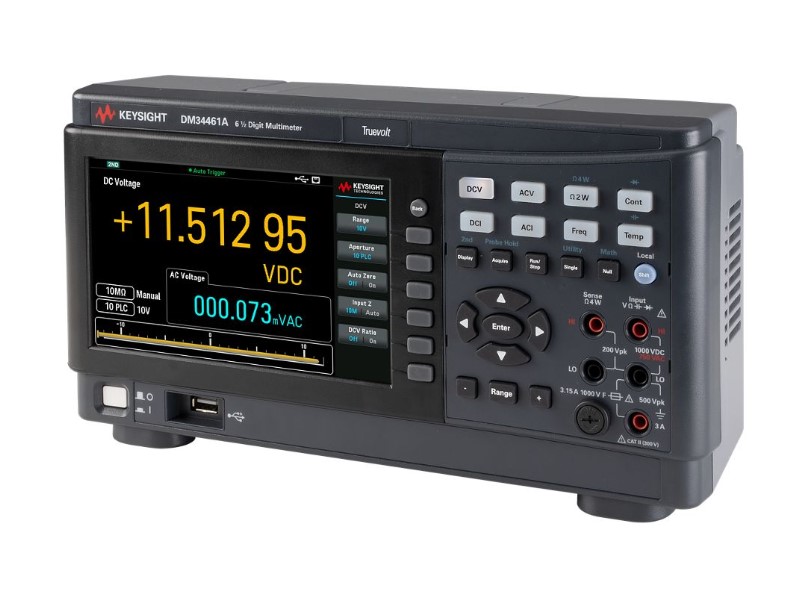

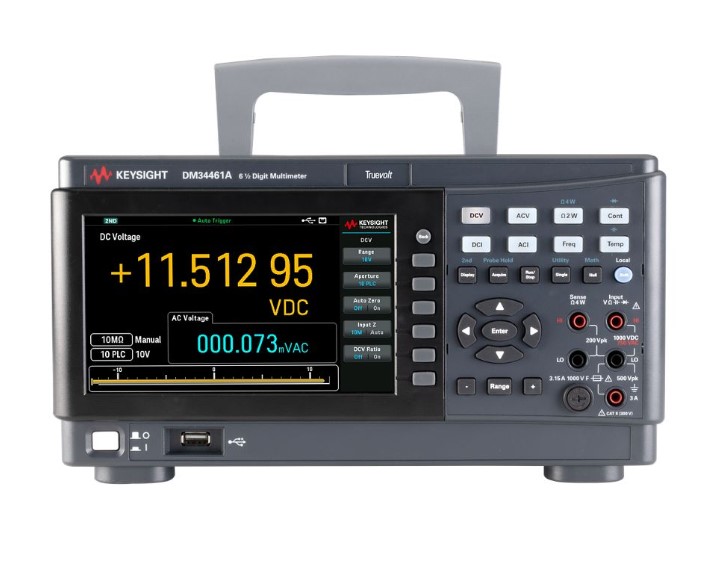

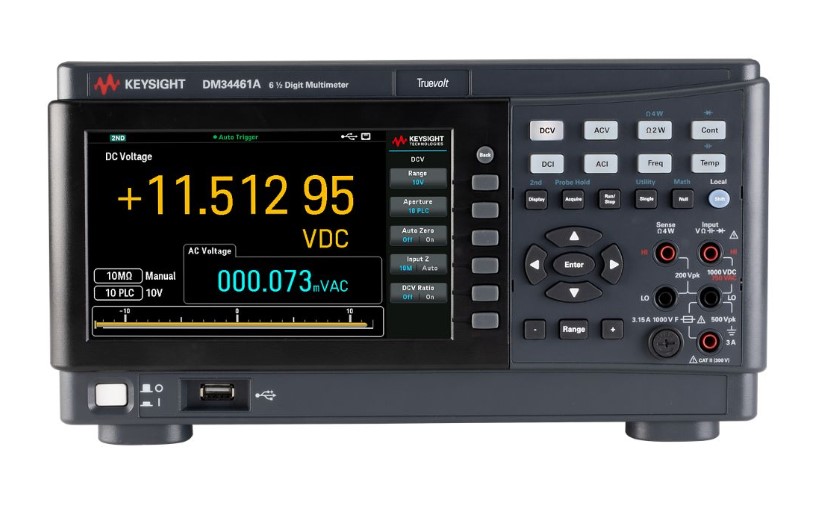

Keysight DM34461A DM6-class Digital Multimeter, 40 ppm Dual-display
The Keysight Smart Bench Essentials Plus DM34461A digital multimeter allows you to perform accurate hardware design validation and debugging. Its built-in Truevolt technology eliminates extraneous noise from the true measurement, ensuring reliable measurements every time and a good balance of resolution, linearity, and accuracy. With its digitizer and graphing trend chart functions, you can quickly uncover critical test insights, keeping your project on track.
Similar to all products in the Smart Bench Essentials Plus family, it comes with a three-year warranty and KeysightCare technical support to de-risk your project. DM34461A enables you to do the following:
- Set up parameters with a 7-inch color display.
- Achieve 0.0040% one-year DCV accuracy.
- Store up to 2 million readings in memory.
- Read at speeds of up to 50K per second.
- Measure 11 input signals: DC voltage, DC current, True RMS AC voltage, AC current, two- and four-wire resistance, frequency, continuity, diode test, temperature, and capacitance.
- Visualize statistical graphics such as bar meter, histogram, trend chart.
Specifications:
| Model |
DM34461A |
| Digits of resolution |
6½ |
| Basic DCV accuracy |
40 ppm |
| Max reading rate |
50,000 readings/s |
| Memory |
2 million readings |
| NISPOM and file security |
Yes |
| Data logging |
Yes |
| Display |
7" Color, graphical |
| Statistical graphics |
Bar meter, histogram, trend chart |
| DC Voltage (DCV) |
100 mV to 1,000 V |
| AC Voltage (ACV RMS) |
100 mV to 750 V |
| DC Current (DCI) |
100 µA to 3 A |
| AC Current (ACI) |
100 µA to 3 A |
| Resistance (2- and 4-wire) |
100 Ω to 100 MΩ |
| Continuity, diode |
Yes, 5 V |
| Frequency, period |
3 Hz to 300 kHz |
| Temperature |
RTD/PT100, thermistor |
| Capacitance |
1 nF to 100 µF |
| IO interface USB |
Yes |
| LAN/LXI Core |
Yes |
