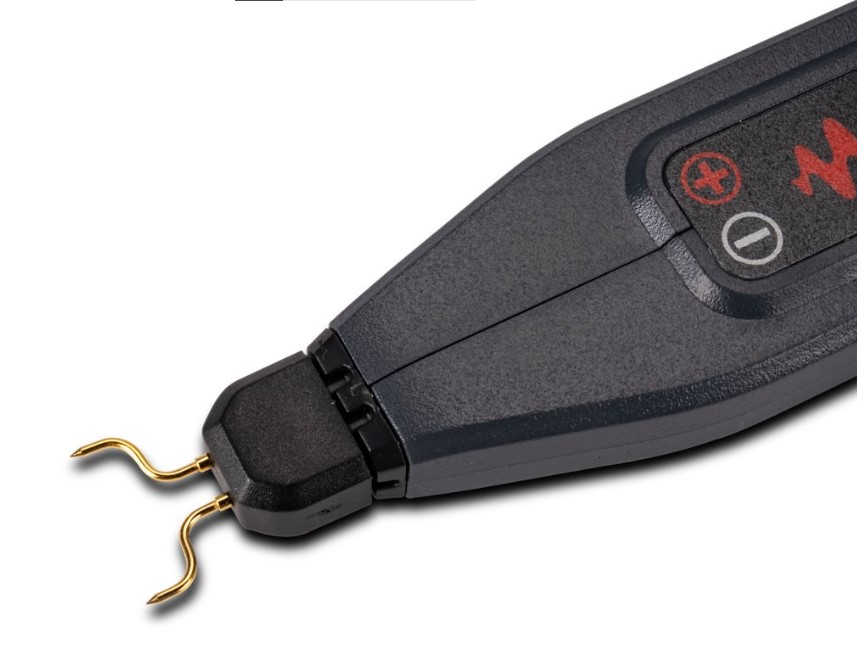

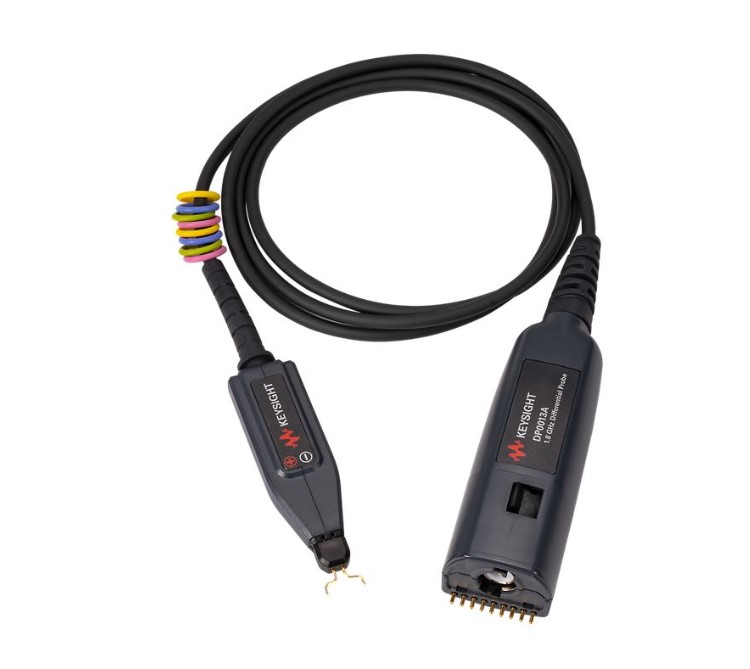

The Keysight DP0010A is the 250 MHz model of the DP001xA Series differential active probes. These probes provide the superior general-purpose differential signal measurements required for many of today’s high-speed power-related measurements such as motor drives, automotive differential bus measurements, and high-speed digital system designs.
- Bandwidth at 250 MHz
- Maximum differential measurement range (DC and AC peak): ±42 V
- ±4.2 V on 17:1 auto attenuation ranges
- ±42 V on 85:1 auto attenuation ranges
- Input impedance: 1.7 MΩ / 1.5 pF
- Cable length: 1.3 meters
- Compatible oscilloscopes
- Keysight InfiniiVision HD3, 3000T X-, 4000 X-, and 6000 X-Series
- Keysight Infiniium EXR-, MXR-, and S-Series
- Keysight Infiniium UXR-, V-, Z-, Q-, and 90000 X-Series with the use of the Keysight N5442A adapter

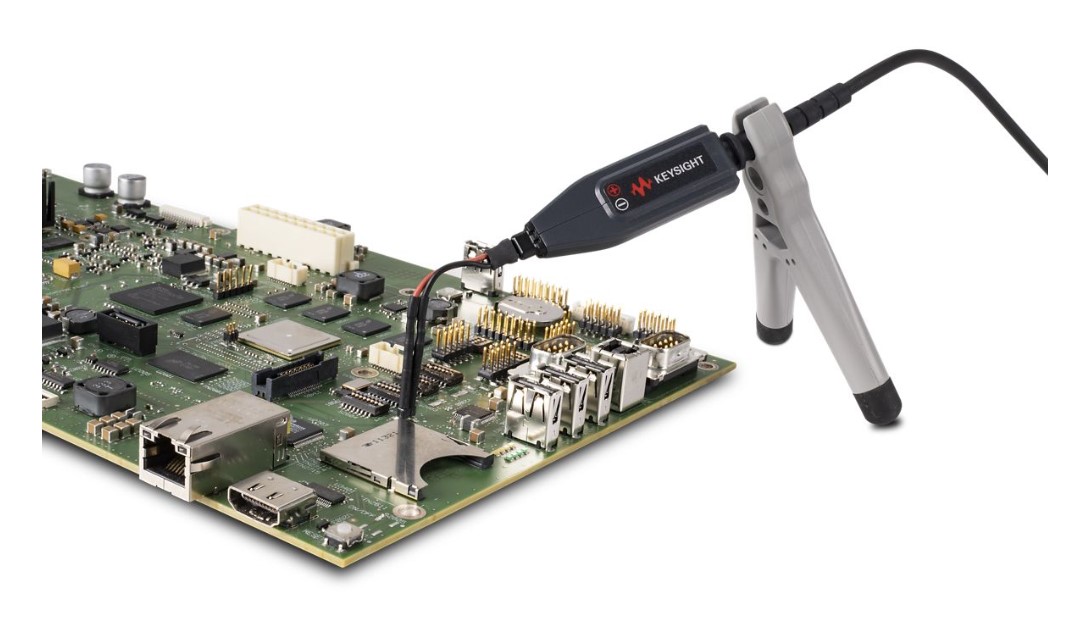

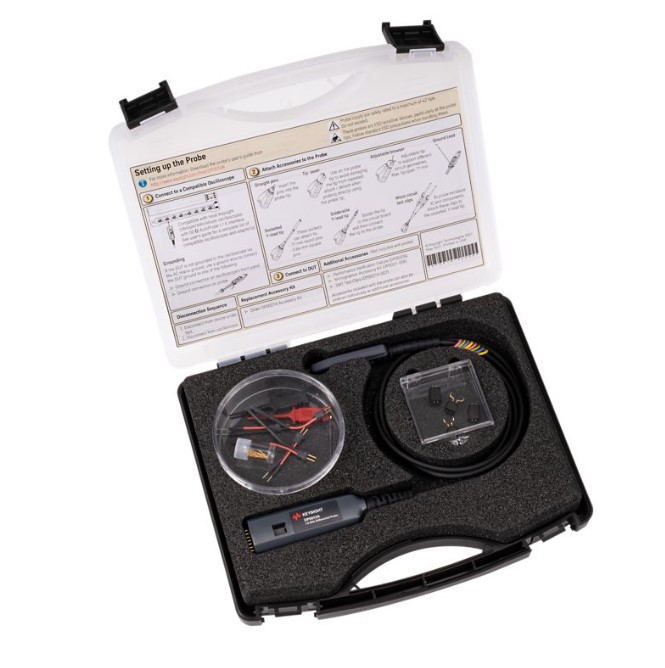

Each DP0010A Series differential active probe comes in a hard plastic carrying case and comes with the following standard accessories:
- Socketed Y-lead pair (2 pieces)
- Solder-in Y-lead pair (2 pieces)
- 90o socketed ground lead (1 piece)
- Micro circuit hook test clips (2 pieces)
- Adjustable probing browser (2 pieces)
- Probe tip saves (2 pieces)
- Straight pins (10 pieces)
Specifications:
| Manufacturer |
Keysight Technologies |
| Model |
DP0010A |
| Product Type |
Differential Active Probe |
| Bandwidth |
250 MHz |
| Input Resistance |
1.7 MΩ (Differential) |
| Input Capacitance |
Approximately 1.2 pF (Differential) |
| Attenuation |
10:1 |
| Maximum Differential Voltage |
±40 V |
| Common-Mode Voltage |
±40 V |
| Rise Time |
≤1.4 ns |
| Differential Input Configuration |
Differential |
| CMRR |
High Common-Mode Rejection Ratio (frequency dependent) |
| Probe Interface |
AutoProbe II |
| Oscilloscope Input |
50 Ω |
| Compatible Oscilloscopes |
Keysight Infiniium and InfiniiVision oscilloscopes with AutoProbe II interface |
| Power Source |
Powered through AutoProbe II interface |
| Operating Temperature |
0°C to +50°C |
| Storage Temperature |
-40°C to +70°C |
| Cable Length |
Approximately 1.3 m |
| Accessories Included |
Probe head, browser tips, solder-in accessories, grabbers, ground leads, probe holder, accessory kit |
| Safety Standard |
IEC 61010-031 |
| Compliance |
CE, UKCA, RoHS |
