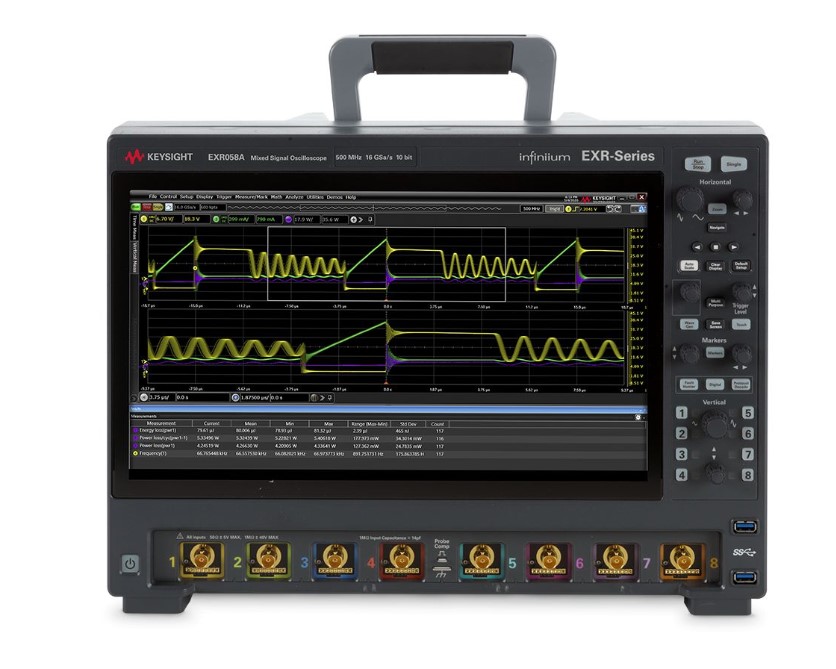

Keysight EXR058A, 500MHz 8 Analog channels Benchtop XR6-class Oscilloscopes

Imagine trying to see a fast signal on a cheap scope and only getting a blurry mess. The Keysight EXR058A is a 500 MHz benchtop oscilloscope with eight analog channels designed for real-time work. Engineers, technicians, and hobbyists use it to capture high-speed waveforms, debug circuits, and verify designs. If you struggle with missed edges or noisy data, this instrument gives you the clarity and speed you need.

Keysight EXR058A, 500MHz 8 Analog channels Benchtop XR6-class Oscilloscopes

Many labs still rely on older scopes that cannot keep up with modern 500 MHz signals. When the bandwidth is too low, the waveform is distorted and critical timing errors go unnoticed, leading to costly redesigns. This problem hurts productivity and can damage a products reputation. The Keysight EXR058A solves it by delivering a full 500 MHz bandwidth, 16 GSa/s sample rate, and eight analog inputs, so you can see every edge clearly. Its 15.6-inch display and built-in 7-in-1 instrument integration let you analyze power, frequency, and protocol without extra gear, turning a complex test into a single, reliable step.

Key Features

• 500 MHz bandwidth for high-frequency measurement.
• 8 simultaneous analog inputs.
• Optional 16 digital channels for protocol work.
• 16 GSa/s maximum real-time sampling.
• 10-bit ADC delivering up to 9 ENOB.
• 1.6 Gpts memory depth for long captures.
• 15.6-inch color display with intuitive UI.
• ASIC-accelerated plotting for fast redraw.
• Included N2873A 500 MHz passive probe per channel.
• 500 GB removable SSD for data storage.

Specifications
