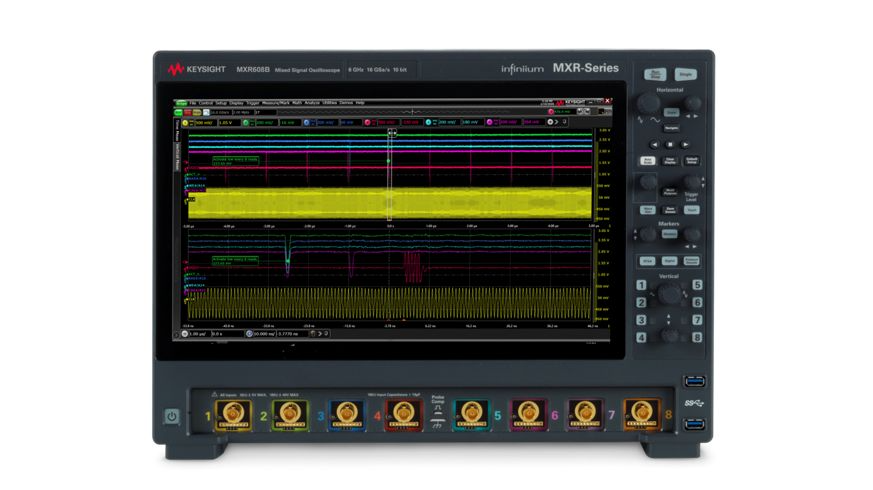

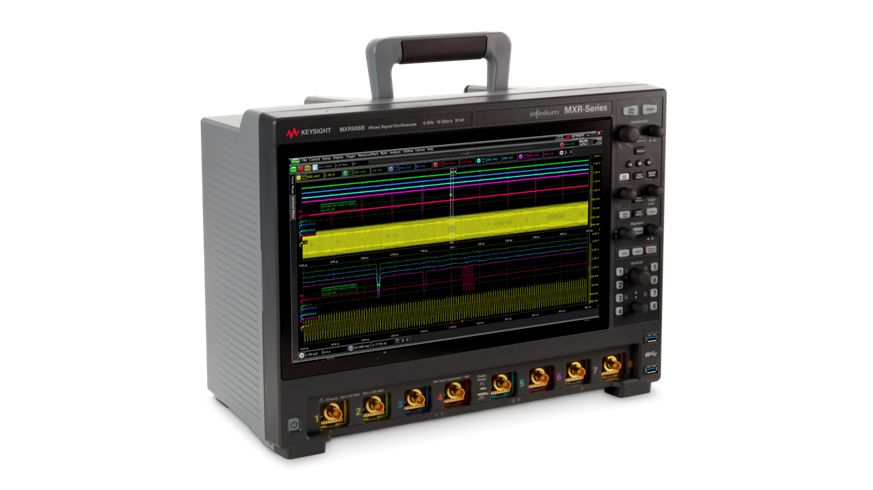

Minimize the risk of launching products susceptible to bugs and failures with an oscilloscope that displays the truest, granular details. Built from the same high-performance standard set by the MXR A, the MXR B[1]Series boasts newer, hardware-accelerated technology that speeds up test time. In addition to faster hardware, the MXR B-Series includes standard features like Keysight’s state-of-the-art InfiniiScan Event Identification Software, a built-in, 50 MHz arbitrary waveform generator, and a 50 MHz frequency response analyzer. The automated analysis tools, extra-low, front-end noise, and uncompromised performance of the MXR B-Series enable you to test faster, shorten time to market, and design without compromise using an oscilloscope that delivers dependable results.
About the Infiniium MXR B-Series
Welcome to the Infiniium MXR B-Series. With twelve models ranging in performance from 500 MHz to 6 GHz, 4 or 8 analog channels, and dozens of hardware and software options, the Infiniium MXRB-Series is designed to meet your needs today. With a fully upgradeable platform, it will be ready for your measurement needs tomorrow.
See More in the Time Domain with Eight Analog Channels
The Infiniium MXR B-Series is the only oscilloscope to offer 6 GHz bandwidth and 16 GSa/s sample rate on all eight channels. Combined with 200 Mpts of standard memory per channel, flexible, three-stage triggering, over 50 standard measurements, a massive library of application-specific analysis packages, and hardware-accelerated testing, the Infiniium MXR B-Series lets you see more of your signal than ever before.
Highlights
- Up to 6 GHz bandwidth on all 8 channels all the time
- Up to 70% faster jitter analysis (compared to MXR A)
- 65% faster power integrity analysis (compared to MXR A)
- 45% faster FFTs (compared to MXR A)
- 15% faster USB 2.0 compliance testing (compared to MXR A)
- New standard features InfiniiScan and Wave Gen
- Maximum memory is a flexible 1.6 G points
- Capabilities are extended with 8-in-1 instrument integration
- Upgradeable in every possible way — including bandwidth and channel upgrades
Specifications
| Analog Channels |
8 |
| Digital Channels |
16 |
| Display Size |
15.6 inch |
| DDC RTSA |
Yes |
| Maximum Sample Rate |
16 GSa/s |
| ADC Resolution |
10 bits |
| Brands Included |
MXR Series |
| Maximum Memory Depth |
1.6 Gpts |
| Maximum Bandwidth |
6 GHz |
