Imagine you are testing a new 5G transmitter and a tiny error in power reading could ruin the whole design. The Keysight N1912A, 2-Channels, 9 kHz to 110 GHz PM2-class Power Meter Dual-channel gives you fast, accurate power data on two signals at once. It is built for engineers who need to trust every milliwatt when they validate antennas, amplifiers, or wireless links. Without a reliable meter you waste time, risk equipment damage, and miss critical performance limits.

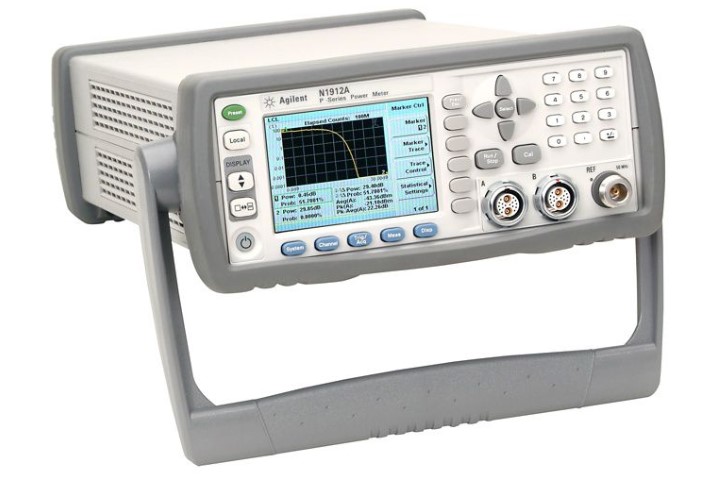

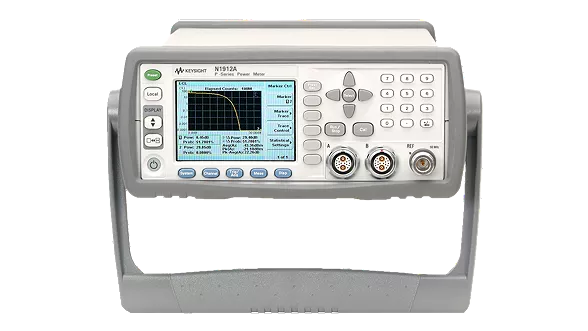

Keysight N1912A, 2-Channels, 9 kHz to 110 GHz PM2-class Power Meter Dual-channel
This meter solves the problem of limited bandwidth and single-channel measurement that many labs face. When you can only see one signal, you may miss mismatches that cause interference or loss. The dual-channel design lets you compare a reference and a test path in real time, so you can spot problems instantly. Its wide frequency span from 9 kHz to 110 GHz covers everything from low-frequency audio to millimeter-wave radar, giving you one tool for all projects.
Key Features
- Two independent measurement channels.
- Frequency coverage from 9 kHz to 110 GHz (sensor dependent).
- Dynamic range of -70 dBm to +44 dBm.
- Peak frequency range up to 50 GHz with compatible sensors.
- 100 MSamples/s real-time capture rate.
- Supports N8480, E-Series, N1921A/N1922A wideband sensors.
- 22 predefined measurement formats including Wi-MAX, HSDPA, DME.
- Pulse analysis with auto-scale, rise/fall time, and duty-cycle.
- CCDF statistical analysis for power distribution.
- LAN, USB, GPIB, and LXI Class C interfaces for flexible control.
- Internal zero and calibration while connected to DUT.
- BenchVue software integration for easy data logging.
Specifications
| General |
|
| Model |
Keysight N1912A |
| Product Type |
PM2-Class Dual-Channel Power Meter |
| Number of Channels |
2 |
| Compatible Sensors |
N8480 Series, 8480 Series, E-Series, E9320 Peak & Average Series,
N1921A/N1922A Wideband Power Sensors
|
| Measurement Performance |
|
| Frequency Range |
9 kHz to 110 GHz (sensor dependent) |
| Dynamic Range |
–70 to +44 dBm (sensor dependent) |
| Peak Frequency Range |
50 MHz to 50 GHz (with compatible peak sensors) |
| Peak Dynamic Range |
–35 to +20 dBm |
| Video Bandwidth |
30 MHz |
| Sampling Rate |
100 MSamples/s (single-shot real-time capture) |
| Measurement Functions |
|
| Power Measurements |
Average, Peak, Peak-to-Average Ratio (PAPR) |
| Pulse Measurements |
Rise Time, Fall Time, Pulse Width |
| Statistical Analysis |
CCDF (Complementary Cumulative Distribution Function) |
| Math Functions |
A−B, B−A, A/B, B/A |
| Average Triggering |
Supported |
| Display & Analysis |
|
| Predefined Measurement Formats |
22 (including WiMAX, DME, HSDPA, and others) |
| Pulse Analysis |
Auto Scale, Auto Gate, Rise/Fall Time, Duty Cycle |
| Internal Zero & Calibration |
Supported while connected to DUT (with compatible sensors) |
| Interfaces |
|
| LAN |
Standard |
| USB |
Standard |
| GPIB |
Standard |
| LXI Compliance |
LXI Class C |
| Features |
|
| Wideband Sensor Support |
N192XA Wideband Power Sensors (50 MHz to 40 GHz) |
| Sensor Compatibility |
Supports N8480/8480 Series, E-Series, E9320 Series Sensors |
| BenchVue Support |
BenchVue Basic Power Meter/Sensor Control & Analysis App (BV0007B) |
| Calibration Cycle |
2 Years |
