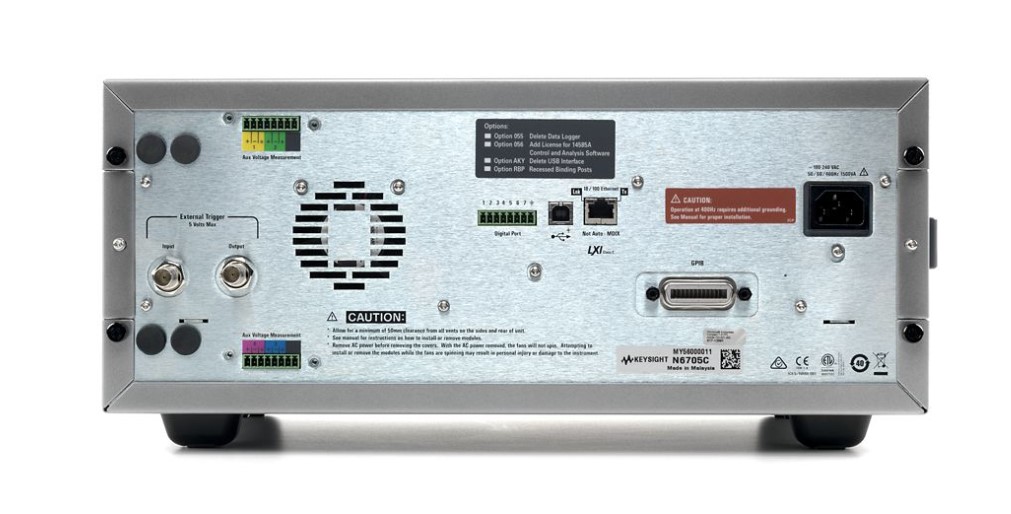

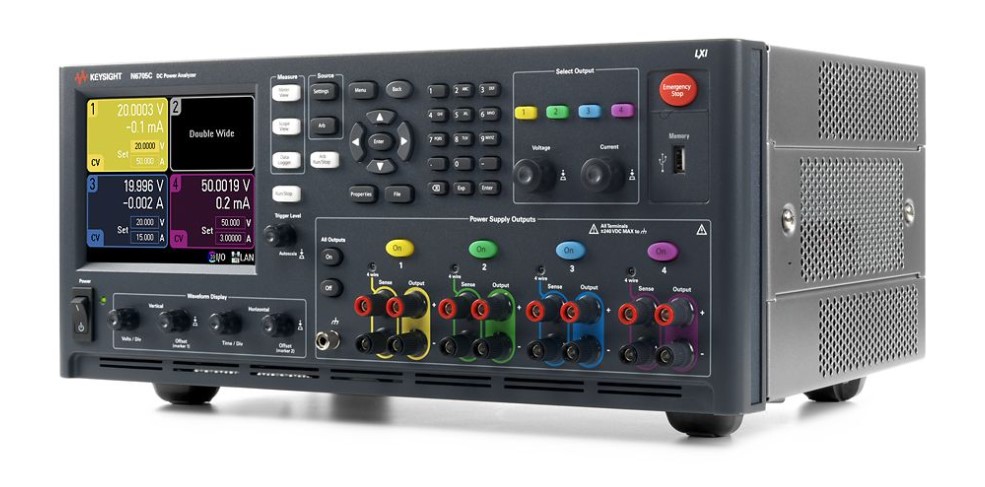

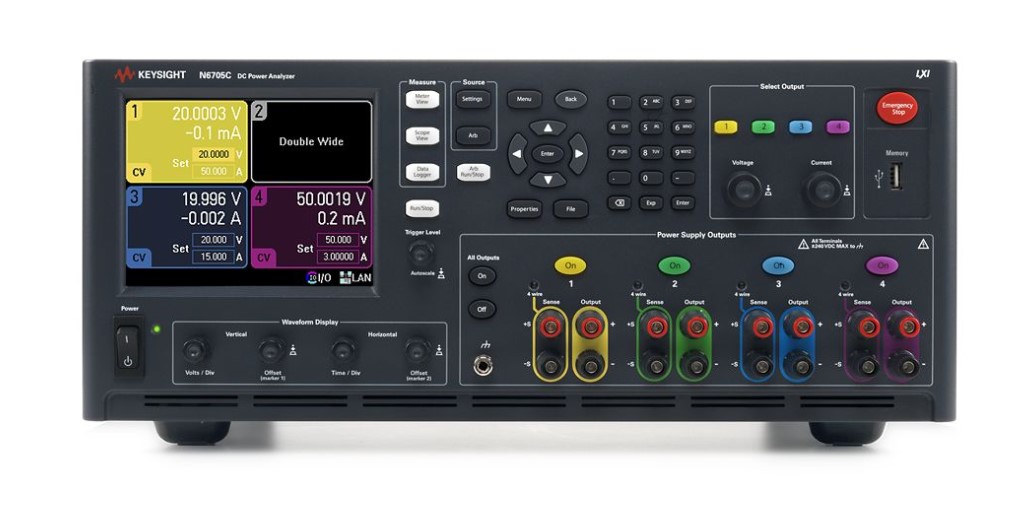

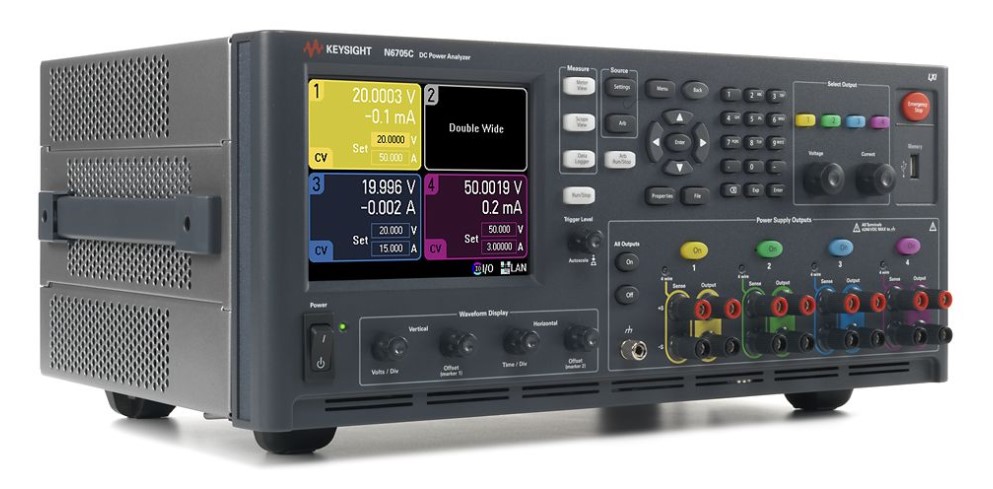

Keysight N6715C NP2-class DC Power Analyzer Mainframe, 600 W, built-to-order
The Keysight N6715C NP2-class DC Power Analyzer Mainframe is a custom, build-to-order system designed to streamline the testing of components and devices under test (DUT). Delivering up to 600 W of total output power across a versatile 4-slot modular architecture, it combines the functionality of multiple advanced DC power supplies or electronic loads, a digital multimeter (DMM), an oscilloscope, an arbitrary waveform generator (AWG), and a deep data logger into a single, high-performance instrument.
By unifying 5 instruments into one box, the N6715C eliminates the need for complex multi-instrument wiring, external transducers, and tedious software programming. Instead, engineers can easily configure parameters, source precise waveforms, and perform deep 18-bit dynamic voltage and current measurements directly from the large color graphic interface on the front panel. This build-to-order system arrives fully tested, integrated, and ready to go with your specific choices from Keysight's catalog of over 30 power modules. It provides an unparalleled, all-in-one bench platform optimized for design validation, R&D testing, and battery drain analysis.
Key Features:
Specifications:
| Model |
N6715C |
| Product Type |
Build-to-order DC power analyzer system, shipped as a fully tested and assembled instrument |
| System Base |
1 × N6705C mainframe with total available power of 600 W |
| Module Slots |
4 (accepts 1 to 4 modules; minimum one module required) |
| Module Ordering |
Modules ordered as options with “–ATO” suffix (e.g., N6731B-ATO) |
| Double-slot Modules |
N6753A–N6755A, N6763A–N6766A, N6792A occupy two slots |
| Display |
5.7" color LCD |
| GPIB Interface |
SCPI – 1993, IEEE 488.2 compliant |
| LAN |
10/100 Ethernet (LXI Class C) |
| USB |
USB 2.0 |
| IO Software Requirement |
Keysight IO Library M.01.01 or 14.0 and above |
| Operating Environment |
Indoor use, Installation Category II (AC input), Pollution Degree 2 |
| Temperature Range |
0 °C to 55 °C (output current derated 1% per °C above 40 °C ambient) |
| Relative Humidity |
Up to 95% |
| Altitude |
Up to 2000 meters |
| AC Input Ratings |
100 VAC – 240 VAC; 50/60/400 Hz |
| Power Consumption |
1440 VA |
| Power Factor |
0.99 @ nominal input and rated power |
| Net Weight |
16 kg / 35 lbs (with 4 modules, typical) |
| Dimensions (H × W × D) |
194.7 mm × 425.6 mm × 313 mm (7.665 in × 16.756 in × 12.319 in) |
