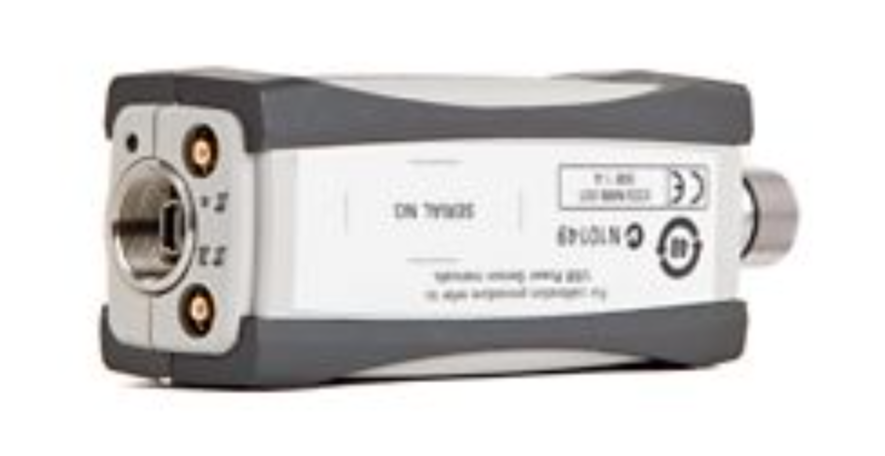

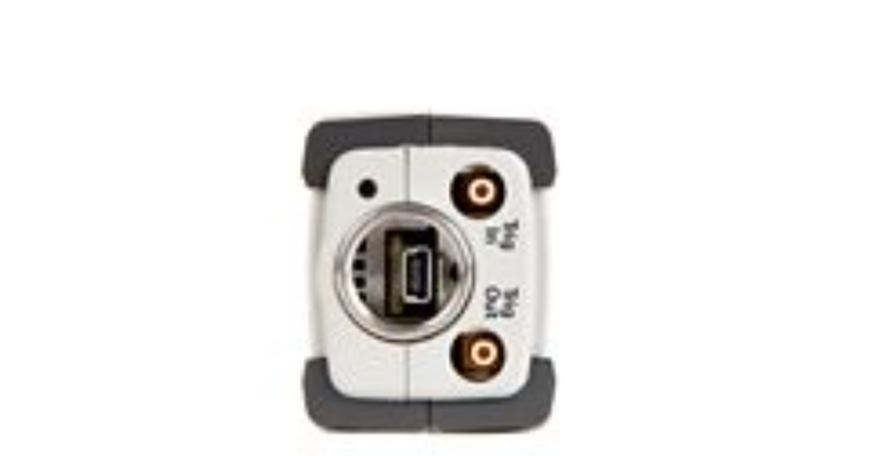

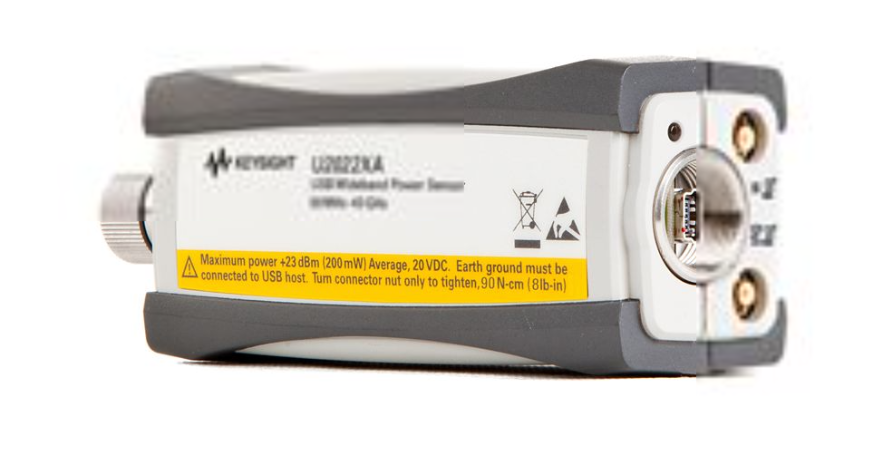

Keysight U2022XA 50 MHz to 40 GHz USB Peak Power Sensor
Accelerate your production throughput with Keysight Technologies, Inc. U2020 X-series USB peak power sensors. These sensors provide the high performance and features needed to satisfy the requirements of many power applications in R&D and manufacturing, offering a fast measurement speed of > 25,000 readings/second to reduce testing time and cut cost of test.
Highlights
- Frequency range of 50 MHz to 40 GHz
- Wide dynamic range of -30 to +20 dBm (peak/gated), -45 to +20 dBm (average only mode)
- 30 MHz video bandwidth and single-shot real-time capture at 80 Msamples per second
- Internal zeroing & calibration
- High measurement speed of up to 25,000 readings/second (free run/fast buffer mode)
Specifications
| Frequency Range |
50 MHz to 40 GHz |
| Power Range, Normal Mode |
–30 dBm to 20 dBm (50 MHz to <500 MHz)
–35 dBm to 20 dBm (500 MHz to 40 GHz) |
| Power Range, Average Only Mode |
–45 dBm to 20 dBm (50 MHz to 40 GHz) |
| Damage Level |
23 dBm (average power)30 dBm (< 1 μs duration) (peak power) |
| Rise/Fall Time |
≤ 13 ns |
| Maximum Sampling Rate |
80 Msamples/sec, continuous sampling |
| Video Bandwidth |
≥ 30 MHz |
| Single-Shot Bandwidth |
≥ 30 MHz |
| Minimum Pulse Width |
50 ns |
| Basic Accuracy of Average Power Measurement |
≤ ± 0.3 dB or ± 6.7% |
| Maximum Capture Length |
1 s (decimated)1.2 ms (at full sampling rate) |
| Maximum Pulse Repetition Rate |
10 MHz (based on 8 samples/period) |

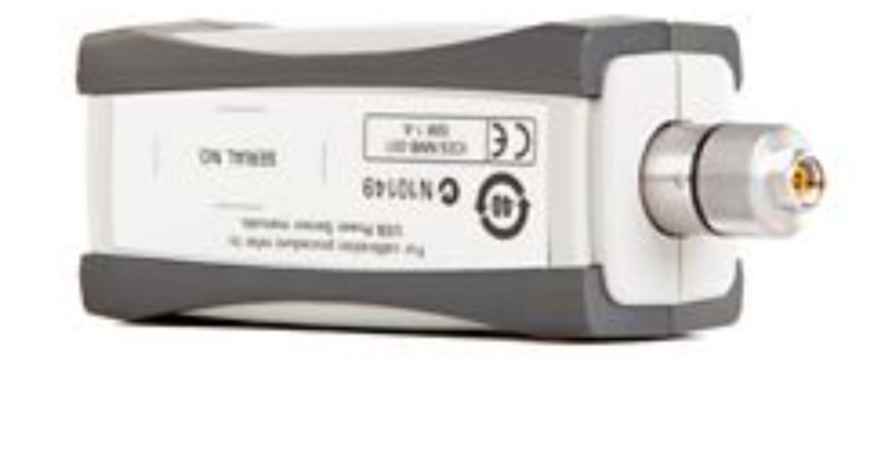

| Connector Type |
2.4 mm (m) |
