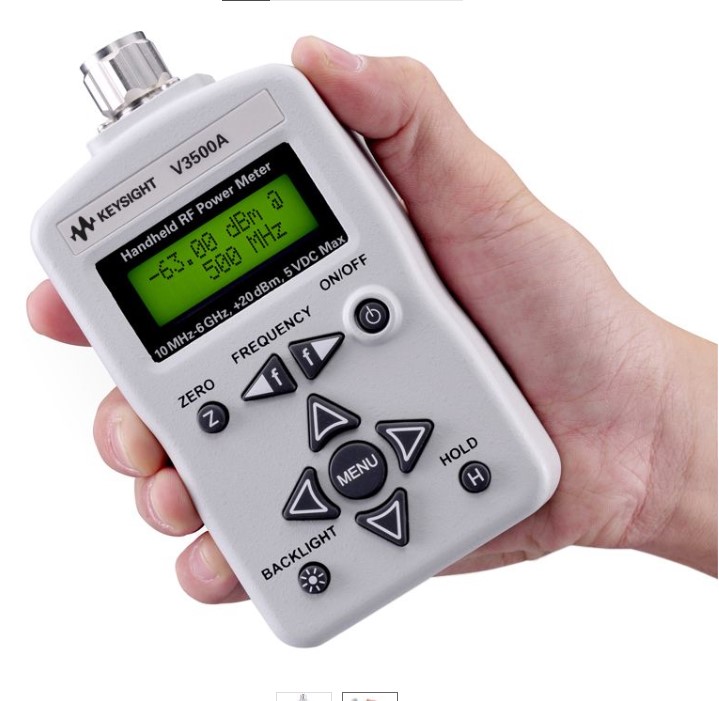

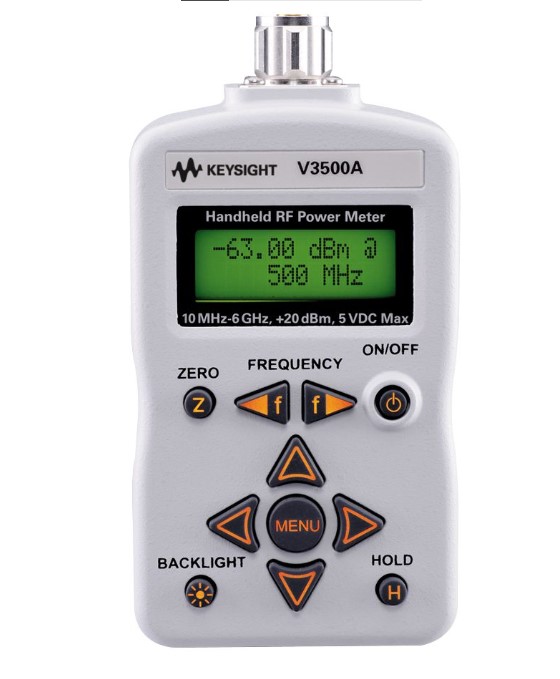

Keysight V3500A, PM1-class handheld power meter, 10 MHz to 6 GHz
The Keysight V3500A handheld RF power meter is a compact, portable instrument that makes lab quality RF power measurements in both field and R&D laboratory environments. With an absolute accuracy up to ±0.21 dB, a wide frequency range of 10 MHz to 6 GHz, and measurement range of –60 dBm to +20 dBm, the V3500A is suitable for a wide variety of RF measurement applications. Its built-in power sensor eliminates the need for users to carry both an instrument and a separate sensor module, and the same sensor is used when duplicating tests or measurements for better repeatability. Truly portable, the V3500A fits easily into your hand or a toolkit and optional loop holster carrying case with shoulder strap is also available to fit your needs. To optimize flexibility, it’s capable of drawing operating power from batteries, an AC-DC converter module, or a computer via the USB interface. With its features and very attractive price, the V3500A truly redefines superior value.
Highlights
- Broad 10 MHz to 6 GHz frequency range enables use in a wide variety of applications
- Wide dynamic range of -63 to +20 dBm
- Integrated power sensor eliminates the need to carry a separate power sensor
- Internal power reference enables self-calibration
- Absolute accuracy as good as ±0.21 dB
- Powered from batteries, an AC-DC converter module, or a computer via a USB interface
The V3500A Handheld RF Power Meter is a compact, portable instrument designed for accurate RF power measurements in both field and manufacturing environments. Offering absolute accuracy as good as ±0.21 dB, a wide frequency range of 10 MHz to 6 GHz, and a measurement range from -63 to +20 dBm, the V3500A is well-suited for a broad range of RF applications.
Its built-in power sensor eliminates the need to carry both a separate instrument and a sensor module. Truly portable, the V3500A fits easily into your hand or toolkit, with optional accessories such as a belt loop holster and a carrying case with a shoulder strap. For maximum flexibility, it can be powered by batteries, an AC-DC converter module, or via a USB connection to a computer.
Notice : for Argentina, Mexico, Russia, South Korea, and North Korea customers: The V3500A is discontinued as its power adapter does not meet the country's safety certification requirements.
Specifications:
| General |
|
| Model |
Keysight V3500A |
| Product Type |
PM1-Class Handheld RF Power Meter |
| Number of Channels |
1 |
| Sensor Type |
Integrated Power Sensor |
| Measurement Performance |
|
| Frequency Range |
10 MHz to 6 GHz |
| Dynamic Range |
–63 dBm to +20 dBm |
| Absolute Accuracy |
As good as ±0.21 dB |
| Linearity (23 °C ± 5 °C) |
±0.10 dB (+6 dBm to –40 dBm) |
| SWR |
1.12:1 (10 MHz to 3.75 GHz); 1.20:1 (3.75 GHz to 6 GHz) |
| Display |
|
| Display Type |
Built-in LCD with Backlight |
| Display Features |
Auto Shut-off |
| Calibration & Measurement |
|
| Internal Power Reference |
Supported |
| Self-Calibration |
Internal Power Reference Enables Self-Calibration |
| Zero Function |
Dedicated Zeroing Key for Improved Low-Level Measurement Accuracy |
| Relative Offset Function |
–99.99 dB to +99.99 dB |
| Connectivity |
|
| USB Interface |
USB Mini-B for Remote Programming and Power Connection |
| RF Connector |
Type-N Male |
| Power |
|
| Power Sources |
AA Batteries, USB Interface, Optional AC-DC Converter Module |
| Mechanical |
|
| Form Factor |
Handheld |
| Portability |
Integrated Sensor Eliminates External Power Sensor |
| Applications |
|
| Typical Applications |
Field RF Power Measurements, Manufacturing Test, R&D Laboratory Measurements |
| Included Accessories |
|
| Standard Accessories |
USB Type-A to Mini-B Cable, User's Guide, Product Reference CD-ROM |
