| General |
|
| Model |

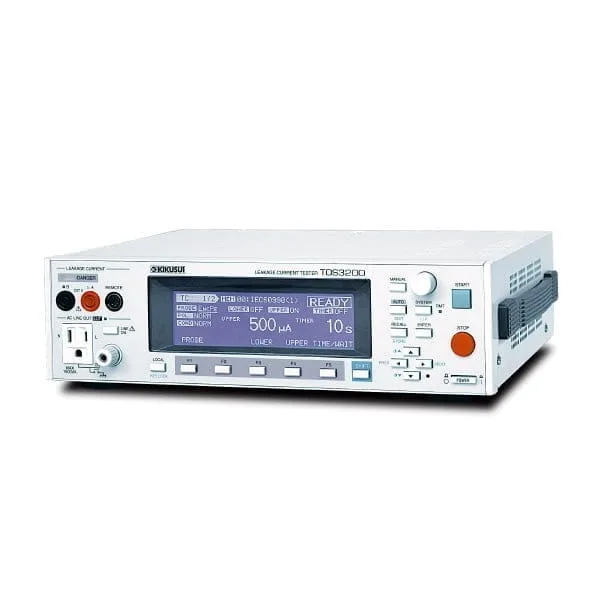

Kikusui TOS3200 |
| Product Type |
Leakage Current Tester |
| Measurement Items |
Touch Current (TC), Protective Conductor Current (PCC), METER |
| Measurement Modes |
DC, RMS (True RMS), PEAK |
| Preset Safety Standard Tests |
51 Types |
| Measurement Circuit Networks (NTWK) |
|
| Network A |
(1.5 kΩ // 0.22 μF) + 500 Ω |
| Network B/B1 |
(1.5 kΩ // 0.22 μF) + 500 Ω // (10 kΩ + 0.022 μF) |
| Network C |
(1.5 kΩ // 0.22 μF) + 500 Ω // (10 kΩ + (20 kΩ + 6.2 nF) // 9.1 nF) |
| Network D |
1 kΩ |
| Network E |
1 kΩ // (10 kΩ + 11.225 nF + 579 Ω) |
| Network F |
1.5 kΩ // 0.15 μF |
| Network G |
2 kΩ |
| Network Constant Tolerance |
Resistance: ±0.1%; 0.15 μF Capacitor: ±2%; Others: ±1% |
| Current Measurement |
|
| Measurement Range 1 |
DC/RMS: 30 μA to 600 μA; PEAK: 50 μA to 850 μA |
| Measurement Range 2 |
DC/RMS: 125 μA to 6.00 mA; PEAK: 175 μA to 8.50 mA |
| Measurement Range 3 |
DC/RMS: 1.25 mA to 30.0 mA; PEAK: 1.75 mA to 90.0 mA |
| Range Switching |
AUTO / FIX |
| Display Resolution |
1 μA (<1 mA); 0.01 mA (1–10 mA); 0.1 mA (10–100 mA) |
| Input Resistance |
1 MΩ ±1% |
| Input Capacitance |
<200 pF |
| Common Mode Rejection Ratio |
≥60 dB (≤10 kHz); ≥40 dB (10 kHz to 1 MHz) |
| Judgment Function |
|
| Judgment Method |
Window Comparator (Upper/Lower Limits) |
| Judgment Results |
PASS, U-FAIL, L-FAIL |
| PASS Hold Time |
0.2 s to 10.0 s or HOLD |
| Voltage Measurement (A–B) |
|
| Measurement Range |
DC/RMS: 10.000 V to 300.0 V; PEAK: 15.000 V to 430.0 V |
| Accuracy |
±(3% of Reading + 2 V) |
| Input Impedance |
Approx. 40 MΩ |
| SELV Detection |
Adjustable 10 V to 99 V, OFF |
| Timer & Memory |
|
| Test Wait Time |
0 to 999 s |
| Test Time |
1 to 999 s, OFF |
| AUTO Test |
Up to 100 Programs (500 Total Steps) |
| MANUAL Test |
Up to 100 Programs |
| Test Result Memory |
Up to 50 AUTO Programs or 50 MANUAL Tests |
| Additional Functions |
|
| Measured Value Conversion |
80.0 V to 300.0 V, OFF |
| Measurement Display |
NORM, MAX |
| Power Phase Selection |
NORM, REVS |
| Single Fault Selection |
NORM, FLTNEU, FLTPE |
| Ground Check |
CONTACTFAIL Detection |
| Measurement Check |
Automatic Measurement Function Check |
| EUT Voltage Measurement |
80.0 V to 250.0 V |
| EUT Current Measurement |
0.1 A to 15.00 A |
| Effective Power Measurement |
10 W to 1500 W |
| Calibration Protection |
Calibration Expiration Warning/Protection |
| Protective Functions |
Relay Error, Overload, Over-range, Internal Battery Failure, Measurement Function Check |
| Interfaces |
|
| RS-232C |
D-Sub 9-pin (9600/19200/38400 bps) |
| GPIB |
IEEE Std. 488-1978 |
| USB |
USB 2.0 |
| Remote |
6-pin Mini-DIN |
| Signal I/O |
25-pin D-Sub |
| General |
|
| Measurement Terminal Rating |
250 V, 100 mA |
| Measurement Category |
CAT II |
| Valid Terminal Display |
LED Indicators |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
−20°C to 70°C |
| Installation |
Indoor, Altitude ≤2000 m |
| Power Requirements |
|
| Instrument Input Power |
100–240 VAC, 50/60 Hz, 70 VA Max. |
| EUT Output |
100–240 VAC, 50/60 Hz, 1500 VA, 15 A Max., 70 A Peak Inrush |
| Insulation Resistance |
≥30 MΩ (500 VDC) |
| Withstand Voltage |
1390 VAC, 2 s |
| Earth Continuity |
25 AAC / ≤0.1 Ω |
| Compliance |
|
| Safety |
EN61010-1 (Class I, Pollution Degree 2), Low Voltage Directive 2014/35/EU |
| EMC |
EN 61326-1, EN 55011 Class A Group 1, EN 61000-3-2, EN 61000-3-3 |
| Mechanical |
|
| Dimensions |
320 × 88 × 270 mm (345 × 105 × 330 mm Max.) |
| Weight |
Approx. 5 kg |
| Standard Accessories |
|
| Included Items |
TL21-TOS Test Leads (Red/Black), FP01-TOS Flat Probe, 15 A Spare Fuse, Instruction Manual,
Circuit Principle Diagram Sticker, Two Power Cords
|
