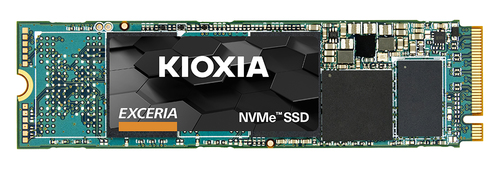

Upgrading from a hard drive or SATA SSD should be easy and affordable and that’s where EXCERIA SSDs come in. KIOXIA EXCERIA SSD Series is built to boost your mobile or PC experience and deliver balanced performance and value that will transform your system. Leveraging BiCS FLASH™ 3D flash memory, this new mainstream-class SSD series offers up to 1TB of capacity in a M.2 2280 form factor suitable for both desktops and notebooks.
Application Peformance Maximized
KIOXIA EXCERIA SSD series redefine mainstream storage for everyday users that feel held back by SATA-based hardware. Say goodbye to hard drive lag and get a computing experience worthy of your applications.
Small and Compact for an Easy Upgrade
Featuring a slim and light M.2 2280 form factor, the EXCERIA SSD series plugs directly into thin notebooks’ motherboard, reducing additional cable clutter for a sleeker and an easy system upgrade.
NVMe™ Technology
Why keep using an interface that was designed for hard drives? Utilizing the latest NVMe™ 1.3c technology, EXCERIA SSDs reduce latency in your system’s I/O path between your SSD and your CPU, resulting in smooth and responsive performance.
Cutting Edge 3D Flash Memory
Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience.
Specifications
| Features |
| TBW rating |
100 |
| Mean time between failures (MTBF) |
1500000 h |
| TRIM support |
Yes |
| PCI Express interface data lanes |
x4 |
| Random write (4KB) |
290000 IOPS |
| Random read (4KB) |
200000 IOPS |
| Write speed |
1200 MB/s |
| Read speed |
1700 MB/s |
| Hardware encryption |
No |
| Component for |
Laptop |
| Memory type |
TLC |
| NVMe version |
1.3c |
| NVMe |
Yes |
| Interface |
PCI Express 3.1a |
| SSD form factor |
M.2 |
| SSD capacity |
250 GB |
| Power |
| Power consumption (average) |
5.3 W |
| Operating voltage |
3.3 V |
| Weight & dimensions |
| Weight |
6.9 g |
| Height |
2.23 mm |
| Depth |
80.2 mm |
| Width |
22.1 mm |
| Operational conditions |
| Operating shock |
1000 G |
| Operating vibration |
20 G |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
0 - 85 °C |
| Other features |
| Operating temperature (T-T) |
0 - 85 °C |
