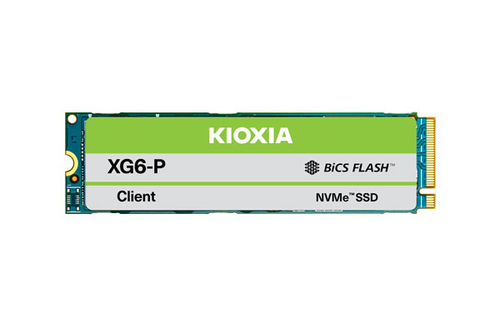

Leveraging KIOXIA’s 96-layer BiCS FLASH 3D TLC (3-bit-per-cell) flash memory, XG6-P SSDs provide high storage capacity, while maintaining the promise of ultra-thin, high-speed storage with exceptional power efficiency. It is best suited for video/CG contents production requiring hi-speed access to high-cap data, AI/machine learning applications, workstations, and high-end PCs. XG6-P Series achieve 2,920 MB/s of sequential write performance, which is 32.7 % improvement vs our previous generation premium model XG5-P Series. The 2,048 GB XG6-P SSD is available in a single-sided M.2 2280 (22 x 80mm) form factor and offers security options including TCG Pyrite Version 1.0 support for Non-SED (Self-Encrypting Drive) configurations and TCG Opal Version 2.01 support for SED.
Specifications
| Features |
| Mean time between failures (MTBF) |
1500000 h |
| M.2 key ID |
M |
| Write speed |
2920 MB/s |
| Read speed |
3180 MB/s |
| Component for |
PC/notebook |
| NAND flash type |
TLC (Triple Level Cell) |
| Memory type |
3D TLC |
| NVMe version |
1.3a |
| NVMe |
Y |
| Interface |
PCI Express 3.0 |
| SSD form factor |
M.2 |
| SSD capacity |
2048 GB |
| Power |
| Power consumption (sleep) |
0.003 W |
| Power consumption (write) |
3 W |
| Power consumption (read) |
4.9 W |
| Weight & dimensions |
| Weight |
7.3 g |
| Height |
2.23 mm |
| Depth |
80 mm |
| Width |
22 mm |
| Operational conditions |
| Operating shock |
1500 G |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
0 - 95 °C |
| Other features |
| Operating temperature (T-T) |
0 - 95 °C |
