Are you tired of dealing with power supply issues in your electronic systems? Do you struggle with finding a reliable and efficient power backplane that can meet your needs? Look no further than the Kontron 2.H0002051 3U VPX Power Backplanes with 2-slot & J0 connector. This product is designed to provide a solution to your power supply problems, offering a reliable and efficient way to power your electronic systems. With its advanced features and capabilities, the Kontron 2.H0002051 is the perfect choice for anyone looking for a high-quality power backplane.

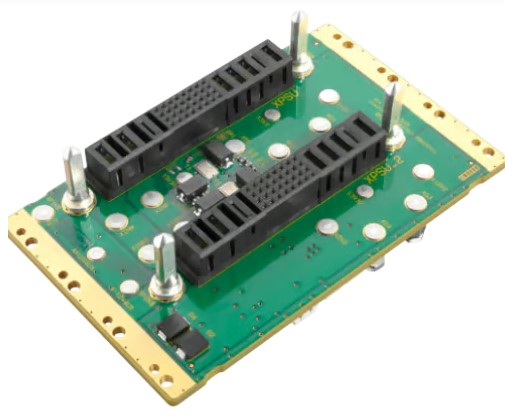

Kontron 2.H0002051 3U VPX Power Backplanes with 2-slot & J0 connector
The Kontron 2.H0002051 3U VPX Power Backplanes with 2-slot & J0 connector is designed to solve the problem of power supply inefficiency and unreliability in electronic systems. This problem is critical because it can lead to system failures, data loss, and decreased productivity. The Kontron 2.H0002051 provides a clear solution by offering a reliable and efficient power backplane that can meet the needs of even the most demanding electronic systems. With its advanced features and capabilities, this product is the perfect choice for anyone looking for a high-quality power backplane.
Key Features
- 3U VPX Power Backplane with 2-slot & J0 connector
- Input voltage: 85-265 VAC
- Maximum input current: 17 A per slot
- Power output connections: M4 studs for +12 V and GND, M3 studs for +3.3 V and +5 V
- PCB dimensions: 128.50 x 129.09 x 5.4 mm
- System signals: Fail, Reset, and Sense signals
- Management signals: Enable and Inhibit signals accessible
- System Management Interface: I2CA, I2CB on the backplane
- Keying: Flexible keying and alignment mechanism
- PSU compatibility: Compatible with standard VPX 3U AC PSUs
- Operating temperature: -40 C to +85 C
Specifications
| Part Number |
2.H0002051 |
| Product Type |
3U VPX Power Backplane |
| Form Factor |
3U |
| Standard |
VITA 62 |
| Slot Configuration |
2-slot 3U J0 connector |
| Input Voltage |
85–265 VAC |
| Maximum Input Current |
17 A per slot |
| Power Output Connections |
M4 studs for +12 V (VS1, max. 80 A) and GND (max. 160 A);
M3 studs for +3.3 V (VS2, max. 40 A) and +5 V (VS3, max. 80 A)
|
| PCB Dimensions |
128.50 × 129.09 × 5.4 mm |
| System Signals |
Fail, Reset, and Sense signals |
| Management Signals |
Enable and Inhibit signals accessible |
| System Management Interface |
I2CA, I2CB on the backplane |
| Keying |
Flexible keying and alignment mechanism |
| PSU Compatibility |
Compatible with standard VPX 3U AC PSUs (e.g., Hartmann 600 W AC Power Supply D575.00646) |
| Shelf Manager Compatibility |
Compatible with Hartmann Shelfmanager (P/N 1H00004161) |
| Operating Temperature |
–40 °C to +85 °C |
| Storage Temperature |
–55 °C to +85 °C |
| Flammability Rating |
UL94-V0 |
