Are you tired of using servers that are bulky and difficult to manage? Do you need a server that can handle your heavy workload without taking up too much space? Look no further than the Kontron CG2400 Compact 2U, 20" Deep Carrier Grade Rackmount Server. This server is designed to provide high-performance computing in a compact and efficient package. With its powerful processors and ample storage, it is perfect for businesses that need a reliable and efficient server. Many businesses struggle with servers that are slow and unreliable, causing downtime and lost productivity. The Kontron CG2400 is the solution to this problem, providing a fast and efficient server that can handle even the most demanding workloads.

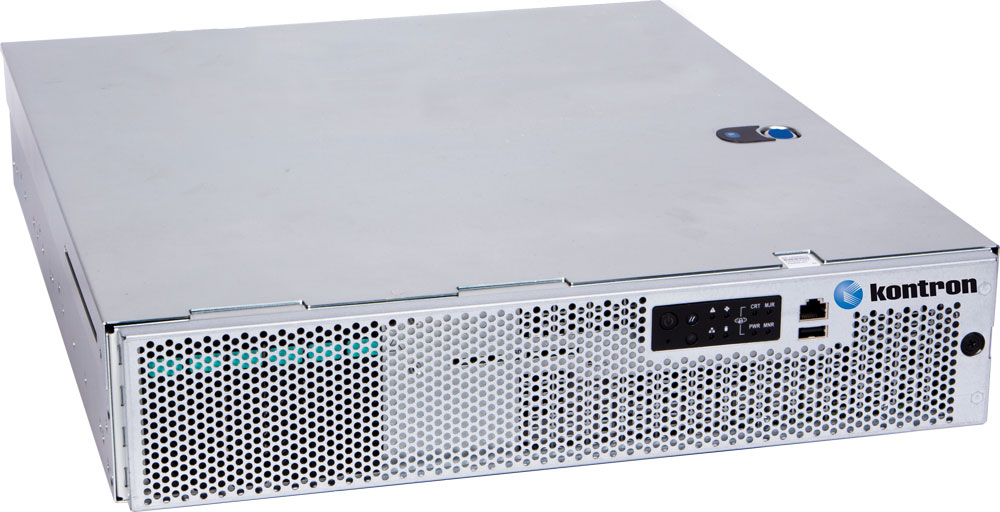

Kontron CG2400 Compact 2U, 20" Deep Carrier Grade Rackmount Server
The Kontron CG2400 solves the problem of bulky and inefficient servers by providing a compact and powerful solution. This problem matters to users because it can cause downtime and lost productivity, ultimately affecting their bottom line. The Kontron CG2400 gives a clear solution by providing a high-performance server that is designed to meet the needs of businesses. With its dual-socket 1st/2nd Generation Intel Xeon Scalable processors and up to 7x PCIe slots, it provides the power and flexibility that businesses need to succeed.
Key Features
- Dual-socket 1st/2nd Generation Intel Xeon Scalable processors
- Up to 7x PCIe slots for flexible I/O acceleration
- Up to six 2.5-inch hot-swap SATA solid-state drives
- Software RAID 0, 1, and 10 for reliable and efficient storage
- Four rear USB 3.0 ports and one front USB 2.0 port
- One RJ-45 serial connector in front and one DB-15 video connector in rear
- Supports two risers (4 FL/FH cards) and 3 LP adapters for a total of 7 PCIe Gen2/Gen3 I/O cards
- Compact 2U design with a depth of 20 inches
- Operating temperature range of -5C to 55C (41F to 131F)
- Humidity range of 95%, non-condensing at temperatures of 23C (73F) to 40C (104F)
Specifications
| Overview |
|
| Description |
Compact 2U, 20-Inch Deep Carrier Grade Rackmount Server |
| Features |
Dual-socket 1st/2nd Generation Intel® Xeon® Scalable processors, Designed to meet NEBS-3/ETSI
certifications, 6x hot-swap, tool-less, 2.5” SAS HDDs / SATA SSDs, Up to 7x PCIe slots for flexible I/O
acceleration
|
| Processor |
|
| Processor |
First or Second Generation Intel® Xeon® Scalable |
| Chipset |
Intel® C622 Chipset (PCH) |
| Connections |
|
| PCI Adapter Slot Support |
Supports two risers (4 FL/FH cards) and 3 LP adapters for a total of 7 PCIe Gen2/Gen3 I/O cards |
| PCIe Riser Options |
Two riser options for each of two PCIe slots, 2 slot FL/FH PCIe x8 passive (right side* - Gen3),
2 slot FL/FH PCIe x8 passive (left side* - Gen3), 1 slot FL/FH PCIe x16 passive (right side* - Gen3),
1 slot FL/FH PCIe x16 passive (left side* - Gen3)
|
| Serial Ports |
RJ-45 serial connector in front |
| Video Ports |
One DB-15 video connector (rear) |
| USB 3.0 Ports |
Four rear |
| USB 2.0 Ports |
One front |
| Management Ports |
One RJ-45 connector to support ASPEED AST2500 BMC |
| Storage |
|
| Storage Type |
Up to six 2.5-inch hot-swap SATA solid-state drives |
| Redundancy |
Software RAID 0, 1 and 10 |
| Internal Storage |
2x M.2 NVMe storage 2280 (80mm) flash storage |
| External Storage |
Carrier with six HDD / SSD tray |
| SD Flash Storage |
Two (2) front accessible Secure Data flash media devices are supported |
| Memory |
|
| Memory Type |
Up to DDR4-2933 MT/s ECC depending on processor selection |
| DIMM Slots |
Sixteen (16) RDIMM or LRDIMM slots |
| Capacity |
2048GB (non-mirrored mode with 128GB DIMMs) |
| Physical |
|
| Height | Width | Depth |
3.45 inches (87.6 mm) x 17.14 inches (435.3 mm) x 20 inches (508 mm) |
| Environmental |
|
| Operating Temperature |
-5ºC to 55ºC (41ºF to 131ºF), NOTE: 105W CPU or less for 55ºC |
| Non-operating Temperature |
-40ºC to 70ºC (-40ºF to 158ºF) |
| Humidity |
95%, non-condensing at temperatures of 23ºC (73ºF) to 40ºC (104ºF) |
| Altitude |
-60 m to 1,800 m (-197 ft to 5,906 ft) without temperature derating, 3,900 m (12,795 ft) 40ºC |
| RoHS |
Compliant to RoHS Recast Directive 2011/65/EU |
| Safety Compliance |
|
| USA/CANADA |
CSA Certified to UL 60950-1 2nd Edition and CSA C22.2 No. 60950-1-07 2nd Edition |
| EUROPE |
CE mark to Low Voltage Directive 2014/35/EU and EN 62368-1 |
| INTERNATIONAL |
CB report and certificate to IEC 62368-1 |
