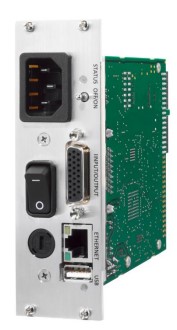

Kontron Compact shelf manager CML 3U x 8HP AC, Chassis Monitor and Control
The Control, Measurement and Data Logging system (CML) is designed to add remote control and monitoring functionality to electronic systems.
An integrated supervision system compares all measured voltages, currents, and temperatures with a minimum & maximum value. If values exceed the supervision thresholds the system can automatically be switched off.
Many industrial standard features are built in, like integrated Web Server, full control via SNMP protocol, 100BASEEthernet connection and free accessible digital in-/outputs and many more
Features:
-
3U x 8HP Compact Design
-
Programmable System Protection
-
6-Fan Intelligent Control
-
SNMP & Web-Based Management
-
Real-Time DSP Monitoring
Specifications:
| Form Factor |
3U x 8HP |
| System Connection |
2 mm high-density connector |
| Power Supply |
Internal auxiliary 5V power supply |
| Input Voltage |
AC input with fuse and main switch |
| Control Interfaces |
Ethernet (IEEE 802.3, 10BASE-T, 100BASE-TX), USB (galvanically isolated) |
| Monitoring & Control |
Programmable trip thresholds for voltage, current, power, and temperature |
| Fan Control |
Supports up to 6 fans with programmable speed |
| Temperature Measurement |
1-wire bus for up to 6 digital sensors |
| Digital Inputs/Outputs |
8 × TTL inputs, 8 × TTL outputs |
| Communication Protocols |
SNMP, embedded web server |
| Digital Signal Processor |
Real-time processing of all measured data |
| Part Number |
1H00004170 |
