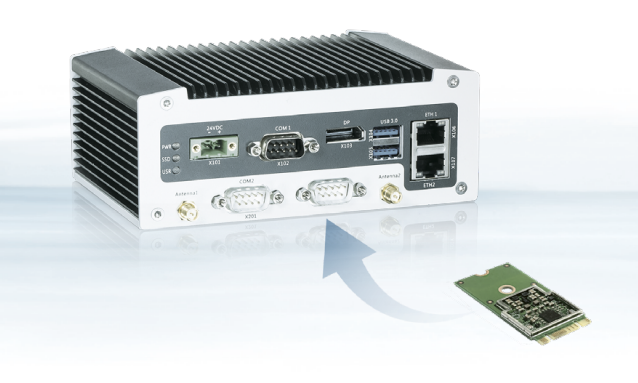

Kontron KBox A-203-AI-GC Embedded Industrial PC

Product Overview

The KBox A-203-AI-GC is a compact, fanless, and maintenance-free AI engine and IoT gateway designed for edge AI applications. It combines the Intel Atom® x7-E3950 processor with the Google Coral Edge TPU, enabling high-performance AI inference for visual applications at the edge. The device comes pre-installed with a Debian Linux image and Google Coral software packages, supporting TensorFlow Lite applications.

Its small footprint and standardized design make it ideal for industrial IoT deployments, providing multiple connectivity options including Ethernet, WiFi, LTE, serial ports, and optional fieldbus interfaces. Security features include an integrated security chip and Trusted Platform Module (TPM 2.0) for secure AI processing.

Key Features

• Edge AI-ready platform with Google Coral Edge TPU for accelerated AI inference

• Intel Atom x7-E3950 CPU (4 cores, 1.6 GHz base, 2.0 GHz turbo) for efficient processing

• Fanless and conduction-cooled for silent and maintenance-free operation

• Compact form factor: 150 × 58 × 100 mm, 1 kg weight

• Pre-installed Debian Linux image with TensorFlow Lite support

• Graphics support: Intel HD 500/505, 4K resolution @60 Hz

• Flexible connectivity: 2× GbE Ethernet (Wake-on-LAN), 2× USB 3.0, DisplayPort 1.2, serial ports (RS232/422/485), optional COM2 and fieldbus

• Storage options: microSD slot, up to 32 GB onboard flash, optional 2.5" SATA SSD

• Internal expansion: 2× miniPCIe slots for additional modules

• Security features: TPM 2.0, integrated security chip

• Mounting options: DIN rail, desktop, wall, cabinet

• Environmental tolerance: -20 °C to +60 °C operating, -40 °C to +85 °C storage, 93% humidity

• Power: 24 VDC ±20%, typical consumption 15 W

• Software support: Yocto Linux, TensorFlow Lite (C++/Python)

• Camera support: USB camera, v4l2 compatible
