Imagine a tiny computer that can run heavy AI models, stream video, and stay connected even where Wi-Fi is weak. The Kontron KBox R-101-TGL is an embedded box PC built for exactly that. It packs an 11th Gen Intel Core i7 processor, fanless cooling and built-in 5G, so you never lose power or speed. If your factory line, retail kiosk, or remote sensor needs reliable performance and instant connectivity, this box solves the problem.

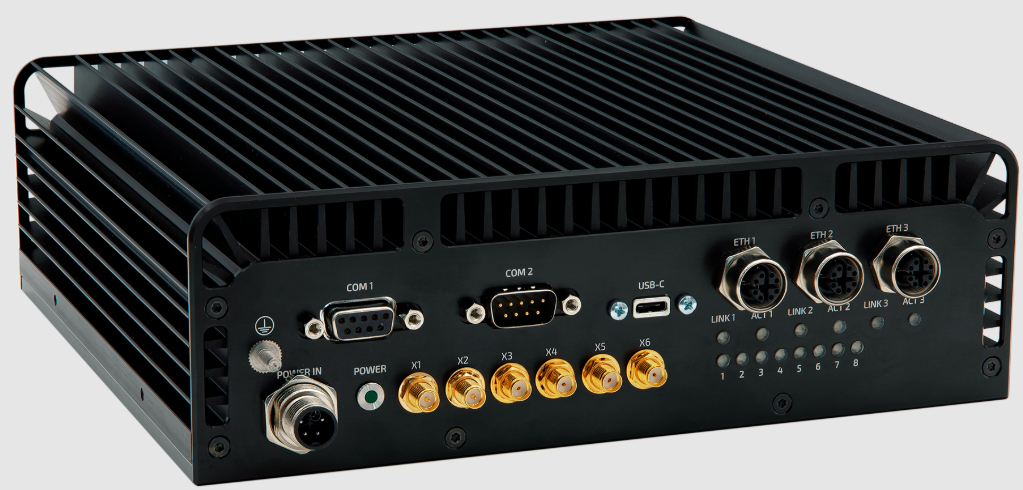

Kontron KBox R-101-TGL 5G Connectivity Embedded Box PC(11th Gen Core i7)
Many edge devices suffer from slow processors, limited storage and unreliable networks. That slows data collection and can cause costly downtime. The problem matters because every second of delay adds risk to safety, quality and profit. This Kontron box delivers a fast quad-core CPU, up to 32 GB of DDR4 memory, and multiple 5G/4G options, giving you a clear, ready-to-run solution that fits in a small metal case.
Key Features
- 11th Gen Intel Core i7-1185GRE (up to 4.4 GHz) or i5 option.
- DDR4-3200 MHz memory with ECC, up to 32 GB.
- Intel Iris Xe graphics, supports 8K resolution.
- Three 2.5 GbE ports with M12 X-coded connectors.
- USB-C front, two USB-2.0 rear, and isolated COM ports.
- Six SMA/QMA antenna cut-outs for flexible radio placement.
- 1 DisplayPort output, 1 M.2 Key M storage slot.
- Optional Wi-Fi 6E, Bluetooth 5.3, and 4G/5G modules.
- TPM 2.0 security chip for hardware encryption.
Specifications
| Processor |
|
| CPU |
11th Gen. Intel® Core™ i7-1185GRE or Intel® Core™ i5-1145GRE |
| Max Speed |
Quad-Core 1.8 GHz / Up to 4.4 GHz (Burst) |
| System Chipset |
Integrated |
| BIOS |
AMI® Aptio V5 |
| Memory |
|
| Memory Technology |
DDR4 3200 MHz with In-band ECC |
| Maximum Capacity |
Up to 32 GB |
| Memory Configuration |
1x Soldered Memory + 1x DDR4 SODIMM |
| Graphics |
|
| Graphics Controller |
Intel® Iris® Xe Graphics |
| Maximum Resolution |
7680 × 4320 @ 60 Hz |

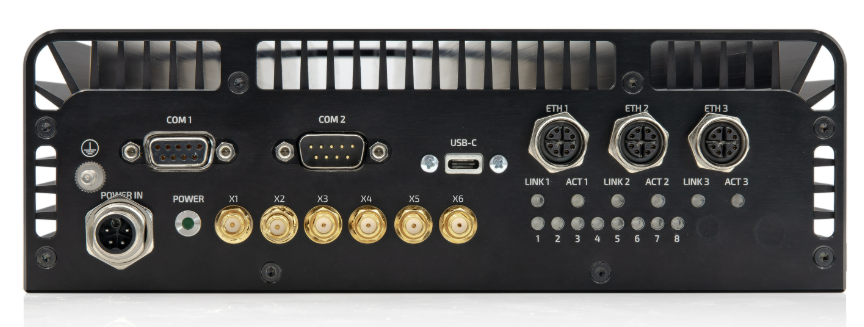

| Front Interfaces |
|
| USB |
1x USB Type-C |
| Ethernet |
3x 2.5GbE via M12 X-coded |
| Serial Ports |
2x Isolated COM Ports (1x RS-232, 1x RS-422/485) |
| LEDs |
1x Power LED, 8x User LEDs, Ethernet LEDs (3x LAN + 3x ACT) |
| Antenna Cut-Outs |
6x SMA/QMA |

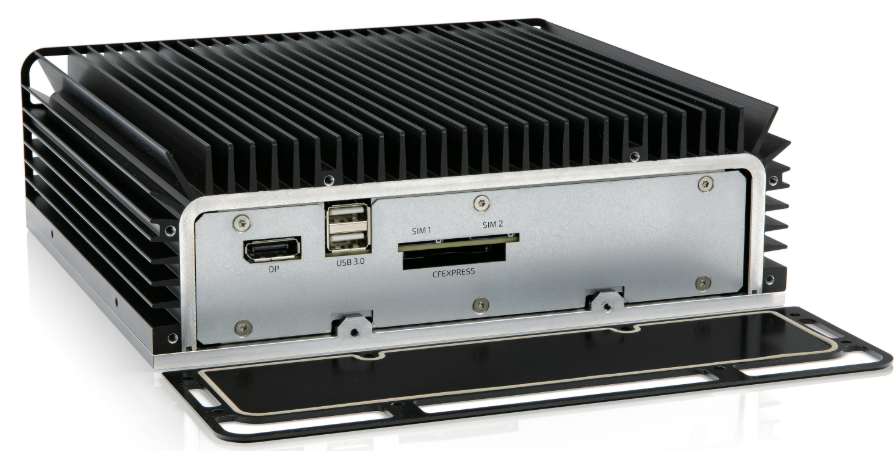

| Rear Interfaces |
|
| Display Output |
1x DisplayPort |
| USB |
2x USB 2.0 |
| Storage |
|
| M.2 Storage |
1x M.2 Key M (2230/2242/2280), PCIe & SATA |
| CFExpress |
1x CFExpress Slot (Rear, Behind Cover Plate) |
| Expansion |
|
| M.2 Key E |
1x M.2 Key E (2230/2242/3030/3042) for Wi-Fi |
| M.2 Key B |
1x M.2 Key B (2242/3042/3052) with 2x Micro SIM for 4G/5G |
| Optional Interfaces |
|
| Wireless Connectivity |
Wi-Fi 6E / Bluetooth 5.3 |
| Cellular |
4G/LTE or 5G |
| Internal Expansion |
Internal Expansion Connector for Custom Expansion |
| Software |
|
| Operating System Support |
Debian Linux |
| Security |
|
| Security Chip |
TPM 2.0 |
| Power |
|
| Input Voltage |
24 VDC to 110 VDC Nominal (EN50155), 10 ms Hold-Up Time (Class S2) |
| Mechanical |
|
| Construction |
Black Anodized Aluminium |
| Mounting |
Wall Mount, Optional 19-inch Rack Mount |
| Dimensions (W × H × D) |
220 × 70 × 200 mm |
| Weight |
Approx. 3.1 kg |
| Environmental |
|
| Cooling |
Fanless |
| Operating Temperature |
-40°C to +70°C, +85°C for 10 Minutes (EN50155 OT4, ST1) |
| Relative Humidity |
95% at +25°C to +55°C (EN50155) |
| Shock |
30 ms @ 50 m/s² (EN 61373:2010 Cat.1 Class B) |
| Vibration |
10 min @ 1.01 m/s² (Functional), 5 h @ 5.72 m/s² (Long-Life), EN 61373:2010 Cat.1 Class B |
| IP Rating |
IP54 |
| Certifications |
|
| Compliance |
EN50155 |
| Certifications |
CE, FCC |
