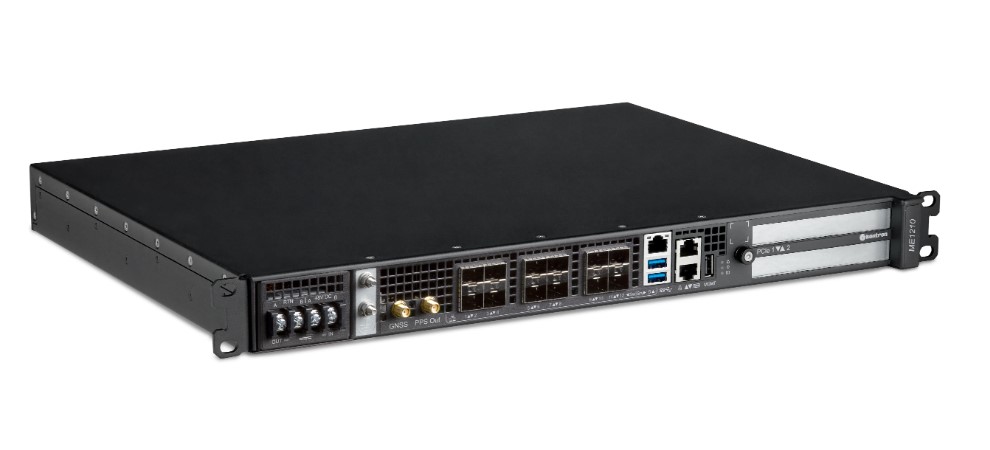

Kontron ME1210, Intel Xeon D-2100 1U High Performance Edge Server
The Kontron ME1210 is a 1U high-performance edge server designed for telecom, networking, and demanding edge computing environments. It uses Intel Xeon D-2100 processors with Skylake architecture and supports Intel QuickAssist Technology (QAT), Intel AVX-512, and Intel Virtualization Technology for efficient processing and virtualization workloads.
The server supports up to 512GB of DDR4 memory through eight DIMM sockets and four memory channels running at up to 2667 MHz. Storage is provided through two M.2 slots supporting SATA or NVMe drives, with RAID 1 support for data redundancy.
For high-speed networking, the ME1210 provides flexible SFP28/SFP+ configurations, including up to 25GbE connectivity, along with integrated 10GbE connections through the Xeon D-2100 X722 controller. It also supports advanced timing and synchronization features such as SyncE and PTP.
Designed for telecom and edge deployments, the server supports GNSS input, 1PPS output, Master and Boundary Clock modes, and an optional OCXO for extended hold-over requirements. Its compact 1U design fits standard 19-inch racks, while the -40°C to 65°C operating temperature range supports demanding environments.
Key Features
-
Intel Xeon D-2100 processor with Skylake architecture
-
Up to 16 cores and 110W processor options
-
Up to 512GB DDR4 memory at 2667 MHz
-
2x M.2 SATA or NVMe storage slots with RAID 1
-
Up to 12x SFP28/SFP+ high-speed networking ports
-
SyncE and PTP support with telecom profile performance
-
2x PCIe Gen3 x16 expansion slots with 75W per slot
-
Redfish and IPMI v2.0 remote management
-
TPM 2.0, Secure Boot and Failsafe Boot
-
1U, 355mm-deep rackmount design with -40°C to 65°C operation
Specifications
| Processor |
Intel® Xeon® D-2100 Processor |
| |
Skylake Architecture; Intel® QuickAssist Technology (Intel® QAT); Intel® Advanced Vector
Extensions 512 (Intel® AVX-512); Built-In Intel® Virtualization Technology
|
| Memory |
8x DDR4 DIMM sockets, 4 channels @ 2667 MHz |
| |
Supports up to 512GB |
| Storage |
2x M.2-2230/2280/22110 |
| |
Up to 960GB |
| |
SATA or NVMe |
| |
Support RAID 1 |
| Networking (Options) |
• Integrated Microchip switch (VSC7556)
• Total 12 SFP28/SFP+ Ports (2x 25G + 6x 10G or
12x 10G firmware configurations)
• 4 Internal 10GE connections to Xeon D-2100
integrated X722 controller |
| |
• Xeon D-2100 integrated X722 controller
• 4X Direct SFP+ port connection |
| Timing and Synchronization |
SyncE & PTP with Telecom profile performance |
| |
Master and Boundary Clock modes |
| |
Optional advanced OCXO to support 4 hour Hold-Over requirement |
| |
Connector: 1x GNSS input (optional) and 1PPS output |
| |
Hosted in integrated Microchip switch and telecom PLL |
| |
Xeon D-2100 integrated X722 controller PTP support |
| Local Diagnostic Ports |
1x GE Copper Interface (shared Management port) (RJ-45) |
| |
1x Serial Console Port (RJ-45) |
| |
4x Dry contact alarm inputs (RJ-45) |
| |
2x USB 3.0 Interface to Xeon D-2100 |
| |
1x USB 2.0 Interface to BMC |
| PCIe Expansion |
2x Full Height, ¾ Length PCIe slots with x16 Gen3 lanes |
| |
75W power per PCIe slots |
| Management |
Independent management network support Redfish API and IPMI v2.0 |
| |
Secure Remote Management Capabilities (Encrypted firmware, boot, storage,
Secure Boot, Failsafe Boot)
|
| |
Using TPM version 2.0 |
| |
Remote access using KVM & Virtual Media |
| |
In-service Firmware Upgrade capability |
| Environmental |
Operating temperature: -40°C to 65°C |
| Form Factor |
1U x 13.5in. (355mm) deep |
| |
Designed to be mounted in a 19” standard rack |
| Power Input |
-48V DC (-40VDC to -57VDC) |
| |
AC 115/230V 50/60Hz (-5C°C to 65°C) |
