Need a reliable way to test 4K video signals without guessing? The Kramer Electronics 860 is a wired test signal generator that lets you create and analyze crystal-clear 4096 2160 pixel video. It solves the frustration of blurry or out-of-spec displays, so you can trust every broadcast, conference or streaming setup. If you work with HDCP-protected content, this unit gives you the confidence to verify compliance before you go live.

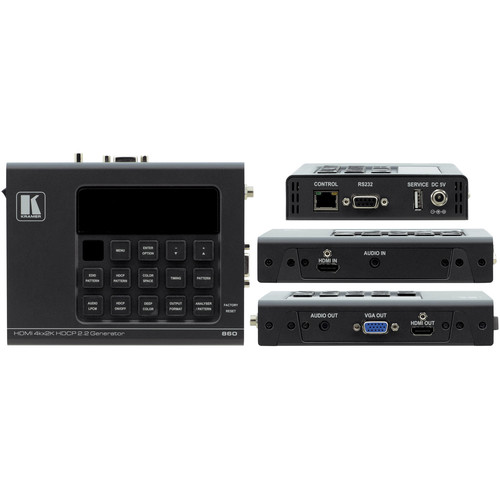

Kramer Electronics 860, 4096 x 2160 pixels, Wired, Black, HDCP
Many studios struggle with hidden signal errors that only appear on a final screen. Those errors can cause costly re-edits or lost audience trust. The Kramer 860 removes that risk by generating exact 4K test patterns and checking HDCP 2.2 compliance in real time. It gives you a clear, repeatable method to validate every link in your video chain, from source to display.
Key Features
- 4K resolution support up to 4096 x 2160 pixels.
- HDCP 2.2 compliance for protected content.
- HDMI input and output (19-pin Type A).
- VGA output for legacy displays.
- Audio line-in and line-out (3.5 mm stereo).
- Network port (RJ-45) for remote management.
- Serial port (DB-9) for legacy control.
- USB Type-A for firmware updates.
- DC 5 V low-voltage power with included adapter.
- Operating temperature from 32 F to 104 F.
- Humidity tolerance 20-90 % non-condensing.

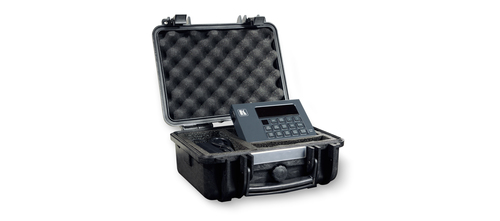

- Includes remote control for easy adjustments.
Specifications
|
Studio & Production
Equipment
|
|
| Type |
AV test signal generator / analyzer |
| Features |
4K resolution support, HDCP 2.2 compliant |
| Header |
|
| Product Line |
Kramer |
| Dimensions & Weight |
|
| Height |
1.2 in |
| Width |
6.5 in |
| Depth |
5.2 in |
| Weight |
28.22 oz |
| Environmental Parameters |
|
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
104 °F |
| Humidity Range Operating |
20 - 90% (non-condensing) |
| Kit Content |
|
| Kit Content |
(1) × power adapter ¦ (1) × remote control |
| General |
|
| Depth |
5.2 in |
| Width |
6.5 in |
| Weight |
28.22 oz |
| Type |
AV test signal generator / analyzer |
| Height |
1.2 in |

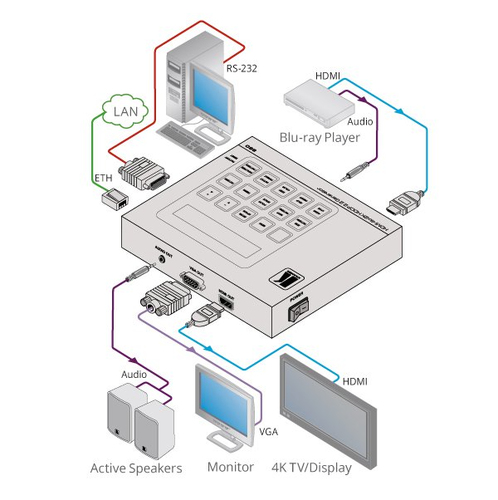

| Terminals |
|
| Terminals |
(1) × HDMI output - 19 pin HDMI Type A, (1) × HDMI input - 19 pin HDMI Type A ,
(1) × audio line-in - mini-phone stereo 3.5 mm, (1) × audio line-out - mini-phone stereo 3.5 mm,
(1) × VGA output - 15 pin HD D-Sub (HD-15), (1) × network - RJ-45, (1) × serial - 9 pin D-Sub (DB-9),
(1) × USB - 4 pin USB Type A
|
| Power |
|
| Low Voltage Power |
DC 5 V |
