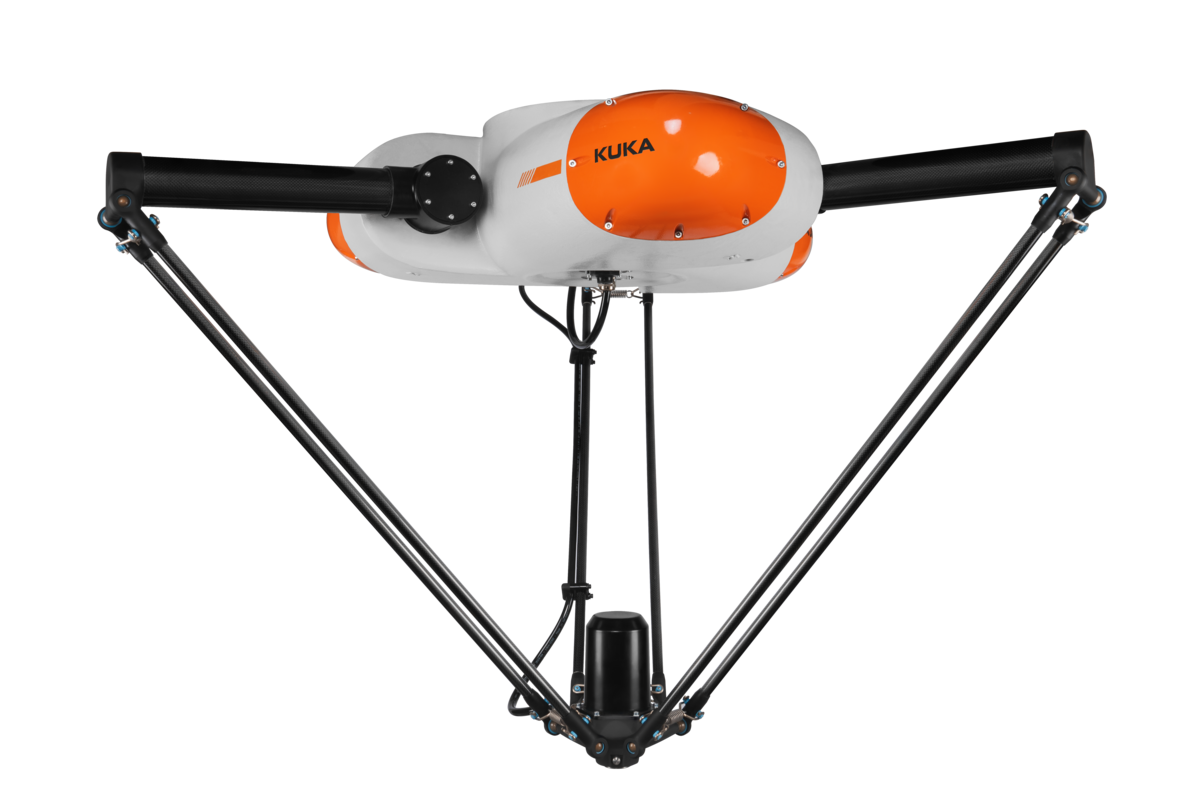

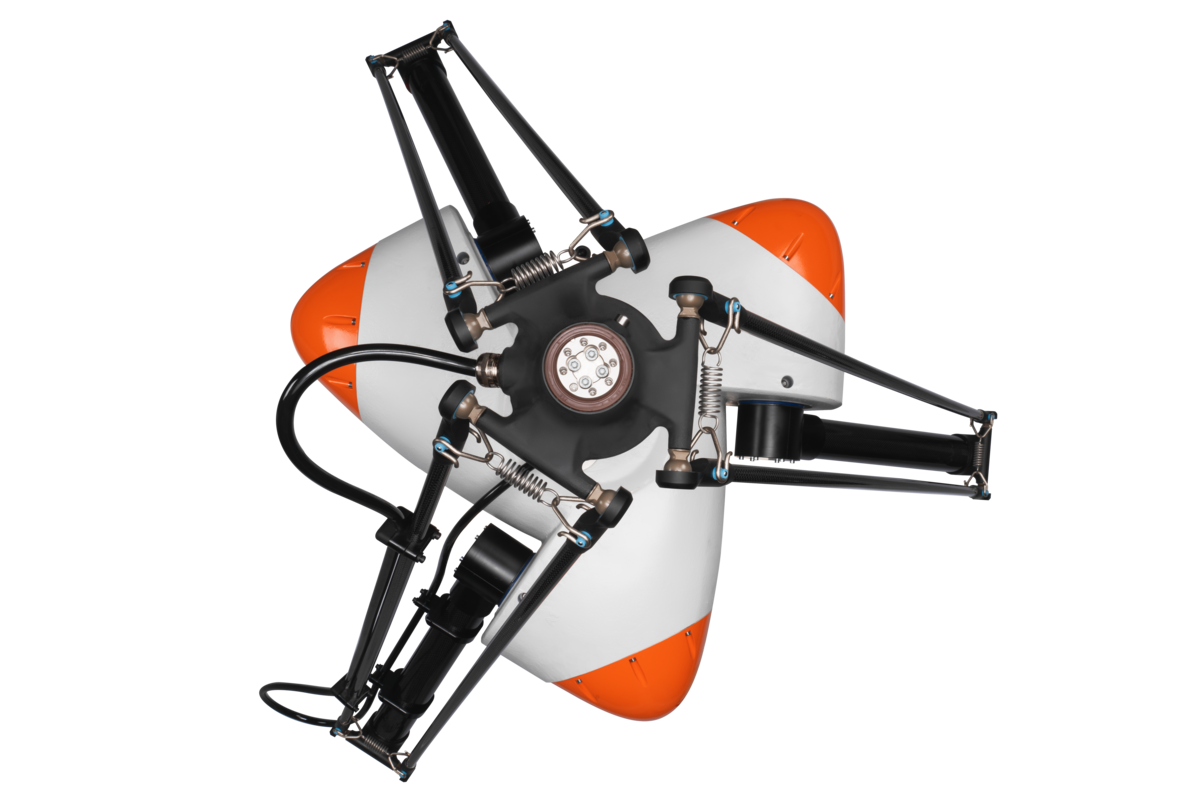

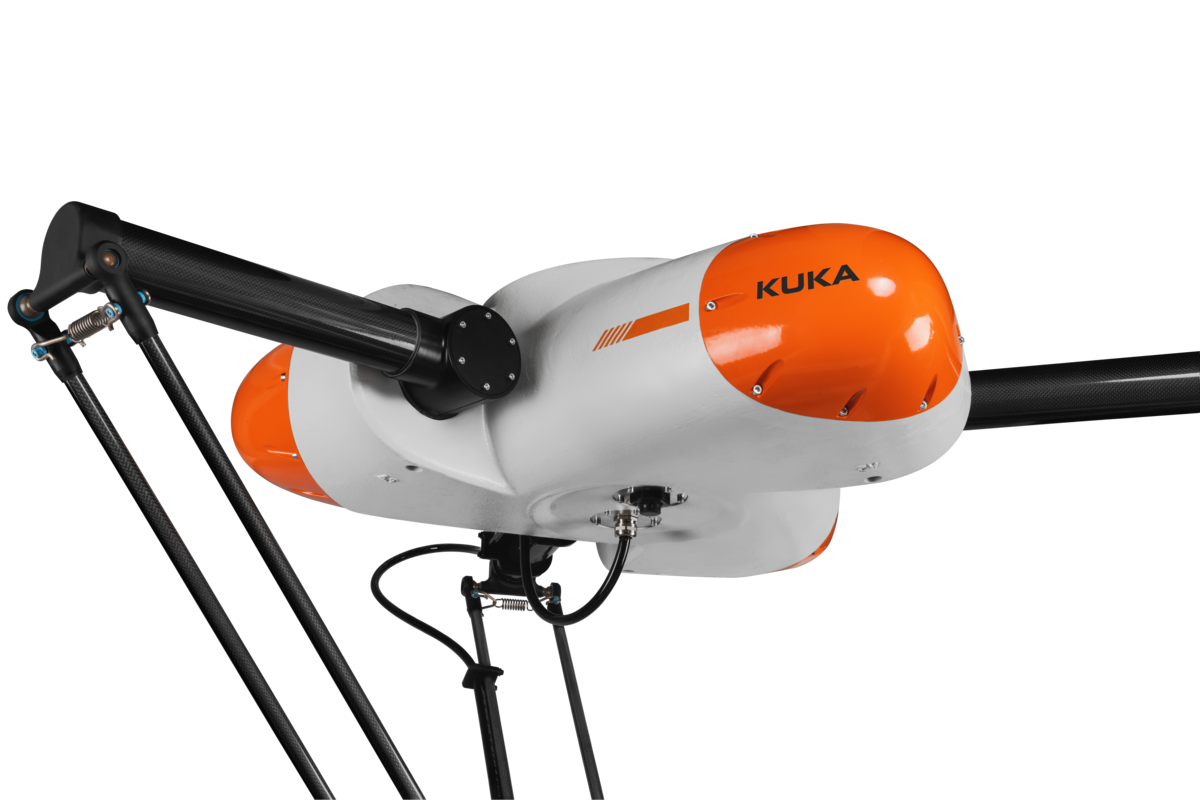

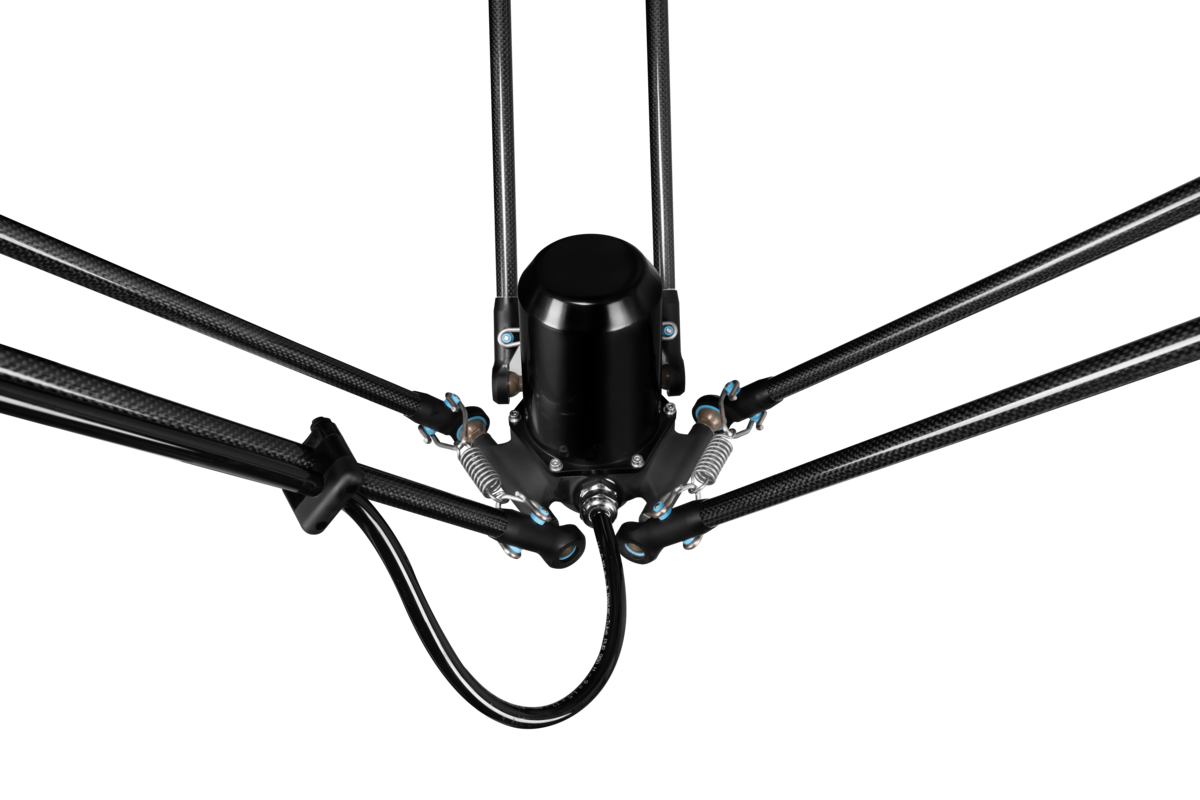

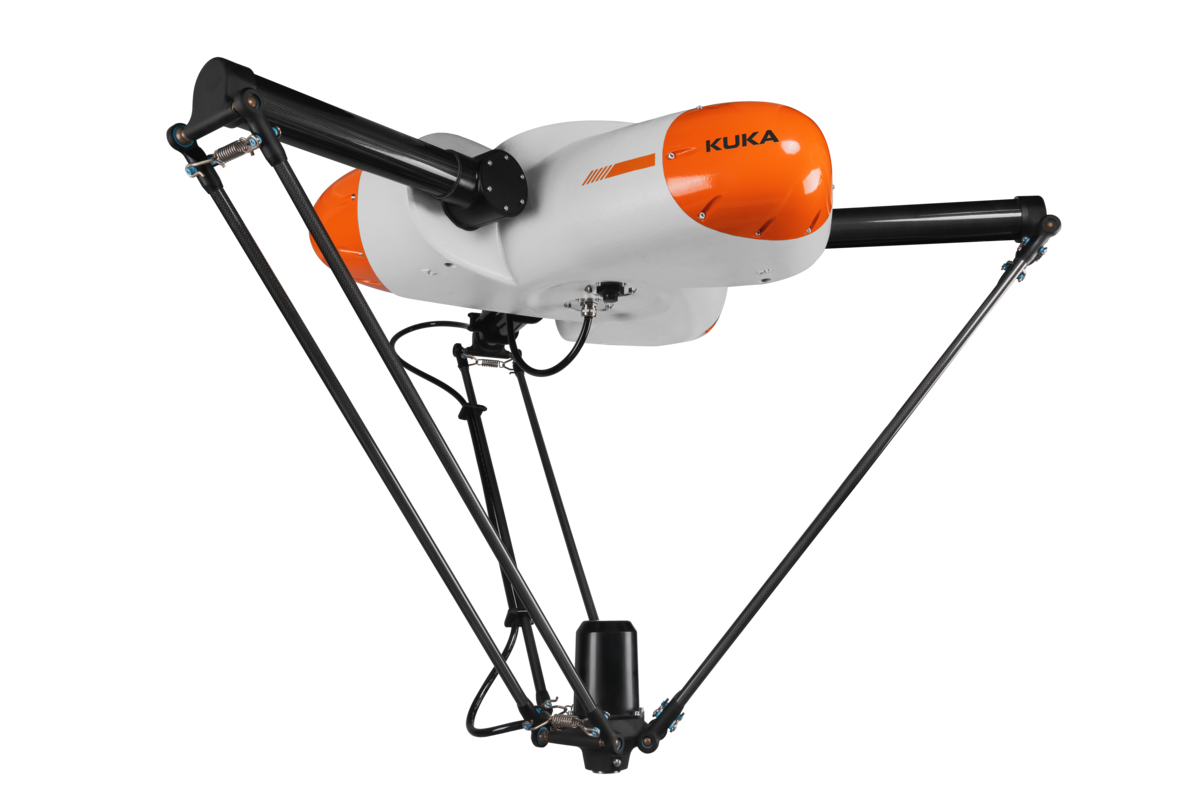

KUKA KR 3 D1200 Delta Robot

Tired of slow pick-and-place lines that waste time and money? The KUKA KR 3 D1200 Delta Robot is a fast, ceiling-mounted robot that moves parts quickly and precisely. It is built for small-to-medium payloads in factories that need high speed and repeatable motion. If your line struggles with bottlenecks, this robot can clear them and keep production flowing.

KUKA KR 3 D1200 Delta Robot

The main problem many manufacturers face is a lack of speed in handling light components. Slow handling reduces output and raises labor costs. This matters because every minute of delay adds to the bottom line. The KUKA KR 3 D1200 Delta Robot solves the issue with a 350 mm reach, 6 kg maximum payload and 0.05 mm repeatability. Its four-axis design and high-speed motors give you a clear, reliable solution. It integrates with the KR C5 micro controller, allowing easy programming and seamless connection to existing PLCs. The robot works from 0 C to 45 C, so it stays reliable in most shop floors.

Benefits

• Higher line speed reduces labor costs and increases output.
• Precise repeatability improves product quality and reduces waste.
• Ceiling mounting saves valuable floor space.
• IP67 rating protects the robot in dusty or wet environments.
• Easy integration with existing control systems speeds up installation.

Key Features

• Maximum payload of 6 kg, rated payload of 3 kg.
• Reach of 350 mm and overall diameter of 1200 mm.
• Four independent axes with 355 rotation on the fourth axis.
• Axis speeds of 600/s for the first three axes and 1091/s for the fourth.
• Pose repeatability of 0.05 mm (ISO 9283).

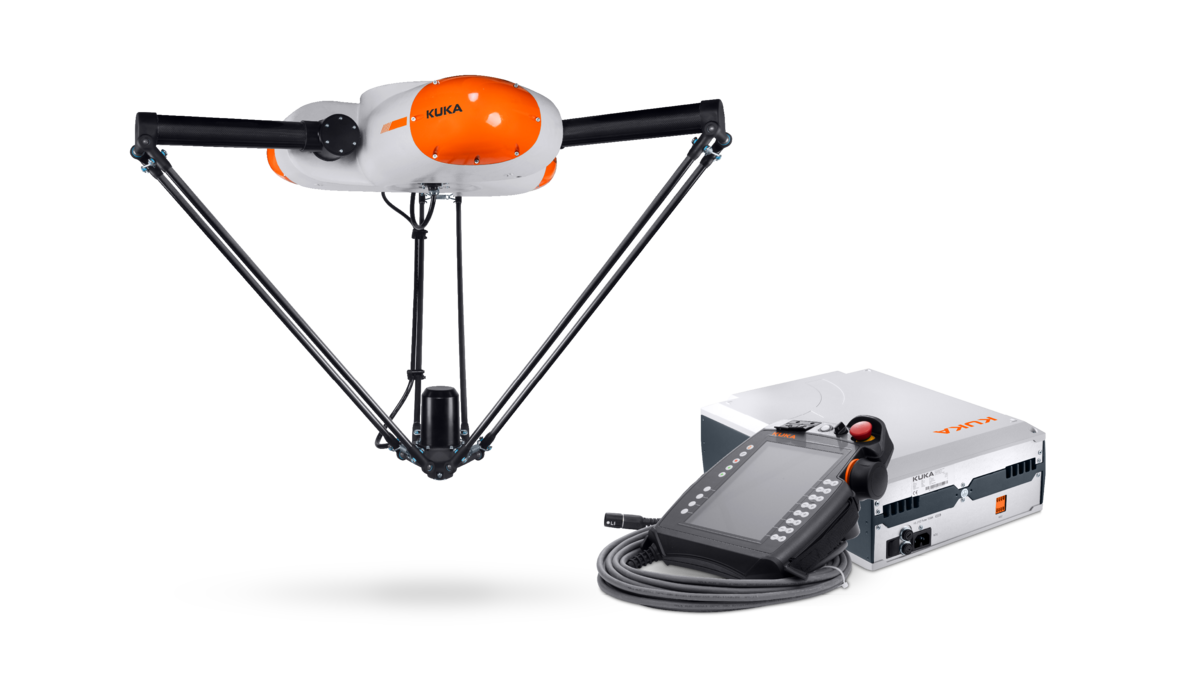

• KR C5 micro controller for simple programming.
• Operating temperature range from 0 C to 45 C.
• Storage temperature range from -25 C to 55 C.
• IP67 protection for the body and the wrist.
• Ceiling mounting option for flexible layout design.
