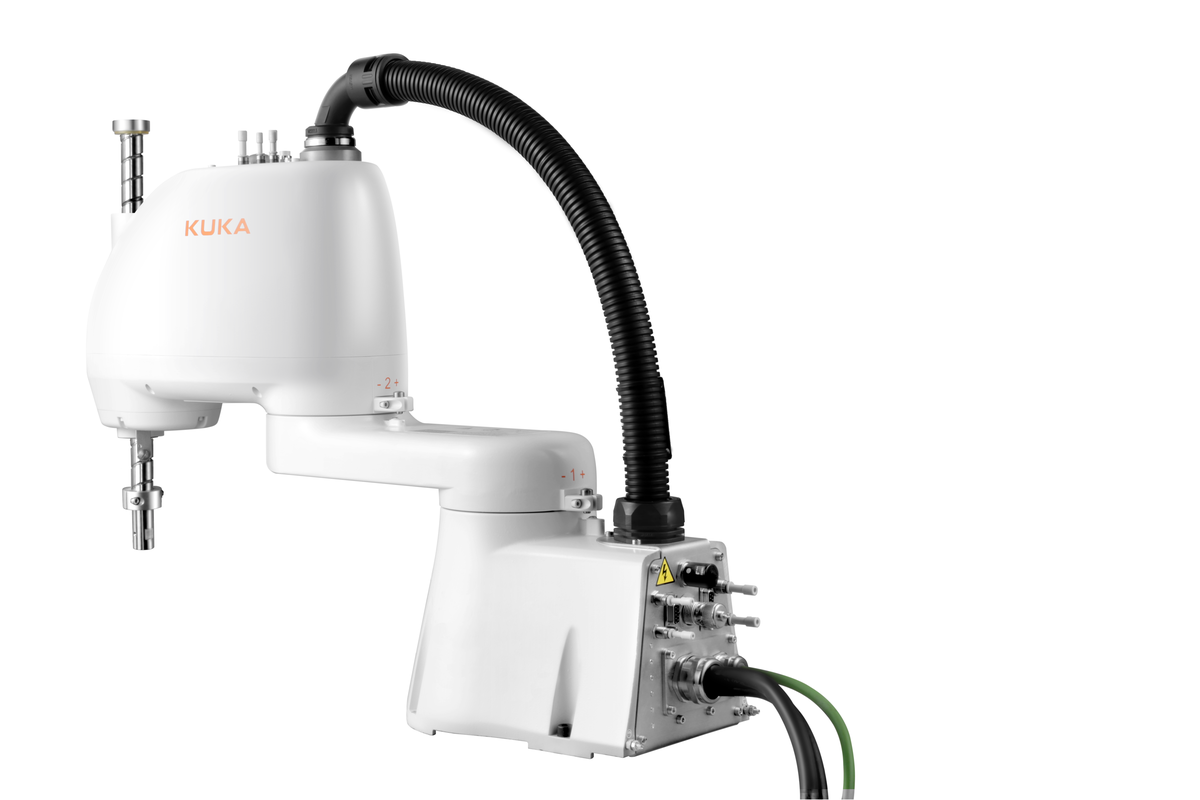

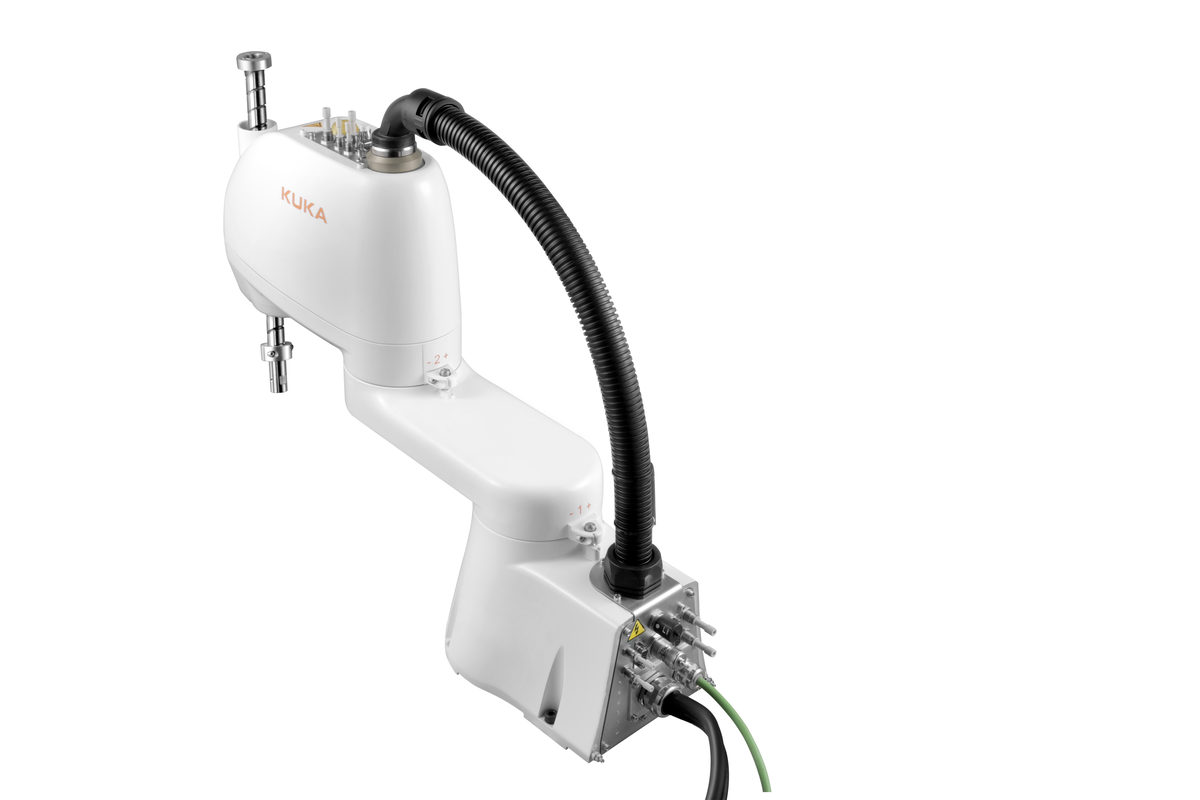

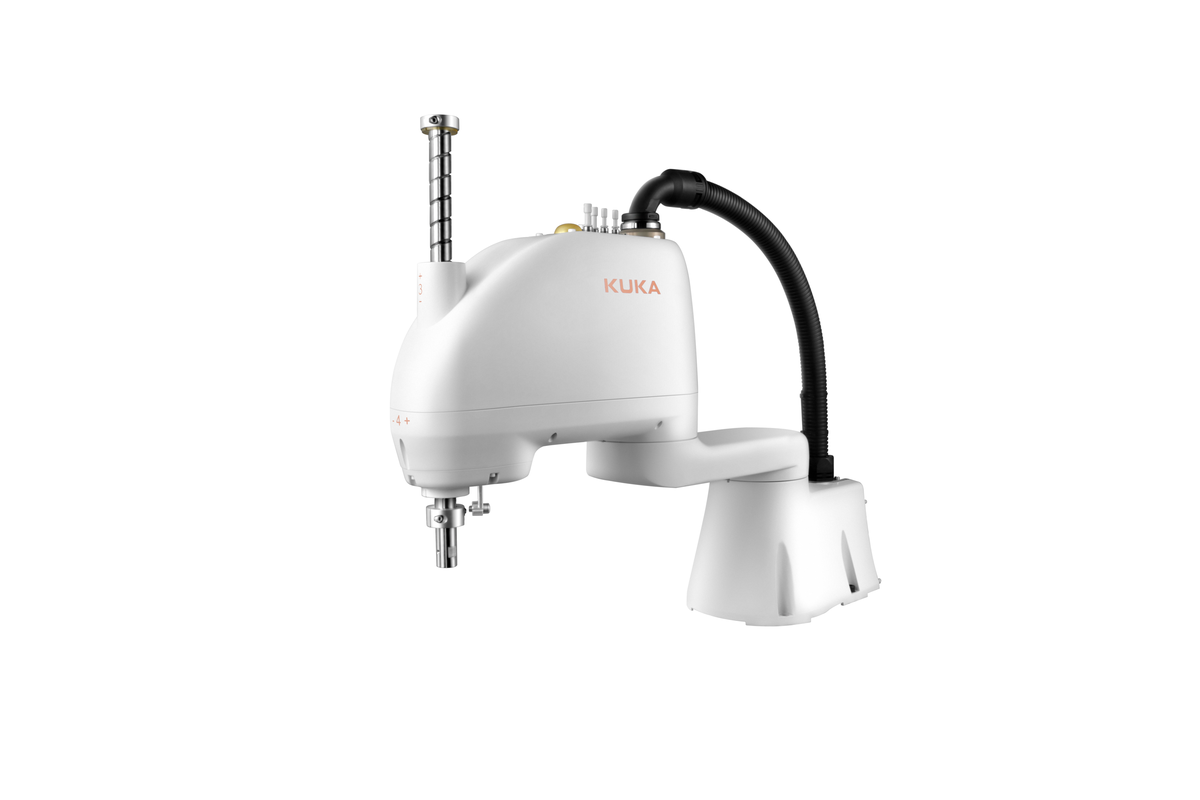

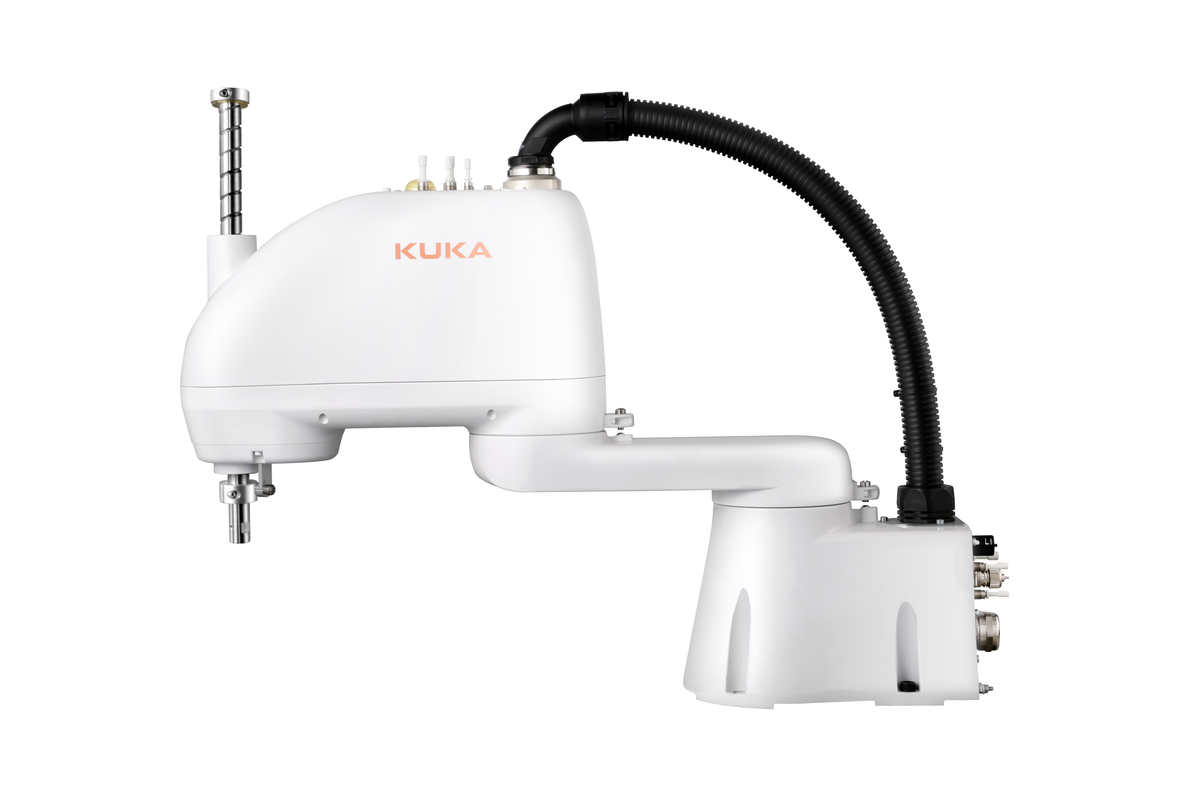

Kuka KR 6 R500 Z200-2 SCARA Industrial Robot

Many factories struggle with slow, inconsistent pick-and-place work that slows down production and raises labor costs. When a line cannot keep up, orders are delayed and profit drops. The Kuka KR 6 R500 Z200-2 SCARA Industrial Robot solves this by delivering fast, repeatable motion for small-to-medium payloads. It gives you a reliable, automated hand that works 24/7, keeping your schedule on track and your budget in control.

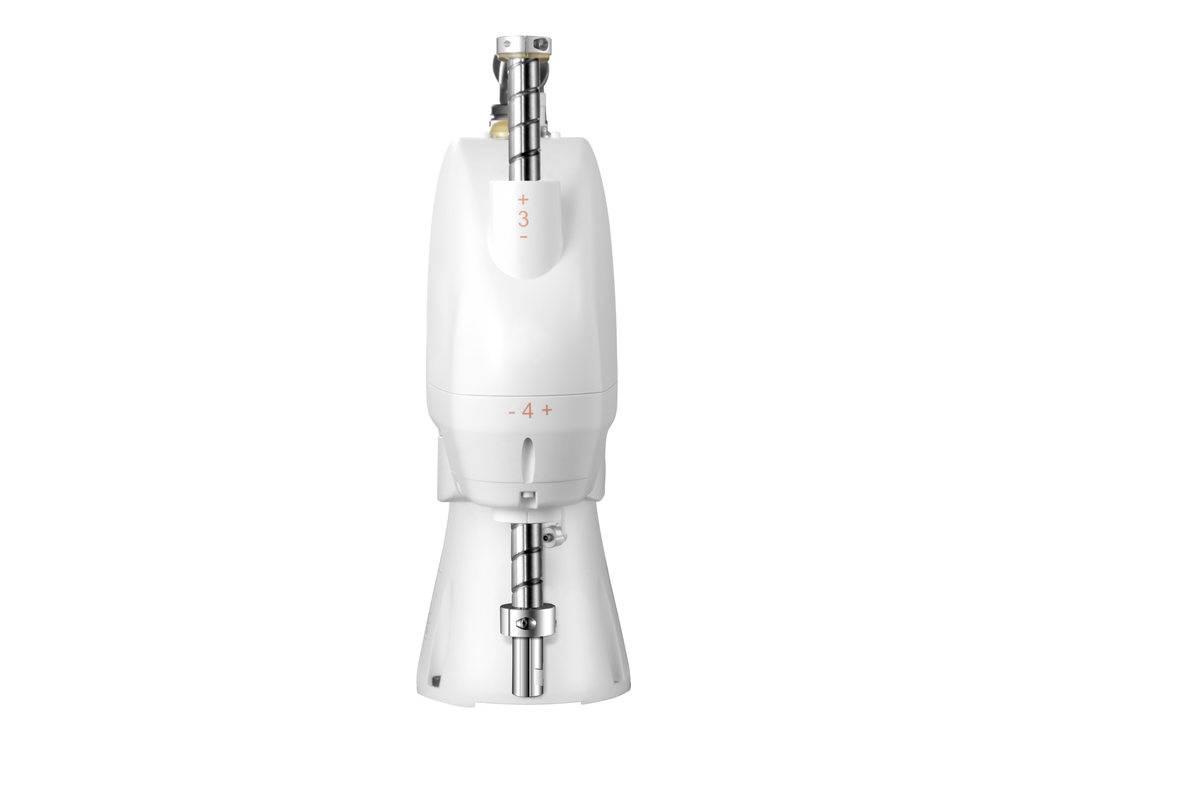

Kuka KR 6 R500 Z200-2 SCARA Industrial Robot with Kuka

Imagine a robot that can reach half a meter, lift up to six kilograms, and repeat a move with a tolerance of just two hundredths of a millimeter. That is the Kuka KR 6 R500 Z200-2 SCARA Industrial Robot. It is built for assembly, handling, cutting, inspection and packaging tasks. If you are losing money because workers tire or make mistakes, this robot gives you speed, precision and the freedom to focus on higher value work. Kukas proven controller makes integration simple and reliable.

Benefits

• Higher throughput - the robot moves faster than a human hand, reducing cycle time.
• Consistent quality - repeatability of 0.02 mm eliminates variation in each part.
• Lower labor cost - one robot can replace several operators on repetitive tasks.
• Easy integration - Kuka controller works with common PLC and vision systems.
• Flexibility - four axes and a 500 mm reach let you adapt to many applications.

Key Features

• Maximum payload 6 kg, rated payload 3 kg.
• Reach of 500 mm for wide work envelopes.
• Four axes with 132, 145, and 355 rotation.
• Speed up to 420/s (A1), 720/s (A2), 2000/s (A4).
• Pose repeatability 0.02 mm (ISO 9283).

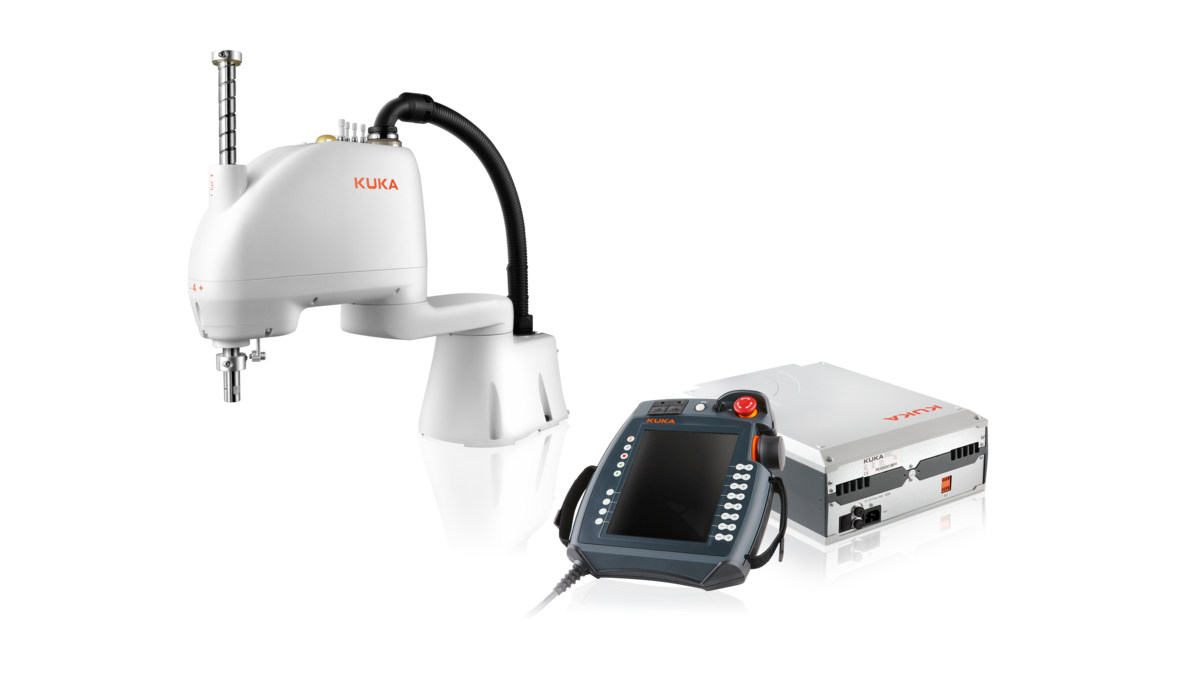

• KR C5 micro-2 controller for fast programming.
• Floor mounting for stable operation.
• IP20 protection rating suitable for clean indoor environments.
• Operating temperature 5 C to 40 C, storage -25 C to 55 C.
• Designed for assembly, cutting, handling, inspection, palletizing and pick-and-place.

Specification
