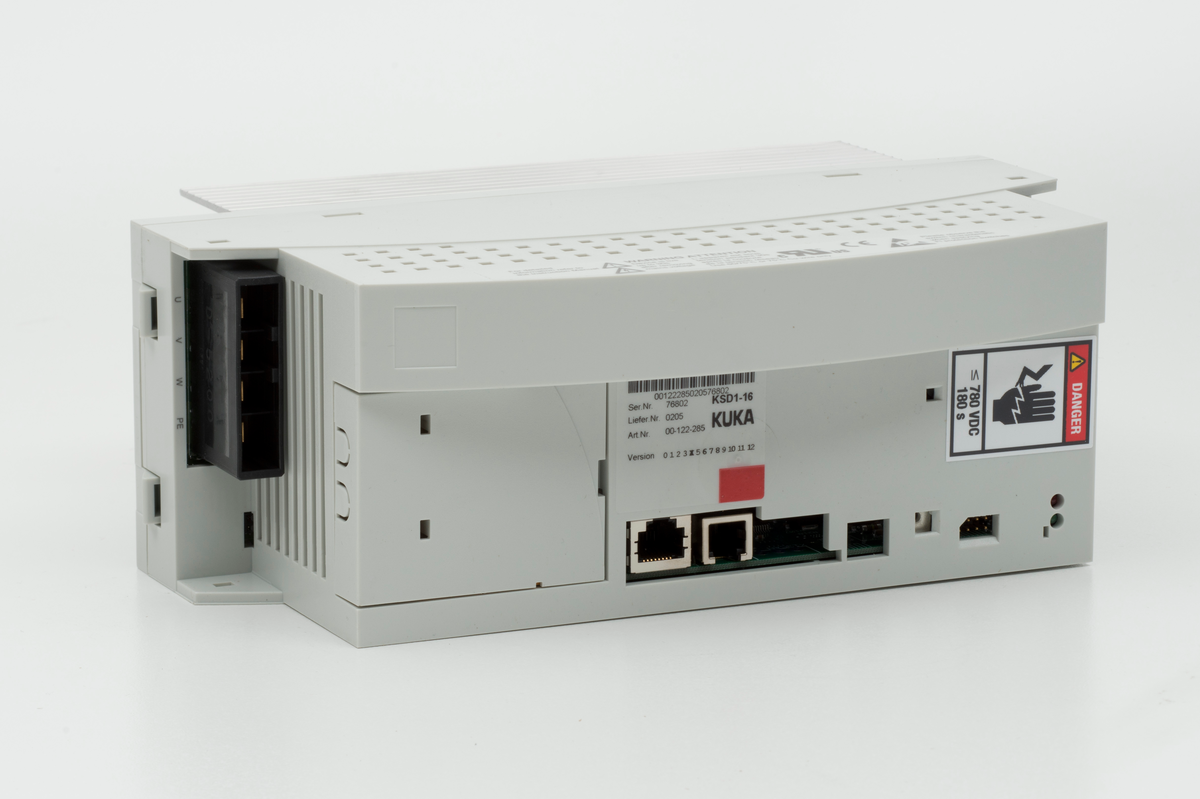

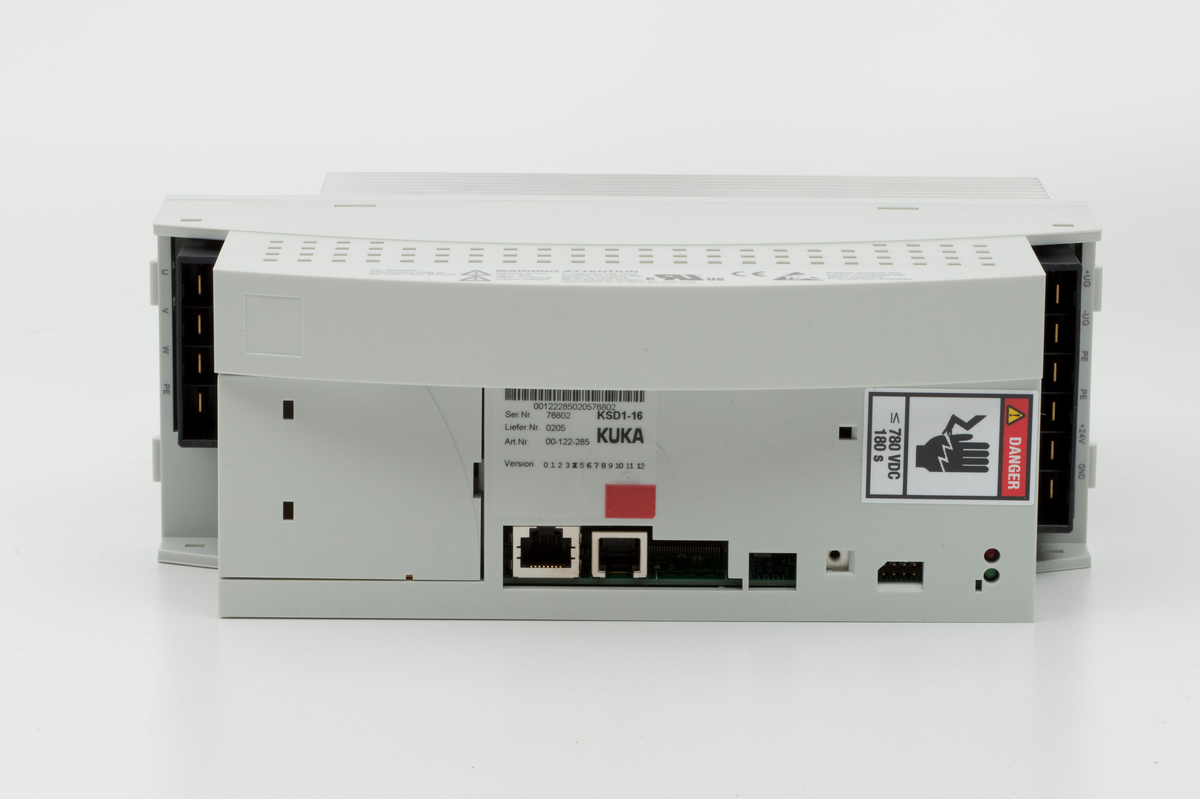

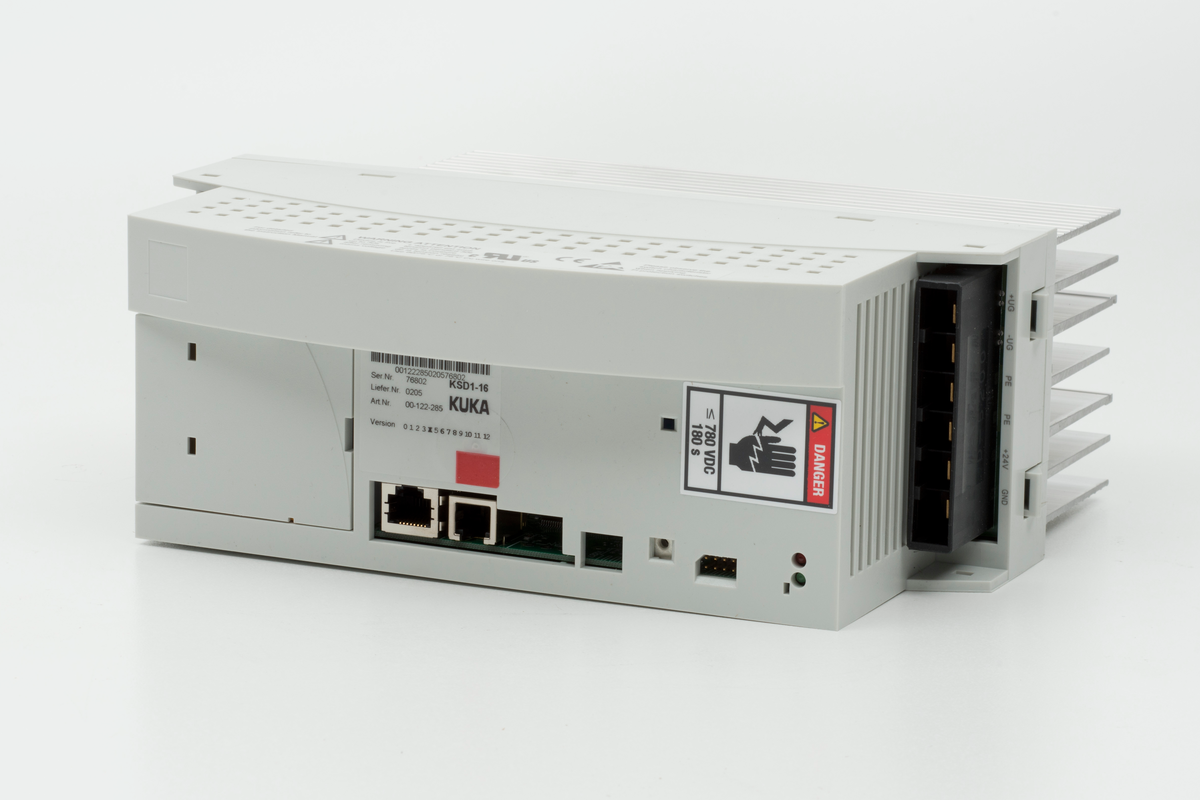

KUKA KSD1-16 Servo Module Controller

Imagine a robot arm that stops moving because the controller cannot keep up with fast commands. The KUKA KSD1-16 Servo Module Controller fixes that problem. It is a digital servo controller made for KUKA robots and other industrial machines. You need it when you want reliable motion, precise torque, and safe operation in a busy factory floor.

KUKA KSD1-16 Servo Module Controller

Many automation systems suffer from lag or overload when the servo module cannot handle high current peaks. This leads to missed steps, lower productivity, and costly downtime. The KUKA KSD1-16 solves the issue by delivering up to 16 A peak current and supporting EtherCAT communication. With a wide voltage range (200-480 V) and air-cooled design, it stays stable even in demanding environments. The result is smooth motion, accurate positioning, and fewer interruptions for you.

Benefits

• Higher peak current lets you drive larger loads without stalling.
• EtherCAT interface gives fast, deterministic data exchange for tight control loops.
• Compact panel-mount size saves space in crowded control cabinets.
• IP20 rating protects the electronics from dust in typical industrial settings.
• UL certification provides confidence in safety and compliance.

Usages

The controller fits well in assembly lines where robots pick and place parts at high speed. It is also ideal for CNC machines that need precise spindle control. In packaging plants, the module can manage conveyors and palletizers that require quick start-stop cycles. Any system that uses a three-phase servo motor and needs reliable digital control can benefit from the KUKA KSD1-16. Its air-cooled design works in temperature ranges from 0 C to 50 C, making it suitable for most factory floors.

Key Features

• Rated output current: 8 A for continuous operation.
• Peak output current: 16 A for short bursts.
• Supply voltage range: 200 V to 480 V.
• Digital servo control type for precise motion.
• EtherCAT communication for fast network integration.
• Encoder interface for accurate feedback.
• Three-phase power architecture.

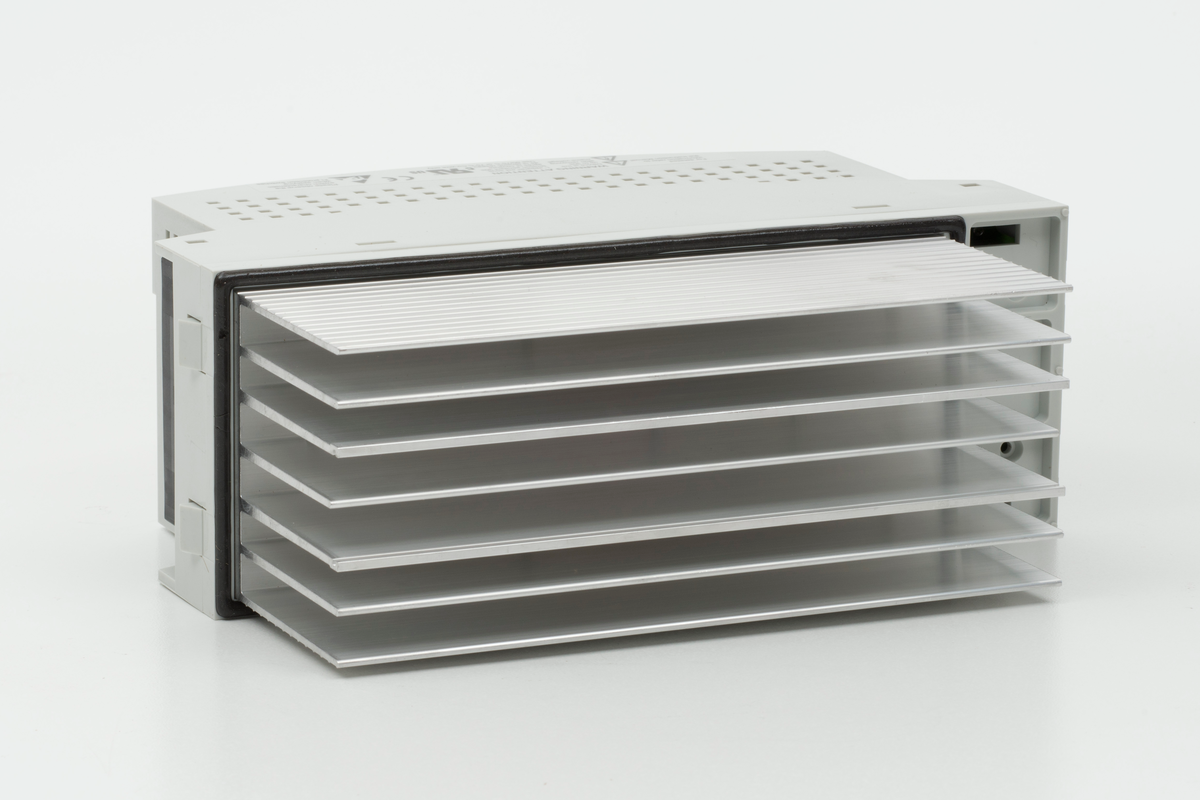

• Air-cooled system eliminates the need for liquid cooling.
• Panel mounting dimensions: approx. 50 mm 300 mm 200 mm.
• IP20 protection class suitable for industrial environments.

Specifications
