The struggle to find an edge-computing platform that can handle heavy AI workloads, survive harsh industrial sites and still fit into tight spaces ends here - the Lanner EAI-I731A Intel Core 2.5 GbE Industrial Edge AI Computer delivers raw processing power, rugged reliability and flexible connectivity, so you can deploy intelligent solutions without compromise.

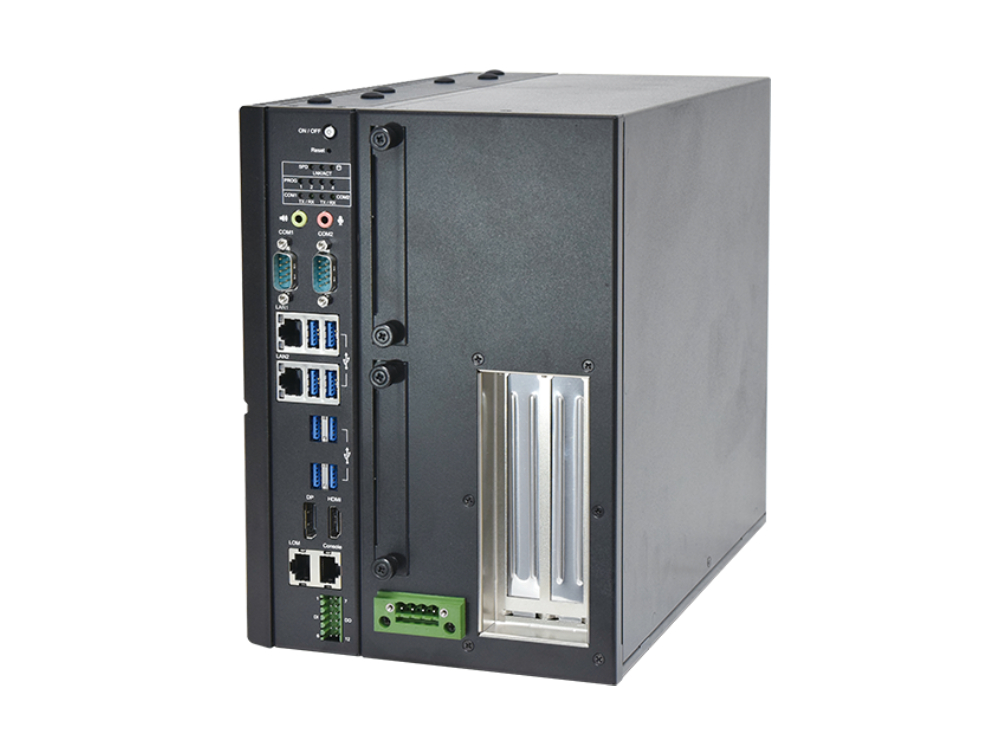

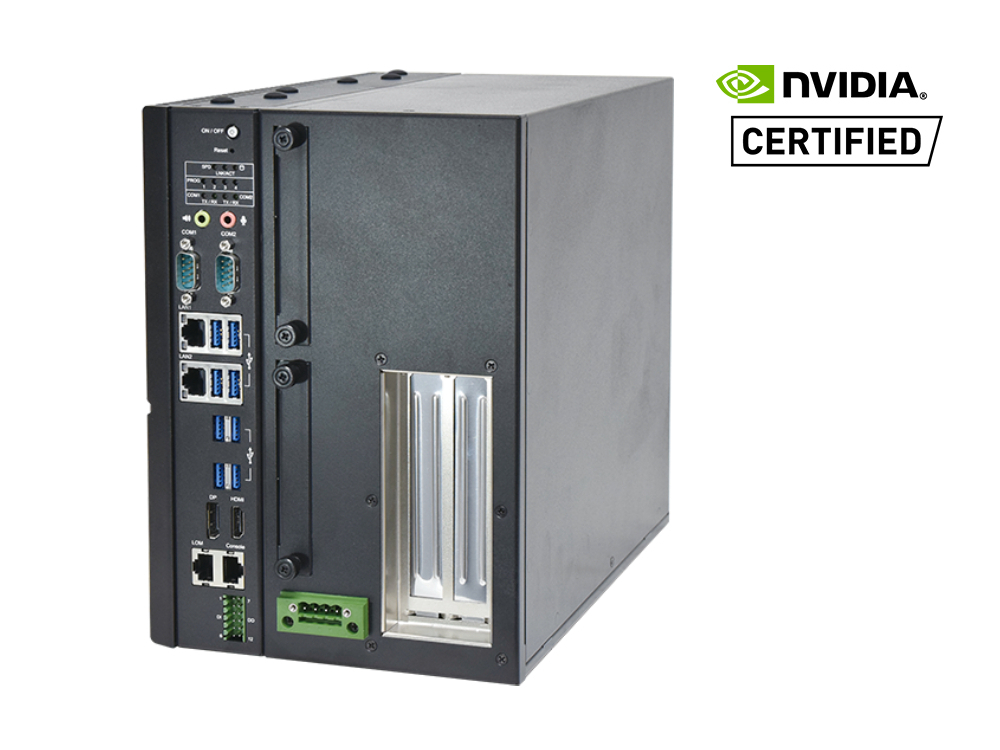

Lanner EAI-I731A Intel Core 2.5 GbE Industrial Edge AI Computer
Industrial operators often face latency, bandwidth limits and unreliable network links that cripple cloud-centric AI. Those delays increase downtime and raise costs. The Lanner EAI-I731A brings compute to the source, cutting latency to milliseconds, reducing bandwidth usage and ensuring continuous operation even when connectivity drops. Its high-performance Intel Core Series 2 CPUs, up to 96 GB DDR5 memory and 2.5 GbE networking give you the speed and resilience needed for mission-critical AI at the edge.
Key Features of Lanner EAI-I731A Intel Core 2.5 GbE Industrial Edge AI Computer
- Model: EAI-I731A. This identifies the specific unit in Lanner’s industrial lineup.
- CPU: Intel® Core™ Series 2 (Bartlett Lake-S) and 14th/13th/12th Gen Core™ Processors. Provides high-performance cores for AI inference and multitasking.
- Memory Technology: 5600 MHz DDR5 ECC / Non-ECC. Delivers fast, error-checked memory for reliable data handling.
- Maximum Memory Capacity: Up to 96 GB. Allows large models and datasets to reside locally.
- Ethernet Interface: 2 x 2.5 GbE RJ45. Supports high-speed wired networking for rapid data transfer.
- Storage Type: SATA III. Enables fast, removable 2.5″ HDD/SSD storage for easy upgrades.
- PCIe Slots: 1 x PCIe x16 Gen 4, 1 x PCIe x4 Gen 3. Offers ample bandwidth for GPU, FPGA or additional I/O cards.
- Power Supply: 300 W. Supplies sufficient power for demanding processors and expansion cards.
- Input Voltage: 12/24 VDC. Flexible power options to match industrial power rails.
Specifications
|
Platform
|
|
|
Model
|
EAI-I731A
|
|
CPU
|
Intel® Core™ Series 2 (Bartlett Lake-S) and 14th/13th/12th Gen Core™ Processors
|
|
Chipset
|
Intel® R680E
|
|
BIOS
|
AMI SPI Flash BIOS
|
|
System Memory
|
|
|
Memory Technology
|
5600 MHz DDR5 ECC / Non-ECC
|
|
Memory Slots
|
2 x DDR5 SODIMM
|
|
Maximum Memory Capacity
|
Up to 96 GB
|
|
Ethernet
|
|
|
Ethernet Interface
|
2 x 2.5 GbE RJ45
|
|
Ethernet Speed
|
100M / 1G / 2.5 GbE
|
|
LOM
|
1 x RJ45 LOM
|
|
Storage
|
|
|
Storage Type
|
SATA III
|
|
Drive Installation
|
2 x 2.5" Removable HDD/SSD
|
|
M.2 SATA Slots
|
2 x M.2 2242 B-Key
|
|
M.2 NVMe Slot
|
1 x M.2 2280 M-Key
|
|
I/O Interface
|
|
|
Reset Button
|
1
|
|
Power Button
|
1
|
|
Serial Console
|
1 x RJ45 Console
|
|
COM Ports
|
2 x DB9 RS232/422/485
|
|
Display
|
1 x HDMI, 1 x DP 1.4
|
|
USB
|
8 x USB 3.2 Gen 1 Type-A
|
|
Digital I/O (DIO)
|
4 x DI (PNP/NPN/Dry Contact), 4 x DO (Dry/Sink)
|
|
Audio
|
Mic-in, Line-out
|
|
Expansion
|
|
|
M.2 E-Key
|
1 x M.2 2230 E-Key for Wi-Fi 6/6E and Bluetooth
|
|
M.2 B-Key
|
1 x M.2 3042/3052 B-Key for LTE/5G
|
|
PCIe Slots
|
1 x PCIe x16 Gen 4, 1 x PCIe x4 Gen 3
|
|
SIM Card Slots
|
1 x Nano-SIM for LTE/5G module, 1 x eSIM
|
|
IPMI
|
AST2600
|
|
Power
|
|
|
Power Supply
|
300 W
|
|
Input Voltage
|
12/24 VDC
|
|
Cooling
|
|
|
Processor Cooling
|
Passive CPU Heatsink
|
|

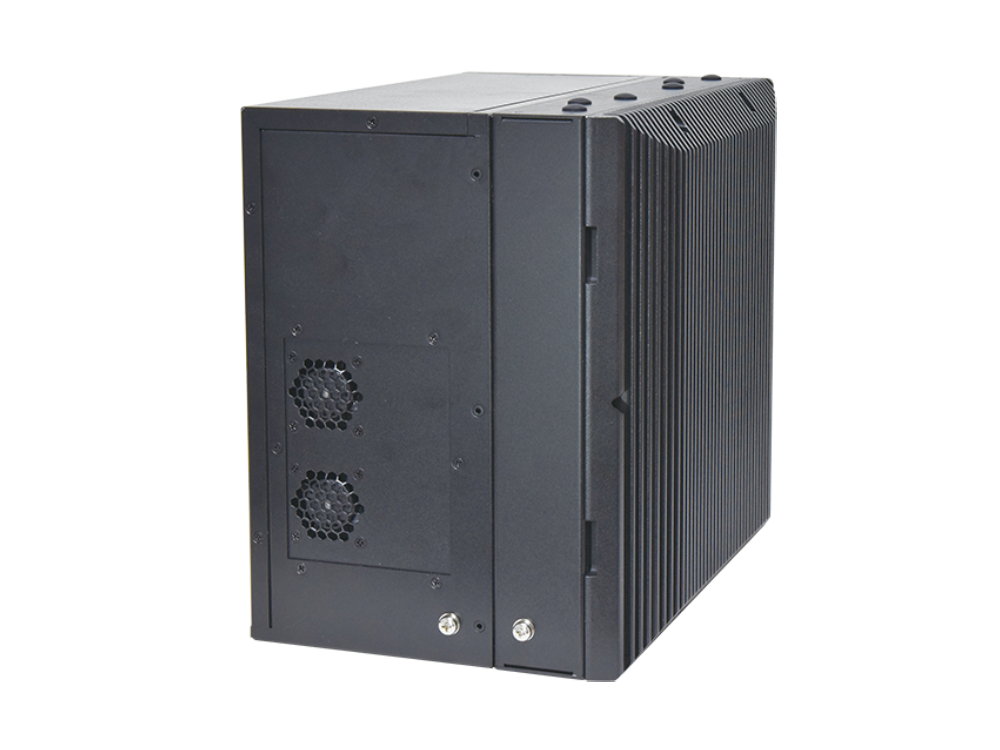

System Cooling
|
2 x Smart Fans for PCIe Expansion
|
|
Environmental Parameters
|
|
|
Operating Temperature
|
-25 to 65°C with 35 W CPU and without PCIe expansion card; -25 to 45°C with 65 W CPU and without PCIe expansion card
|
|
Storage Temperature
|
-40 to 85°C Ambient
|
|
Operating Humidity
|
5 to 90% RH
|
|
Non-Operating Humidity
|
5 to 95% RH
|
|
Miscellaneous
|
|
|
Watchdog
|
Yes
|
|
Internal RTC with Li Battery
|
Yes
|
|
TPM
|
Onboard TPM 2.0
|
|
System Dimensions
|
|
|
Dimensions (W x D x H)
|
190 x 286 x 250 mm
|
|
Mounting
|
Wall Mount
|
|
OS Support
|
|
|
Linux
|
Ubuntu 22.04
|
|
Windows
|
Windows 10 IoT
|
|
EMC and Safety Certifications
|
CE, FCC Class A, UKCA, UL, CB, RoHS
|
