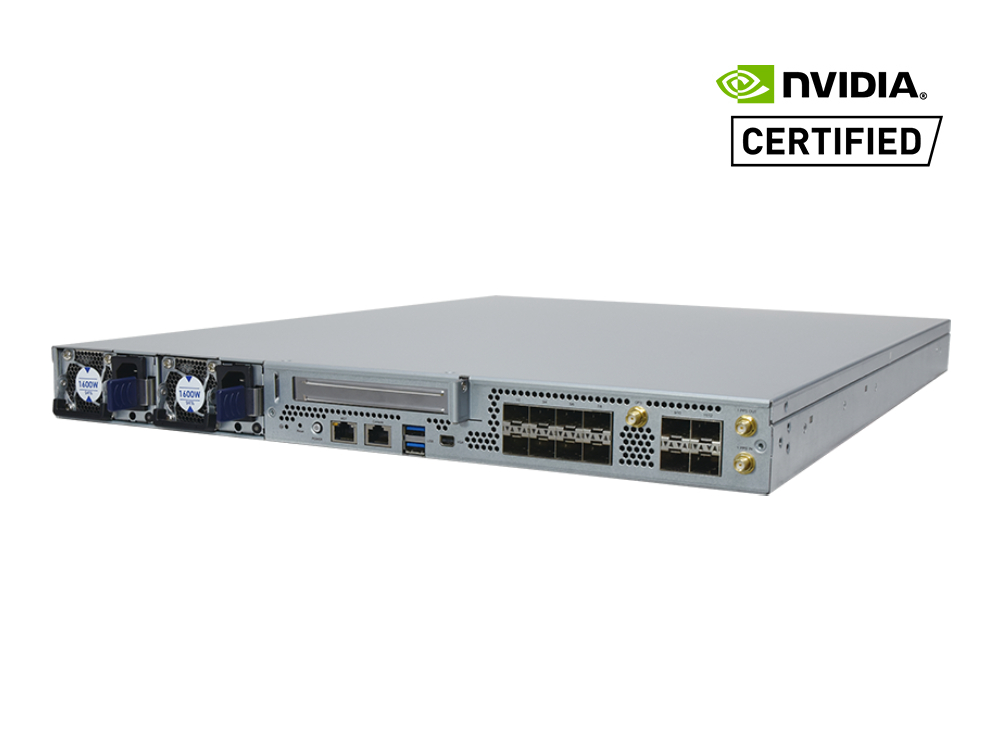

Lanner ECA-5540C 1U 5G edge server front panel with network ports and NVIDIA Certified badge
Lanner ECA-5540C 1U 5G edge server front panel with network ports and NVIDIA Certified badge

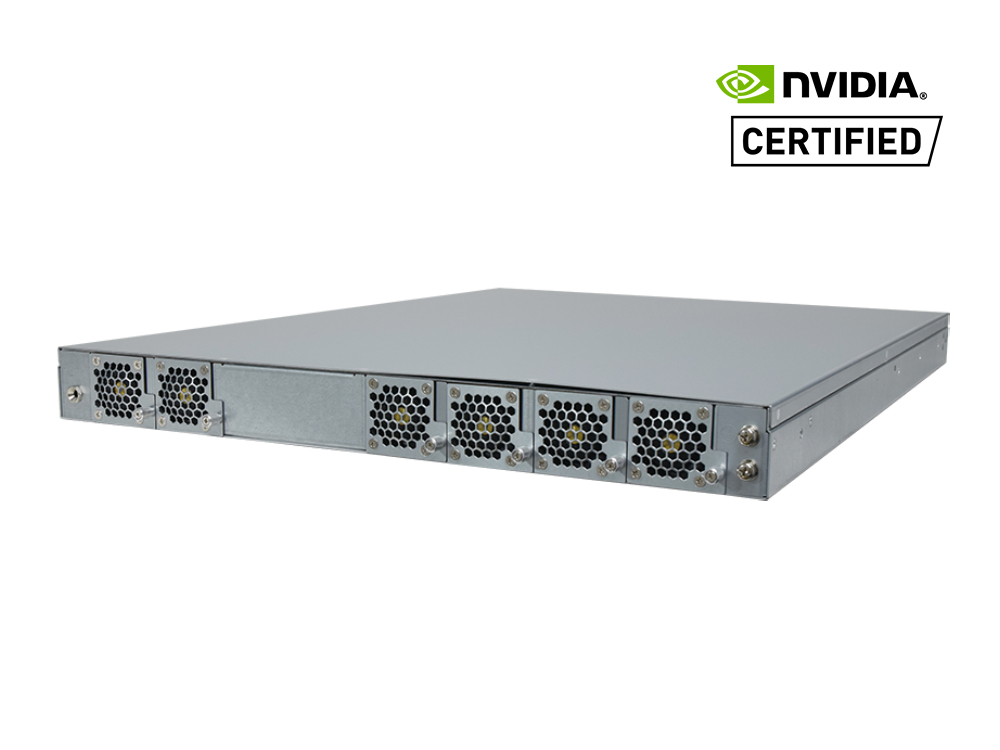

Rear view of Lanner ECA-5540C edge server showing cooling fans and power connectors

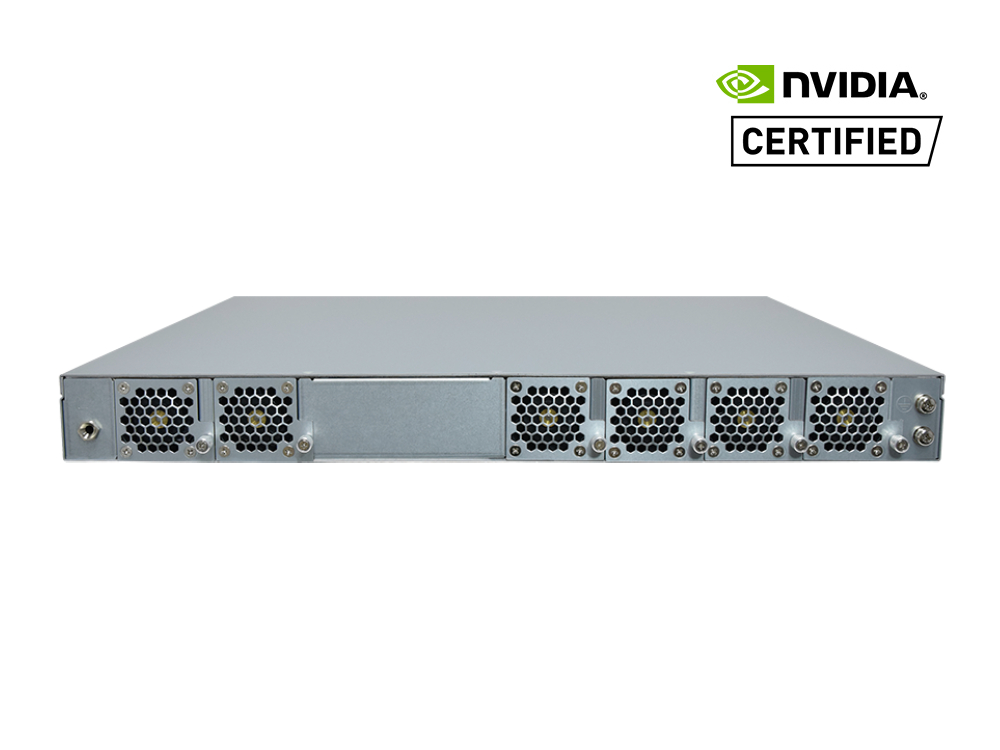

Lanner ECA-5540C 1U server side profile with ventilation grilles and mounting hardware
Logo

Lanner ECA-5540C Intel Xeon Scalable Processor 1U 5G Edge Server

Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!


Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Product Code: NSHO-223

MPN #: ECA-5540C

Lanner ECA-5540C Intel Xeon Scalable Processor 1U 5G Edge Server

Lanner's  ECA-5540C offers a scalable, high-performance platform for telecom operators to build and deploy 5G radio access networks that are open, efficient, and secure. The appliance is specifically designed for distributed/centralized RAN deployments and enables operators to enable multi-access edge computing and services with ease.Featuring short depth chassis, front access IO design, the ECA-5540C is powered by the 5th/4th Gen Intel® Xeon® Scalable Processors and is equipped with Intel vRAN boost (Sapphire Rapids EE) for improved virtualization performance and power efficiency. It also supports max. 1024GB DDR5 memory, dual PCIe expansion, secure BMC/TPM 2.0, allowing operators to build secure, high-speed connections between baseband units and remote radio units.



Key Features

• 4th/5th Gen Intel® Xeon® Scalable Processors
• Intel vRAN Boost Support (For 4th Gen Intel® Xeon® Scalable Processors Only)
• Ethernet Switch Integrated (Broadcom Hurricane3-MG) For 12x 10GbE SFP+
• Supports G.8272 T-GM Compliant IEEE 1588v2 SynE, Onboard GPS
• Short Depth Chassis and Front I/O Design
• 16x DDR5 4800MHz RDIMM, Max. 1024GB
• 2x M.2 NVMe 2280
• 0 ~ 40ºC Operating Temperature



Specifications

Platform



Form Factor

1U 19” Rackmount

Processor Options

4th/5th Gen Intel® Xeon® Scalable Processors

CPU Socket

1 x LGA 4677 socket type

Chipset

Emmisburg PCH

vRAN Acceleration

Intel vRAN Boost (4th Gen Intel® Xeon® Scalable Processors Only)

Security Acceleration

Yes

BIOS

AMI SPI Flash BIOS

System Memory



Technology

DDR5 4800 MHz RDIMM

Max. Capacity

1024 GB

Socket

16 x 288-pin DIMM

Networking



Ethernet Ports

1 x GbE RJ45, 12 x 10GbE SFP+ (BCM56172)

IEEE 1588

Yes

GPS

Yes

LOM



I/O Interface

1 x LOM Port via BMC chip

OPMA Slot

Support AST2600 IPMI

I/O Interface



Reset Button

1 x Reset button (Default SW reset)

LED

Power/Status

Power Button

Yes

Console

1 x RJ45

USB

2 x USB 3.0

Display

Yes, miniDP via IAC-AST2600 IPMI card

Storage



Onboard Slots

2 x M.2 NVMe (PCIe) M Key (2280 & 2242)

Expansion



PCIe

1 x FHHL Slot (PCIe x8)

Miscellaneous



Watchdog

Yes

Internal RTC with Li Battery

Yes

TPM

Yes

Cooling



Processor

Passive CPU Heatsink

System

6 x Smart Fans, Swappable

Environmental Parameters



Operating Temperature

0 to 40°C

Non-Operating Temperature

-40 to 70°C

Operating Humidity (RH)

5 to 90%

Non-Operating Humidity (RH)

5 to 95%

System Dimensions



Dimensions (W x D x H)

438 x 580 x 44 mm

Package Dimensions



Dimensions (W x D x H)

739 x 582 x 215 mm

Power



Type / Watts

1600 W AC PSU

Input

110 to 240 V
