Edge-computing projects often stall because the hardware can’t keep up with real-time AI workloads while fitting into tight rack spaces. The Lanner ECA-6051B Intel Xeon 6 2U Modular Edge AI Server Platform delivers a compact, high-performance solution that handles demanding inference tasks, secure data processing and heavy I/O without sacrificing reliability or power efficiency.

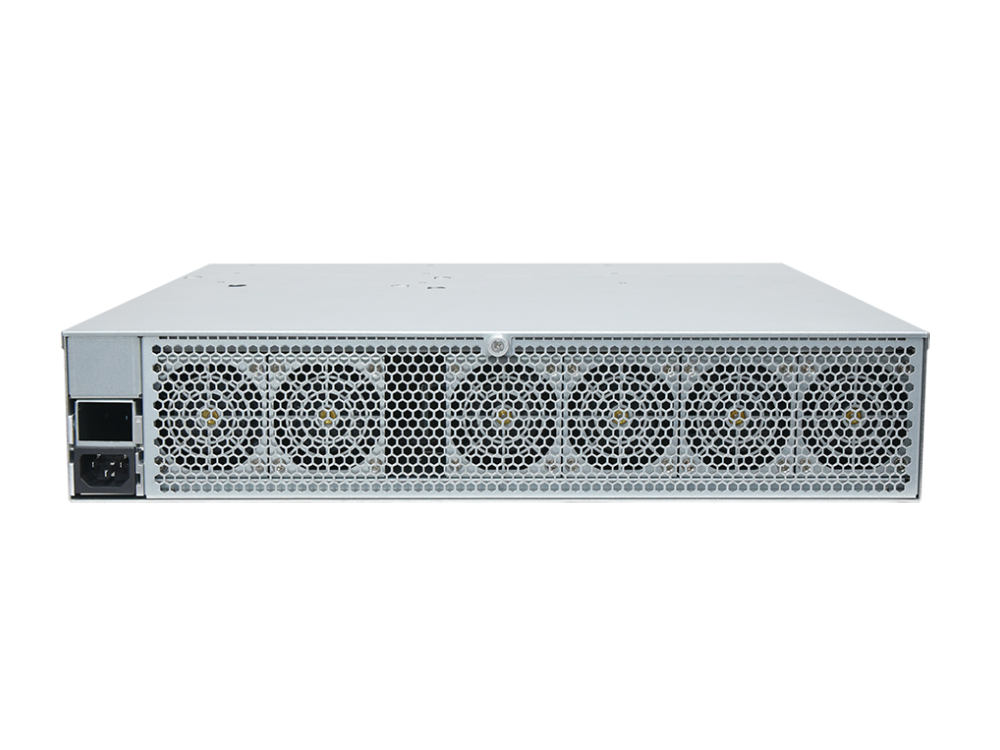

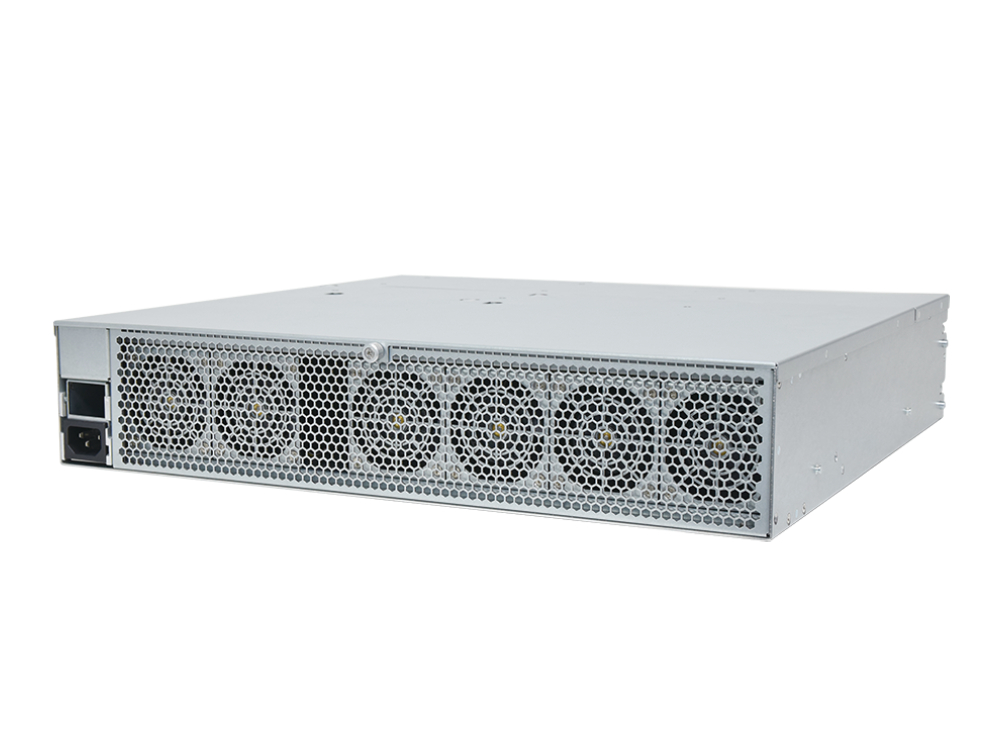

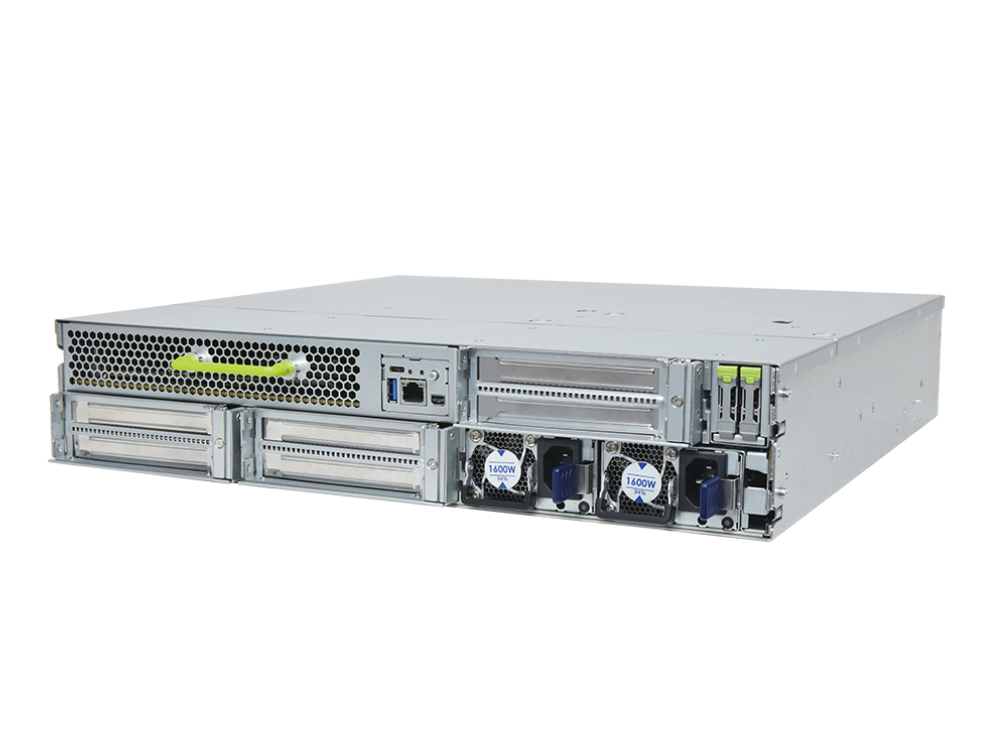

Lanner ECA-6051B Intel Xeon 6 2U Modular Edge AI Server Platform - solving the edge-compute bottleneck
Modern edge sites need a server that can run complex AI models, protect sensitive data and stay operational in harsh environments. Traditional servers are either too bulky, lack the necessary security acceleration, or cannot scale memory and storage fast enough. This platform combines a powerful Xeon 6 processor family with extensive memory capacity, dual 1600 W power supplies and robust cooling, giving you a resilient, rack-mountable AI engine that meets the toughest edge requirements.
Key Features of Lanner ECA-6051B Intel Xeon 6 2U Modular Edge AI Server Platform
- Form Factor: 2U 19” Rackmount - fits standard data-centre racks while saving space.
- Processor Options: Intel® Xeon® 6 Processor Scalable Family - provides high core counts and advanced instruction sets for AI workloads.
- CPU Socket: 1x LGA 4710 - supports the latest Xeon 6 CPUs with optimal power delivery.
- Security Acceleration: Intel® QuickAssist Technology - speeds up encryption, compression and secure networking.
- BIOS: AMI SPI Flash BIOS - ensures fast boot times and reliable firmware updates.
- Max. Memory Capacity: 1024 GB - lets you run large models and in-memory databases without bottlenecks.
- Memory Slots: 8x 288-pin DIMM
- Ethernet Port: 1x GbE RJ45 MGMT (i210) - dedicated management interface for remote monitoring.
- LOM: 1 x RJ45 - additional network link for data traffic or redundancy.
- Power Supply: 2x 1600 W AC CRPS PSU - redundant power ensures continuous operation even if one unit fails.
Specifications
| Form Factor |
2U 19” Rackmount |
| Processor Options |
Intel® Xeon® 6 Processor Scalable Family |
| CPU Socket |
1x LGA 4710 |
| Security Acceleration |
Intel® QuickAssist Technology |
| BIOS |
AMI SPI Flash BIOS |
| Max. Memory Capacity |
1024GB |
| Memory Slots |
8x 288-pin DIMM |
| Ethernet Port |
1x GbE RJ45 MGMT (i210) |
| LOM |
1 x RJ45 |
| LED |
Power/Status |
| Power Button |
Yes |
| Console |
Type-C |
| USB |
1 x USB 3.0 |
| LCD Module |
N/A |
| Display |
MiniDP (VGA Signal) |
| HDD/SSD Support |
2x E1.S SSD |
| Onboard Slots |
2x M.2 NVMe (PCIe) |
| PCIe (SKU B) |
1x PCIe16 FH3/4L (Double Width), 1x PCIe16 LP |
| OCP3.0 |
N/A |
| Watchdog |
Yes |
| Internal RTC with Li Battery |
Yes |
| TPM |
Yes, Onboard |
| Processor Cooling |
Passive CPU Heatsink |
| System Cooling |
6x Smart Fans |
| Operating Temperature |
0~40ºC |
| Non-Operating Temperature |
-40~70ºC |
| Operating Humidity |
5~95% RH |
| Non-Operating Humidity |
5~95% RH |
| System Dimensions (WxDxH) |
438 x 420 x 88 mm |
| System Weight |
19.6 Kg |
| Package Dimensions (WxDxH) |
700 x 603 x 285 mm |
| Package Weight |
20.93 Kg |
| Power Supply |
2x 1600W AC CRPS PSU |
| Input |
200-240 VAC, 9.5A, 50Hz ~ 60Hz |
| Certifications |
RoHS, CE/FCC Class A, UL, NEBS (Level 3) |
| ECA-6051B |
Intel® Xeon® 6 Processor Scalable Family, 2x PCIe Card Extension Support (1x FH3/4L, 350W, 1x LP), 2x E1.S, 1600W 1+1 ATX PSU |
