Are you tired of dealing with slow network speeds and outdated technology? Look no further than the Lanner NCA-1250D, a powerful network appliance designed to meet the demands of modern businesses. With its Intel x7835RE 8-core processor and 6 x 2.5GbE RJ45 LAN ports, this device is capable of handling even the most intense network traffic. But what really sets it apart is its ability to solve a common problem faced by many businesses: the need for a reliable and efficient network solution. The Lanner NCA-1250D is the answer to this problem, providing a fast, secure, and scalable network solution that can grow with your business.

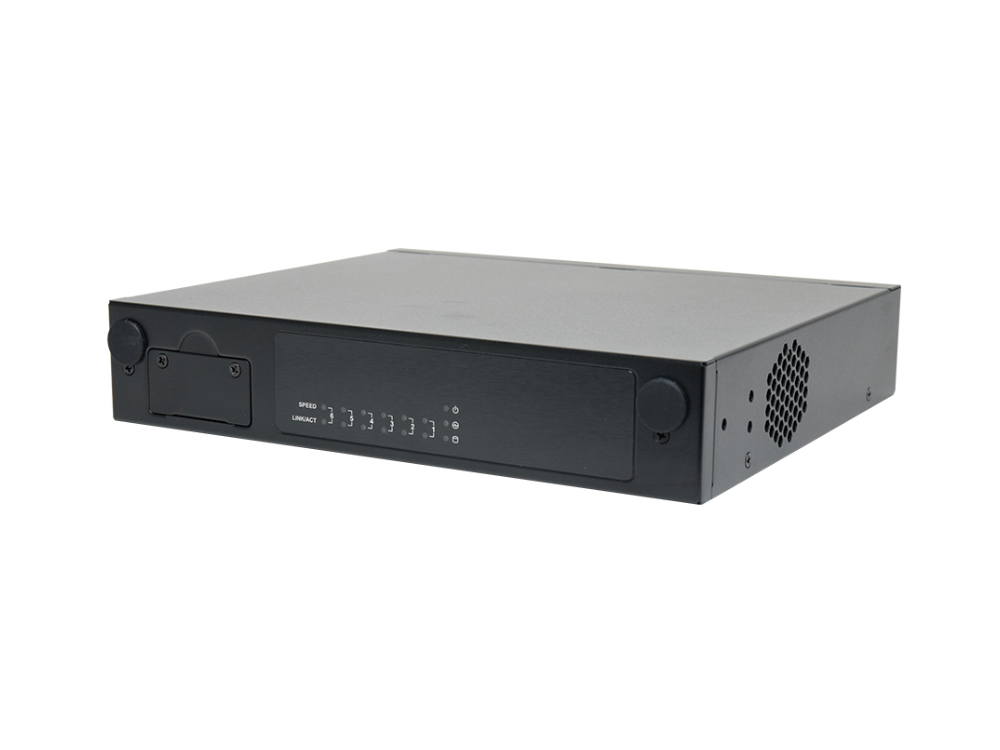

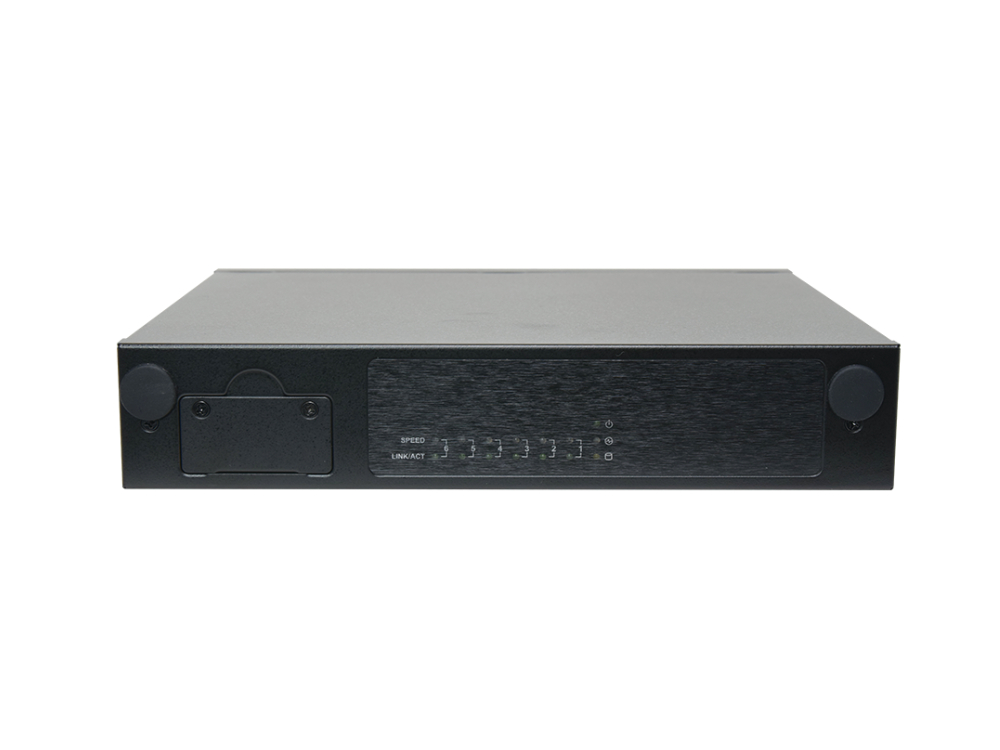

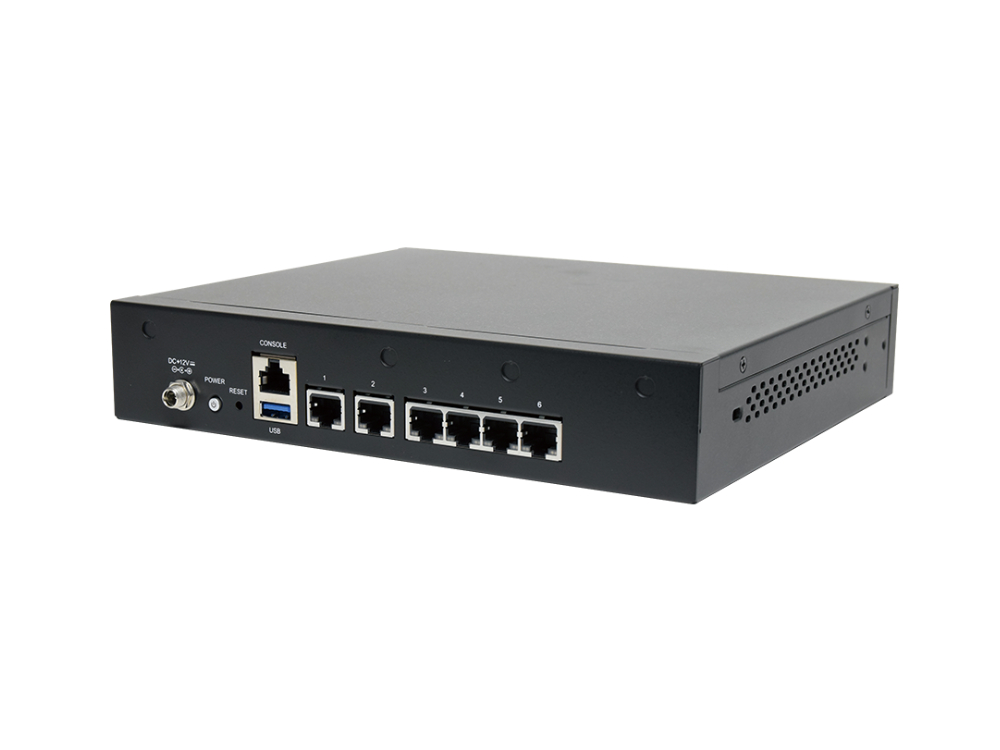

Lanner NCA-1250D, Intel x7835RE 8 Core, Network Appliance
The Lanner NCA-1250D is designed to solve the problem of slow network speeds and outdated technology. This problem matters to users because it can lead to decreased productivity, lost revenue, and a competitive disadvantage. The Lanner NCA-1250D provides a clear solution by offering a fast, secure, and scalable network solution that can grow with your business. With its advanced features and powerful processor, this device is capable of handling even the most intense network traffic, making it an ideal solution for businesses of all sizes.
Key Features
- Intel x7835RE 8-core processor, providing fast and efficient processing power
- 6 x 2.5GbE RJ45 LAN ports, supporting high-speed network traffic
- 1 x TPM onboard, providing advanced security features
- LTE/5G modules support, allowing for wireless connectivity options
- Fanless cooling system, reducing noise and increasing reliability
- Rugged design, suitable for use in harsh environments
- Easy to use and manage, with a user-friendly interface and simple configuration process
- Cost-effective solution, reducing the need for multiple devices and lowering your overall costs
- Support for multiple network segments, making it a great solution for businesses with complex network infrastructure
- Advanced features, including network security, VPNs, and VoIP, to support a wide range of applications
Specifications
| Platform |
|
| Form Factor |
Desktop |
| Processor |
Intel x7835RE 8-Core |
| CPU Socket |
Onboard |
| Chipset |
SoC |
| Security Acceleration |
N/A |
| BIOS |
AMI SPI Flash BIOS |
| System Memory |
|
| Technology |
DDR5 4800MT/s SODIMM |
| Max. Capacity |
16GB |
| Socket |
1 x 262-pin SODIMM |
| Networking |
|
| Ethernet Ports |
6 x 2.5GbE RJ45 LAN Ports |
| Bypass |
N/A |
| NIC Module Slot |
N/A |
| LOM |
|
| IO Interface |
N/A |
| OPMA Slot |
N/A |
| I/O Interface |
|
| Reset Button |
1 |
| LED |
Power/Status/Storage |
| Power Button |
1 |
| Console |
1 x RJ45 |
| USB |
1 x USB 3.0 |
| LCD Module |
N/A |
| Display |
N/A |
| Power Input |
1 x DC Jack |
| Storage |
|
| HDD/SSD Support |
N/A |
| Onboard Slots |
1 x M.2 (SATA) 2280
1 x EMMC 16GB onboard |
| Expansion |
|
| PCIe |
N/A |
| Mini-PCIe/M.2/SIM |
1 x M.2 3042/3050/3052 For 5G/LTE (USB3.2)
1 x M.2 2230 E Key For Intel AX201 (CNVIo, SKU A/B Only)
1 x Nano SIM |
| PGN Module |
N/A |
| Miscellaneous |
|
| Watchdog |
Yes |
| Internal RTC with Li Battery |
Yes |
| TPM |
Yes (SKU A/C/D/E/F) |
| Cooling |
|
| Processor |
Passive CPU Heatsink |
| System |
Fanless |
| Environmental Parameters |
|
| Temperature |
0~40ºC Operating, -20~70ºC Non-Operating |
| Humidity (RH) |
10~90% Operating, 5~95% Non-Operating |
| System Dimensions |
|
| (WxHxD) |
231 x 44 x 200 mm |
| Weight |
1.1 kg |
| Package Dimensions |
|
| (WxHxD) |
358 x 290 x 135 mm |
| Weight |
2.3 kg |
| Power |
|
| Type / Watts |
12V 40W Power Adapter |
| Input |
AC 100~240V@50~60Hz |
| Certification |
|
| Approvals and Compliance |
RoHS, CE/FCC Class B |
| Order Information |
|
| NCA-1250D |
Intel x7835RE 8-Core With 6x 2.5GbE RJ45 LAN Ports, 1x TPM Onboard, LTE/5G Modules Support |
