If you are looking for a reliable and efficient network appliance, you may be facing a problem of finding the right device that meets your needs. This is a significant issue because a network appliance is crucial for managing and securing your network. The Lanner NCA-1525A, Intel Atom C5325, 64GB Desktop Network Appliance provides a clear solution to this problem by offering a powerful and flexible device that can handle various network tasks. With its advanced features and robust design, this appliance can help you streamline your network operations and improve overall performance.

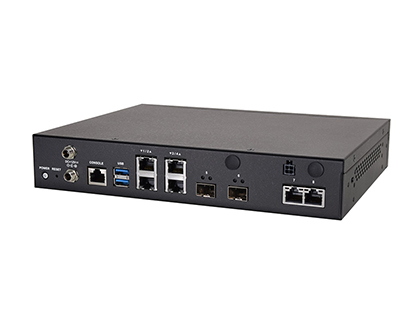

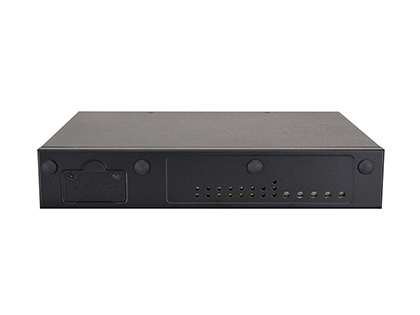

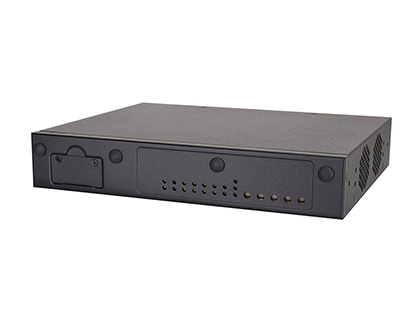

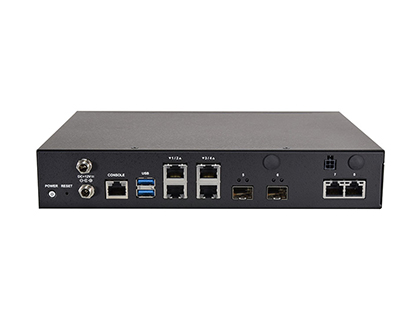

Lanner NCA-1525A, Intel Atom C5325, 64GB Desktop Network Appliance with Lanner
Are you tired of using outdated and inefficient network appliances? Look no further than the Lanner NCA-1525A, a cutting-edge device designed to revolutionize your network management. As a leading provider of network solutions, Lanner has created a powerful and flexible appliance that can handle even the most demanding tasks. With its advanced Intel Atom C5325 processor and 64GB of memory, this device is perfect for businesses and organizations that require a reliable and high-performance network appliance. The Lanner NCA-1525A is used for managing and securing networks, and it is an essential tool for any organization that wants to stay ahead of the curve.
Key Features
- Intel Atom C5325 processor for high-performance processing
- 64GB of memory for efficient and reliable operation
- 4x GbE RJ45 ports for flexible and scalable networking
- 2x 10GbE SFP+ ports for high-speed networking
- 2x 2.5GbE RJ45 ports for fast and reliable networking
- 90W power adapter for efficient and reliable power supply
- Support for various operating systems, including Windows and Linux
- Compact and rugged design for reliable operation in harsh environments
- Easy to use and manage, with a user-friendly interface
- Cost-effective solution for managing and securing your network
- Enhanced security features to protect your network from threats
Specifications
| Platform |
|
| Form Factor |
Desktop |
| Processor Options |
Intel® Atom® C5325 (Parker Ridge) |
| Core Numbers |
4/8 Cores |
| CPU Socket |
Onboard |
| Chipset |
SoC |
| Security Acceleration |
Intel® QuickAssist Technology |
| BIOS |
AMI SPI Flash BIOS |
| System Memory |
|
| Technology |
DDR4 2933/2400 MHzECC/Non-ECC SODIMM |
| Max. Capacity |
64GB |
| Socket |
2 x 260-pin SODIMM |
| Networking |
|
| Ethernet Ports |
4 x GbE RJ45
2 x 10GbE SFP+
2 x 2.5GbE RJ45 (Optional PoE+ Support) |
| I/O Interface |
|
| Reset Button |
1 |
| LED |
Power/Status/Storage |
| Power Button |
1 |
| Console |
1 x RJ45 |
| USB |
2 x USB 3.0 |
| LCD Module |
N/A |
| Display |
N/A |
| Power Input |
2 x DC Jack With Lock |
| Storage |
|
| HDD/SSD Support |
N/A |
| Expansion |
|
| PCIe |
N/A |
| Mini-PCIe/M.2 |
1 x Mini-PCIe (PCIe/USB2.0)
2 x M.2 3042/3052 B Key (USB3.0)
1 x M.2 2280 B Key (SATA) |
| SIM Card Slot |
N2 x Nano SIM for M.2 |
| Miscellaneous |
|
| Watchdog |
Yes |
| Internal RTC with Li Battery |
Yes |
| TPM |
SPI TPM 2.0 |
| Cooling |
|
| Processor |
Passive CPU Heatsink |
| System |
2 x Cooling Fans w/ Smart Fan |
| Environmental Parameters |
|
| Temperature |
0~40ºC Operating, -40~70ºC Non-Operating |
| Humidity (RH) |
5~90% Operating, 5~95% Non-Operating |
| System Dimensions |
|
| (WxDxH) |
251 x 200 x 44 mm |
| Weight |
1.5 kg |
| Package Dimensions |
|
| (WxDxH) |
360 x 310 x 140 mm |
| Weight |
2.75 kg |
| Power |
|
| Type / Watts |
90W Power Adapter |
| Input |
AC 100~240V @50~60 Hz |
| Certification |
|
| Approvals and Compliance |
RoHS, CE/FCC Class B (Without PoE+), UL, VCCI, UKCA |
| Order Information |
|
| NCA-1525A |
C5325, 8-core, 2x 2933MHz DDR4 SODIMM, Max. 64GB,
4x GbE RJ45, 2x 10GbE SFP+, 2x 2.5GbE RJ45, 90W Adapter
|
