Are you tired of using slow and outdated servers that are holding back your business? Look no further than the Lanner NCA-2530A, Intel Grand Ridge 24C P6962-3, 1U 19 Rackmount Server. This powerful server is designed to provide fast and reliable performance, making it perfect for businesses of all sizes. With its advanced features and user-friendly design, this server is the perfect solution for anyone looking to upgrade their current system. Many buyers face the problem of slow data processing and low storage capacity, but with the Lanner NCA-2530A, these problems are a thing of the past.

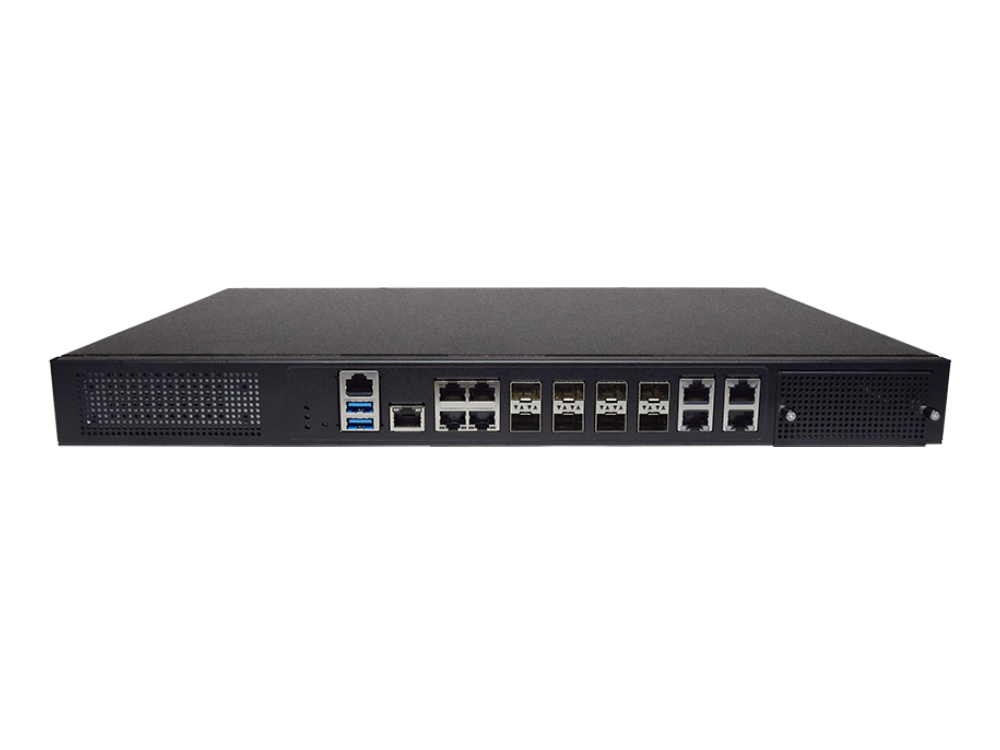

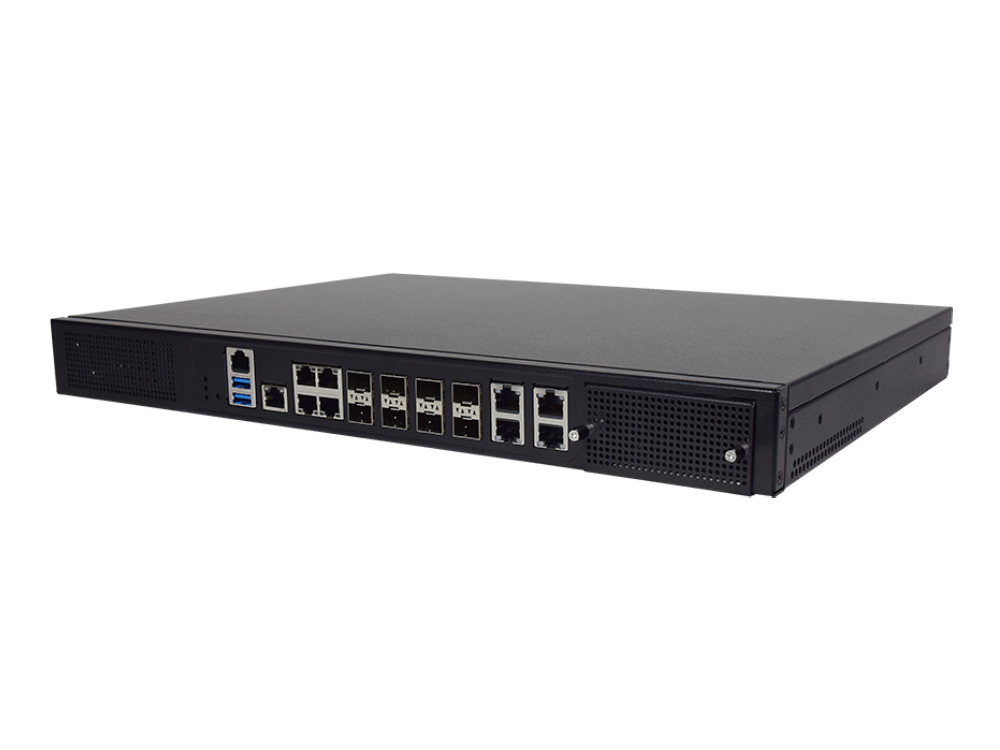

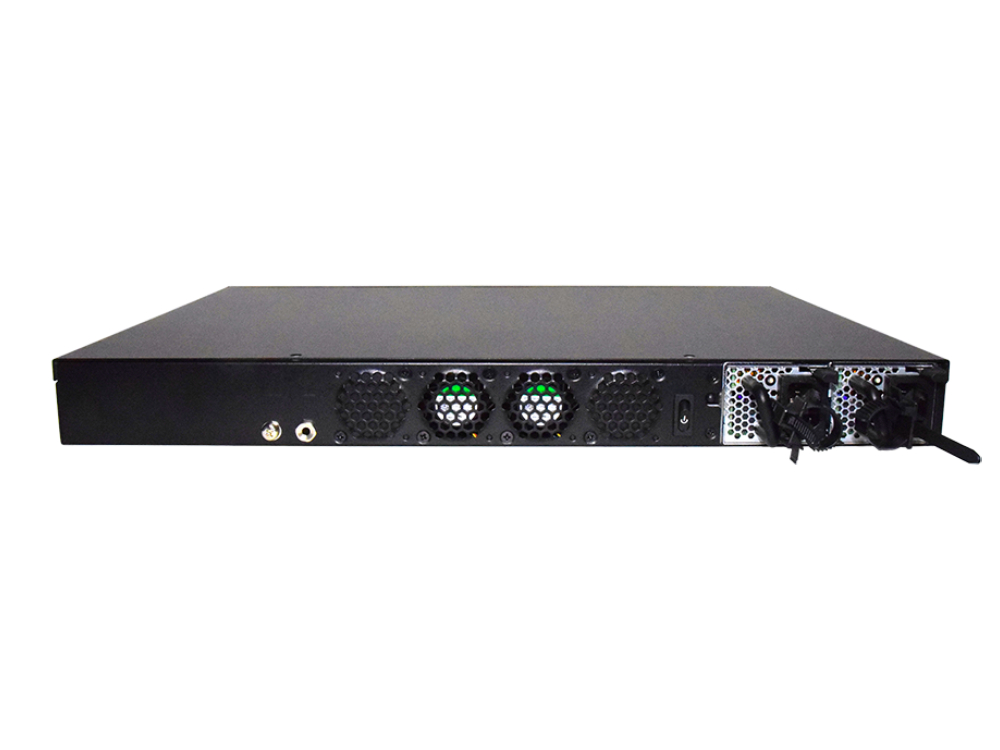

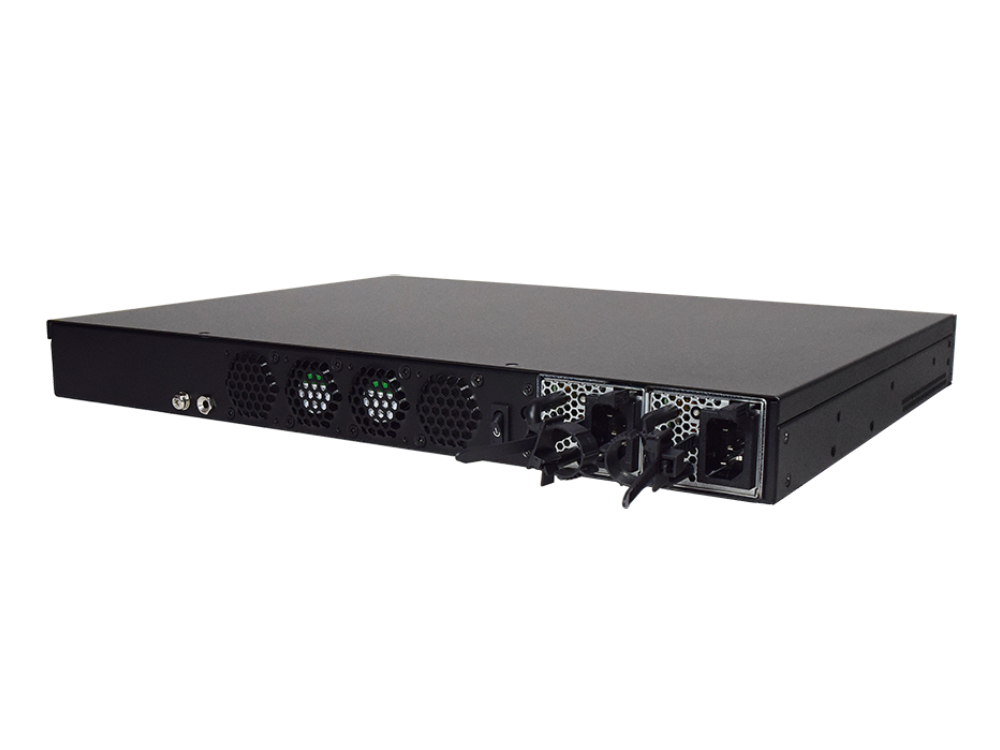

Lanner NCA-2530A, Intel Grand Ridge 24C P6962-3, 1U 19 Rackmount Server
This product solves the problem of slow data processing and low storage capacity, which is a major concern for many businesses. The Lanner NCA-2530A provides a clear solution to this problem by offering advanced features such as high-speed processors, ample storage capacity, and reliable networking options. With this server, businesses can process large amounts of data quickly and efficiently, making it an essential tool for anyone looking to stay ahead of the competition. The problem of slow data processing matters to users because it can lead to decreased productivity and efficiency, which can ultimately affect the bottom line of a business.
Benefits
- Fast and reliable performance, making it perfect for businesses of all sizes
- Advanced features such as high-speed processors and ample storage capacity
- User-friendly design, making it easy to set up and use
- Reliable networking options, providing fast and secure data transfer
- Perfect solution for businesses looking to upgrade their current system
Key Features
- Intel Grand Ridge 24C P6962-3 processor, providing fast and reliable performance
- 1U 19 rackmount design, making it perfect for data centers and enterprise networks
- 8x 25GbE SFP28 ports, providing fast and secure data transfer
- 4x 10GbE RJ45 ports, providing additional networking options
- 4x 2.5GbE RJ45 ports, providing fast and reliable data transfer
- 1x NIC module, providing additional networking options
- 450W redundant power supply, providing reliable and efficient power
- Advanced cooling system, providing reliable and efficient cooling
- Support for up to 64GB of DDR5 memory, providing ample storage capacity
- 2x 2.5 internal storage bays, providing additional storage options
- 1x M.2 2280 M Key slot, providing additional storage options
Specifications:
| Platform |
|
| Form Factor |
1U 19” Rackmount |
| Processor Options |
Intel Atom® P6962-3 |
| CPU Socket |
Onboard |
| Chipset |
SoC |
| Security Acceleration |
Intel® QuickAssist Technology |
| BIOS |
AMI SPI Flash BIOS |
| System Memory |
|
| Technology |
DDR5 5600MT/s ECC UDIMM |
| Max. Capacity |
64GB |
| Socket |
2 x 288pin DIMM |
| Networking |
|
| Ethernet Ports |
1 x GbE RJ45 Intel® i210-AT
4 x 2.5G RJ-45 via GPY241
4 x 10 GbE RJ45 via 4xRealtek 8261D
8 x 25GbE SFP28 via SerDes |
| Bypass |
N/A |
| NIC Module Slot |
1 |
| LOM |
|
| IO Interface |
1x RJ45 (Optional) Share with ETH0 |
| OPMA Slot |
Yes |
| I/O Interface |
|
| Reset Button |
1 |
| LED |
Power/Status/Storage |
| Power Button |
1 |
| Console |
1 x RJ45 |
| USB |
2 x USB 2.0 |
| LCD Module |
N/A |
| Display |
N/A |
| Power Input |
AC Power Inlet On PSU |
| Storage |
|
| HDD/SSD Support |
2 x 2.5” Internal |
| Onboard Slots |
1 x M.2 2280 M Key (NVMe) |
| Expansion |
|
| PCIe |
1 x PCIe*8 MCIO Connector (Optional) |
| Mini-PCIe/M.2 |
N/A |
| SIM Slot |
N/A |
| Miscellaneous |
|
| Internal RTC with Li Battery |
Yes |
| TPM |
TPM 2.0 |
| Cooling |
|
| Processor |
Passive CPU Heatsink |
| System |
2x Cooling Fans With Smart Fan |
| Environmental Parameters |
|
| Temperature |
0 to 40ºC Operating-20 to 70ºC Non-Operating |
| Humidity (RH) |
5 to 90% Operating5 to 95% Non-Operating |
| System Dimensions |
|
| (WxDxH) |
438 x 319.8 x 44 mm |
| Weight |
TBD |
| Power |
|
| Type / Watts |
450W Redundant PSUs 350W Single PSU |
| Input |
AC 100~240V@50~60Hz |
| Certification |
|
| Approvals and Compliance |
RoHS, CE/FCC Class A, UL, UKCA |
| Order Information |
|
| NCA-2530A |
Intel Grand Ridge 24C P6962-3, 1x GbE MGMT, 8x 25GbE SFP28, 4x 10GbE RJ45,
4x 2.5GbE RJ45, 1x NIC Module, 450W Redundant PSUs
|
