Product Code: GTWY-083
MPN #: NCA-4035A

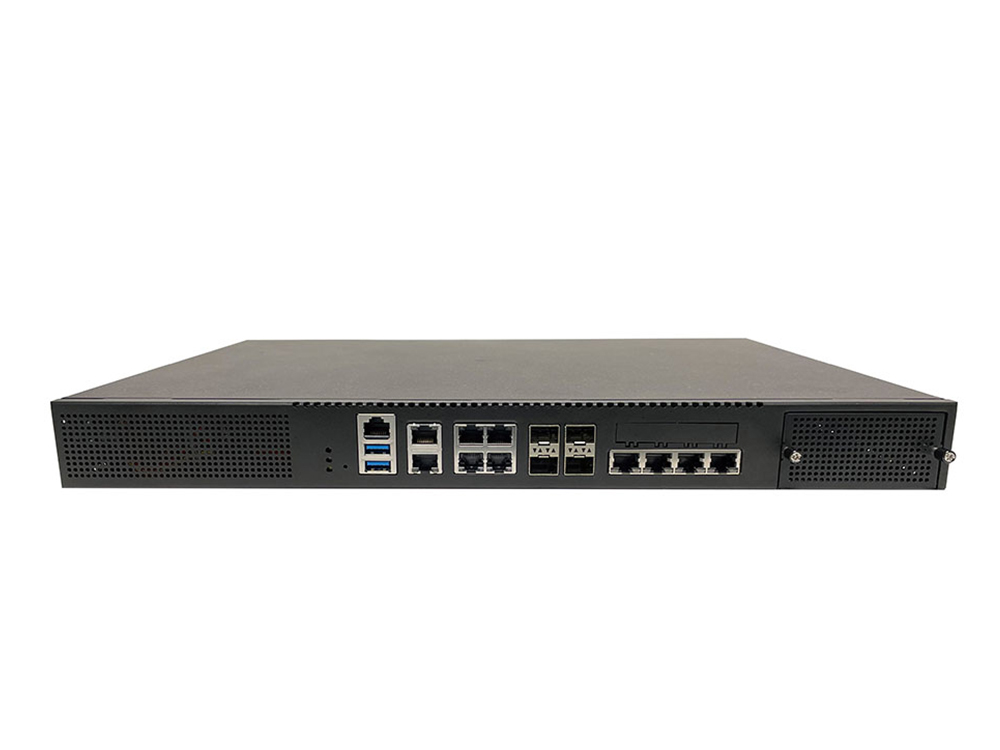

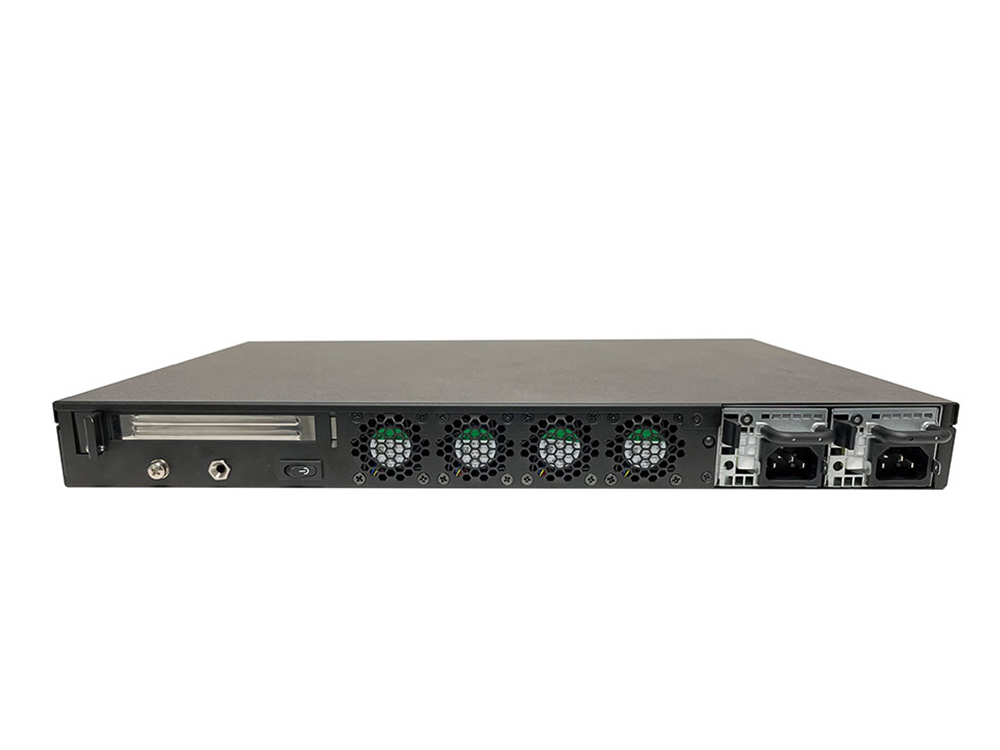

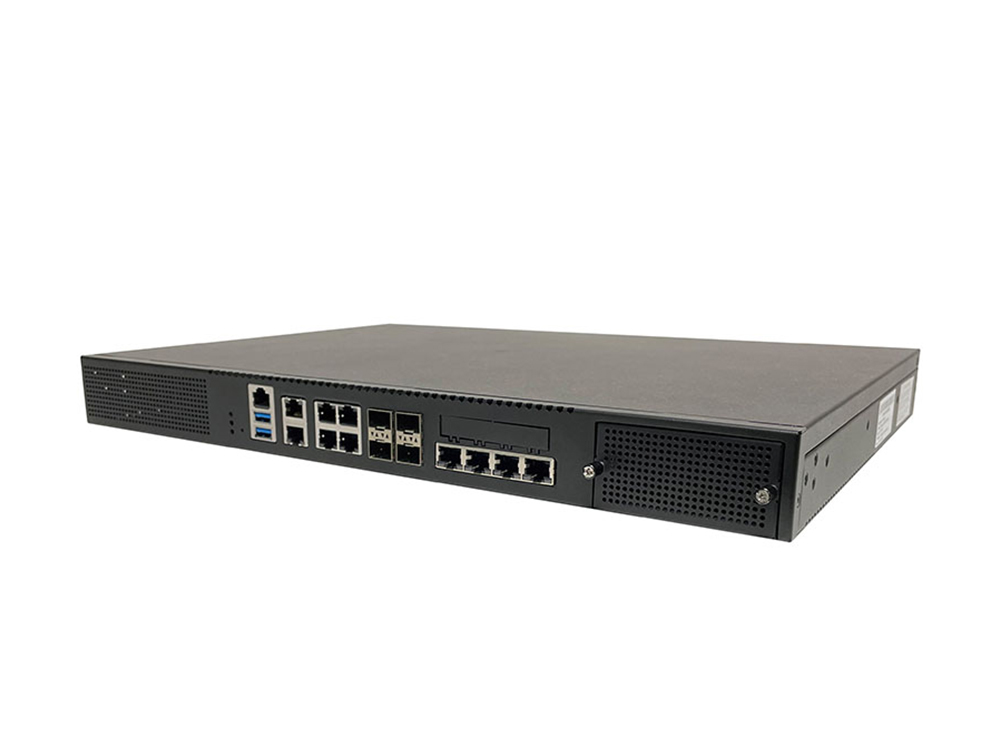

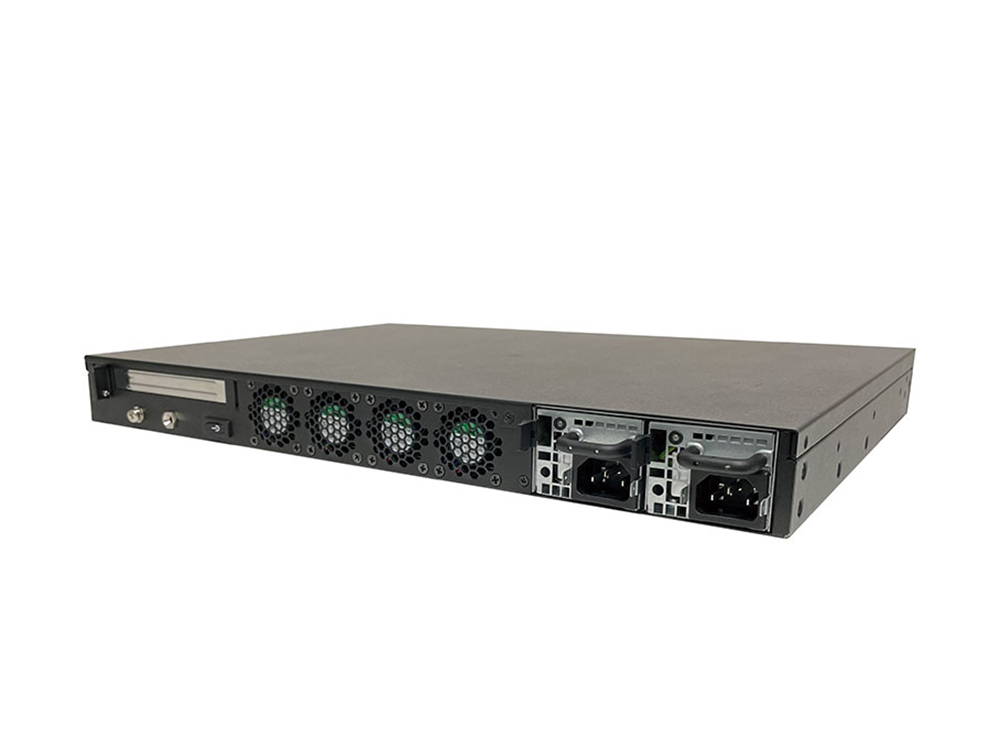

Are you tired of using slow and outdated network appliances that are holding back your business? Look no further than the Lanner NCA-4035A, a powerful and efficient 1U rackmount network appliance that is designed to meet the needs of modern businesses. With its advanced Intel Ice Lake-D HCC D2798NT processor and high-speed networking capabilities, this appliance is perfect for companies that require fast and reliable data transfer. Whether you're looking to upgrade your existing infrastructure or build a new one from scratch, the Lanner NCA-4035A is an excellent choice. Many buyers face the problem of slow network speeds and outdated hardware, but with the Lanner NCA-4035A, you can say goodbye to these issues and hello to fast and efficient networking.
This product solves the problem of slow network speeds and outdated hardware by providing a fast and efficient networking solution. The problem of slow network speeds matters to users because it can hold back business operations and reduce productivity. The Lanner NCA-4035A gives a clear solution to this problem by providing a powerful and efficient network appliance that can handle high-speed data transfer. With its advanced processor and high-speed networking capabilities, this appliance is designed to meet the needs of modern businesses and provide fast and reliable data transfer.
| Platform | |
|---|---|
| Form Factor | 1U 19” Rackmount |
| Processor | Intel Ice Lake-D HCC D2798NT |
| CPU Socket | 1 x Onboard |
| Chipset | N/A |
| Security Acceleration | Intel® QuickAssist Technology (By SKU) |
| BIOS | AMI SPI Flash BIOS |
| System Memory | |
| Technology | DDR4 3200 MHz REG ECC Or Non-ECC UDIMM/RDIMM |
| Max. Capacity | 256GB |
| Socket | 4 x 288-pin DIMM |
| Networking | |
| Ethernet Ports | 2 x GbE RJ45 Via I210-AT 4 x GbE RJ45 Via I350-AM4 4 x GbE RJ45 Via I350-AM4 4x 10G SFP+ (Default) Or 4x 25G SFP28 (By OEM Project) |
| Bypass | 2 Pairs |
| NIC Module Slot | 1 |
| LOM | |
| IO Interface | 1 x LOM For IPMI |
| OPMA Slot | Yes |
| I/O Interface | |
| Reset Button | 1 |
| LED | Power/Status/Storage |
| Power Button | 1 x ATX Power Switch |
| Console | 1 x RJ45 |
| USB | 2 x USB 3.0 |
| LCD Module | N/A |
| Display | N/A |
| Power Input | AC Power Inlet on PSU |
| Storage | |
| HDD/SSD Support | N/A |
| Onboard Slots | 2 x M.2 22801 x M.2 2242 |
| Expansion | |
| PCIe | 1 x PCIe*8 Slot (Customized) |
| mini-PCIe | N/A |
| SIM Card Slot | N/A |
| Miscellaneous | |
| Watchdog | Yes |
| Internal RTC with Li Battery | Yes |
| TPM | Yes (Optional) |
| Cooling | |
| Processor | Passive CPU Heatsink |
| System | 4 x Individual Cooling Fans With Smart Fan |
| Temperature | 0~40ºC Operating, -20~70ºC Non-Operating |
| Humidity (RH) | 5~90% Operating, 5~95% Non-Operating |
| System Dimensions | |
| (WxDxH) | 438 x 321 x 44 mm |
| Weight | 8.6 kg |
| Package Dimensions | |
| (WxDxH) | 739 x 215 x 582 mm |
| Weight | 15 kg |
| Power | |
| Type / Watts | 300W 1+1 Redundant PSUs Or350W Single PSU |
| Input | Redundant: AC 100~240V @50~60 HzSingle: AC 100~240V @47~63 Hz |
| Certification | |
| Approvals and Compliance | CE/FCC Class A, UL, RoHS |
| Ordering Information | |
| NCA-4035A |
Intel Ice Lake-D HCC D2798NT, 20C 125W CPU w/ 100G QAT, 1x RJ45 Console, 10x GbE RJ45 w/ 2 Pairs of Bypass, 4x 10G SFP+, 1x NIC Module, 1+1 Redundant PSU |
