Are you tired of using slow and outdated servers that are holding back your business? Look no further than the Lanner NCA-5115A, 1U Rackmount Server with AMD Ryzen Embedded 7000/9000 Series. This powerful server is designed to provide fast and reliable performance, making it perfect for a variety of applications. With its advanced processor and ample storage options, the Lanner NCA-5115A is the perfect solution for businesses looking to upgrade their infrastructure. Many buyers face the problem of slow data processing and storage, but with the Lanner NCA-5115A, you can say goodbye to those days and hello to fast and efficient data processing.

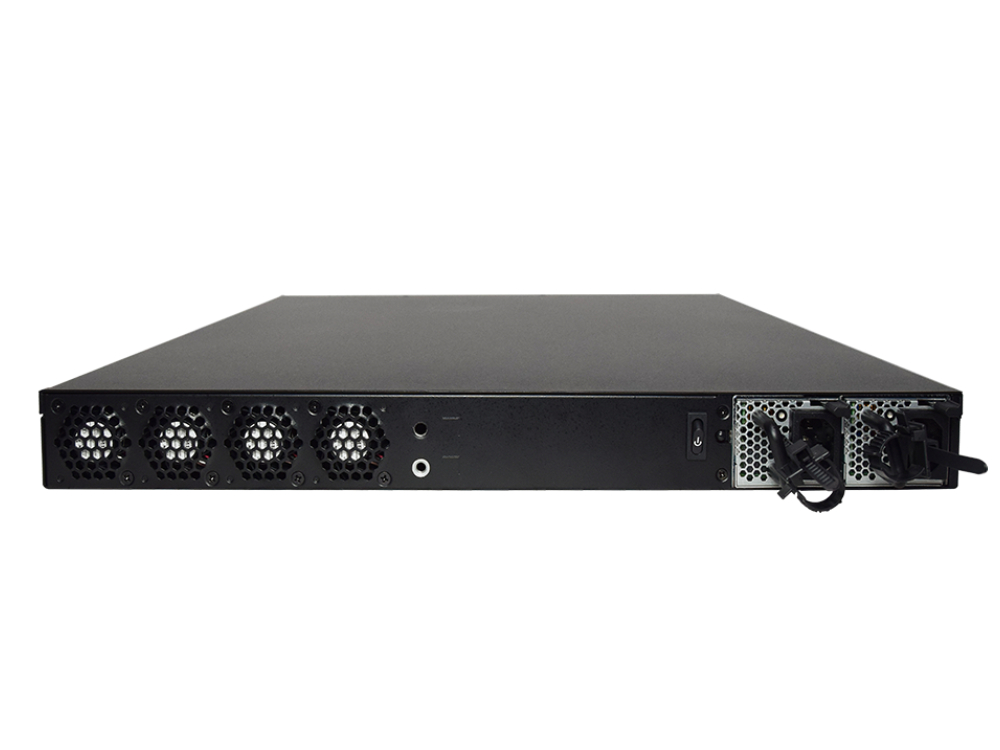

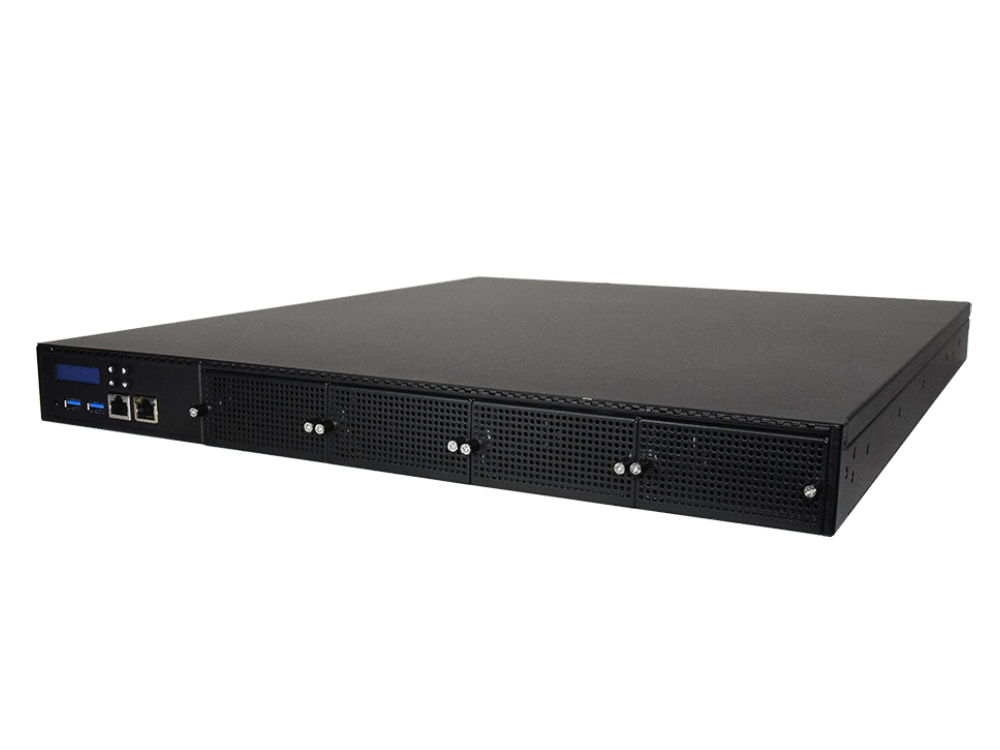

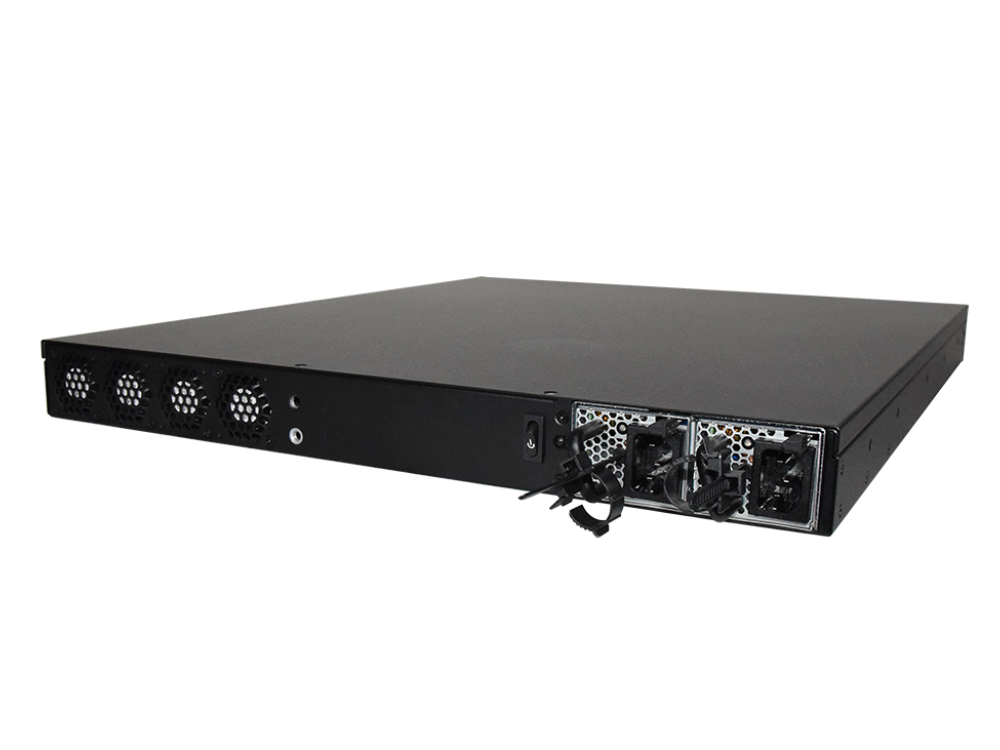

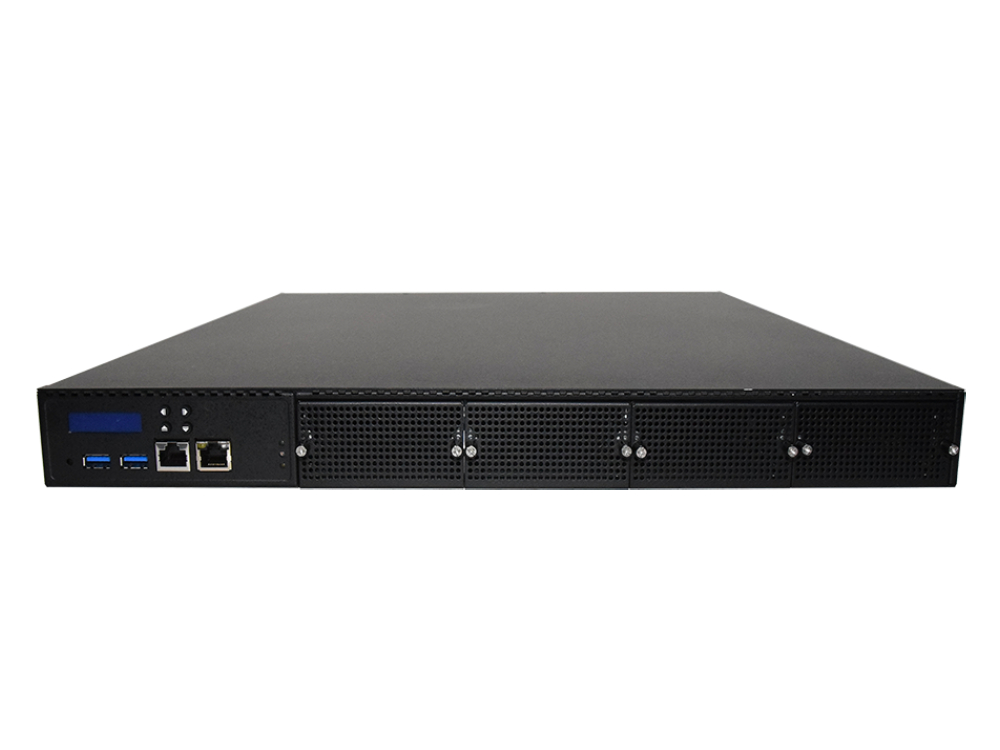

Lanner NCA-5115A, 1U Rackmount Server with AMD Ryzen Embedded 7000/9000 Series
The Lanner NCA-5115A solves the problem of slow data processing and storage by providing a fast and reliable server solution. This problem matters to users because it can hold back their business and cause frustration. The Lanner NCA-5115A gives a clear solution by providing a powerful server with advanced processor and ample storage options. With its AMD Ryzen Embedded 7000/9000 Series processor, the Lanner NCA-5115A provides fast and efficient data processing, making it perfect for applications such as data centers, cloud computing, and more.
Key Features
- AMD Ryzen Embedded 7000/9000 Series processor
- 1U rackmount server with 438 x 525 x 44 mm dimensions
- 4 x NIC module slots
- 1 x M.2 2280 NVMe Gen4 slot
- 2 x 2.5" internal or 1 x 3.5" HDD/SSD storage options
- 4 x smart fans for cooling
- 450W redundant AC/DC PSU
- Optional TPM for advanced security
- Easy to use and manage with intuitive interface
- Perfect for a variety of applications, including data centers, cloud computing, and more
Specifications
| Platform |
|
| Form Factor |
1U 19” Rackmount |
| Processor Options |
AMD Ryzen™ Embedded 7000/9000 Series Processor |
| CPU Socket |
AM5 LGA1718 (TDP Up To 65W) |
| Chipset |
AMD B650 |
| Security Acceleration |
N/A |
| BIOS |
AMI SPI Flash BIOS |
| System Memory |
|
| Technology |
1DPC: DDR5 5200 MT/s (Ryzen7000) / 5600MT/s (Ryzen 9000)
ECC Or Non-ECC UDIMM 2DPC: DDR5 3600 MT/s (Ryzen7000 / 9000) ECC Or Non-ECC UDIMM
|
| Max. Capacity |
128GB |
| Socket |
4 x 288-pin DIMM |
| Networking |
|
| Ethernet Ports |
1 x GbE RJ45 Via Intel® i210-AT |
| Bypass |
N/A |
| NIC Module Slot |
4 |
| LOM |
|
| IO Interface |
N/A |
| OPMA Slot |
N/A |
| I/O Interface |
|
| Reset Button |
1 |
| LED |
Power/Status/Storage |
| Power Button |
1 x ATX Power Switch |
| Console |
1 x RJ45 |
| USB |
2 x USB 2.0 |
| LCD Module |
Yes |
| Display |
N/A |
| Power Input |
AC Power Inlet on PSU |
| Storage |
|
| HDD/SSD Support |
2 x 2.5” Internal or 1 x 3.5” HDD/SSD |
| Onboard Slots |
1 x M.2 (NVMe) 2280 M Key Gen 4 |
| Expansion |
|
| PCIe |
N/A |
| Miscellaneous |
|
| Watchdog |
Yes |
| Internal RTC with Li Battery |
Yes |
| TPM |
Yes (Optional) |
| Cooling |
|
| Processor |
Passive CPU Heatsink |
| System |
4 x Smart Fans |
| Environmental Parameters |
|
| Temperature |
0~40ºC Operating-40~70ºC Non-Operating |
| Humidity (RH) |
5~90% Operating5~95% Non-Operating |
| System Dimensions |
|
| (WxDxH) |
438 x 525 x 44 mm |
| Weight |
15 kg |
| Power |
|
| Type / Watts |
450W Redundant AC/DC PSUs (SKU A) |
| Input |
100~120V/200~240V@50~60Hz |
| Certification |
|
| Approvals and Compliance |
RoHS, CE/FCC Class A, UL, UKCA |
| Order Information |
|
| NCA-5115A |
AMD Ryzen™ Embedded 7000/9000 Series Processor (TDP 65W), 1x MGMT, 2x USB2.0,
4x NIC, 1x M.2 2280 NVMe Gen4, 1x3.5” Or 2x2.5” HDD/SSD (internal) SATA, 450W
Redundant AC/DC PSU
|
