Lack of reliable, high-performance networking gear can cripple your data centre, causing downtime and lost revenue. The Lanner NCA-6530B Intel Xeon Scalable 2U Rackmount Network Appliance delivers enterprise-grade processing power in a compact 2U chassis, perfect for demanding virtualisation, security and storage workloads. Its redundant power, hot-swappable fans and robust cooling keep services running smoothly, while flexible expansion lets you adapt to future needs.

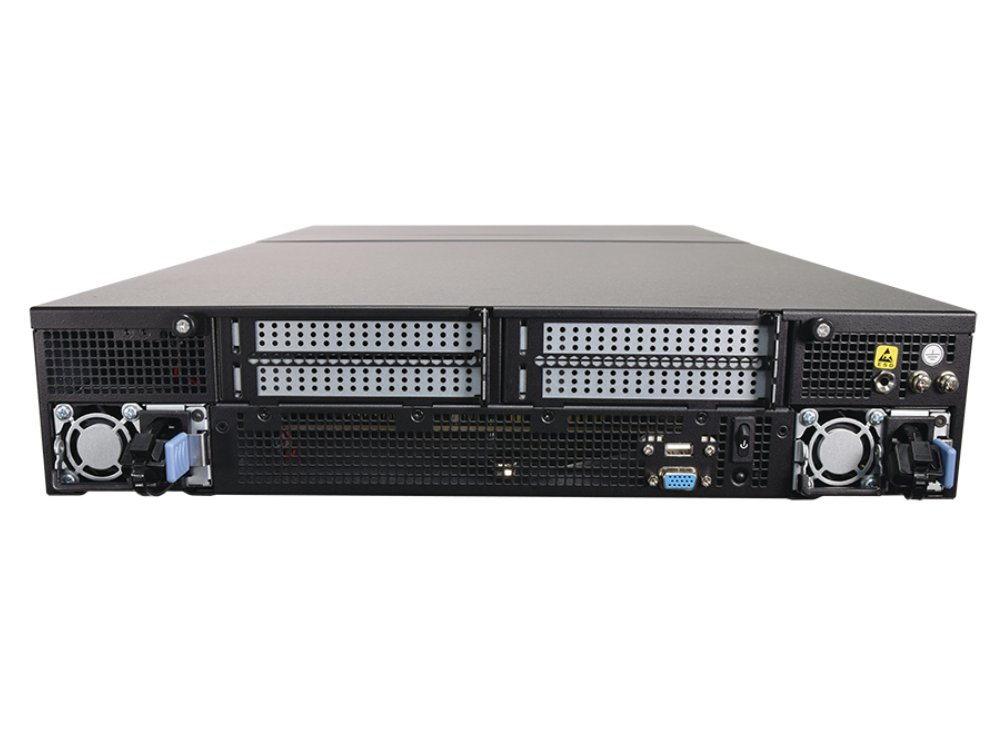

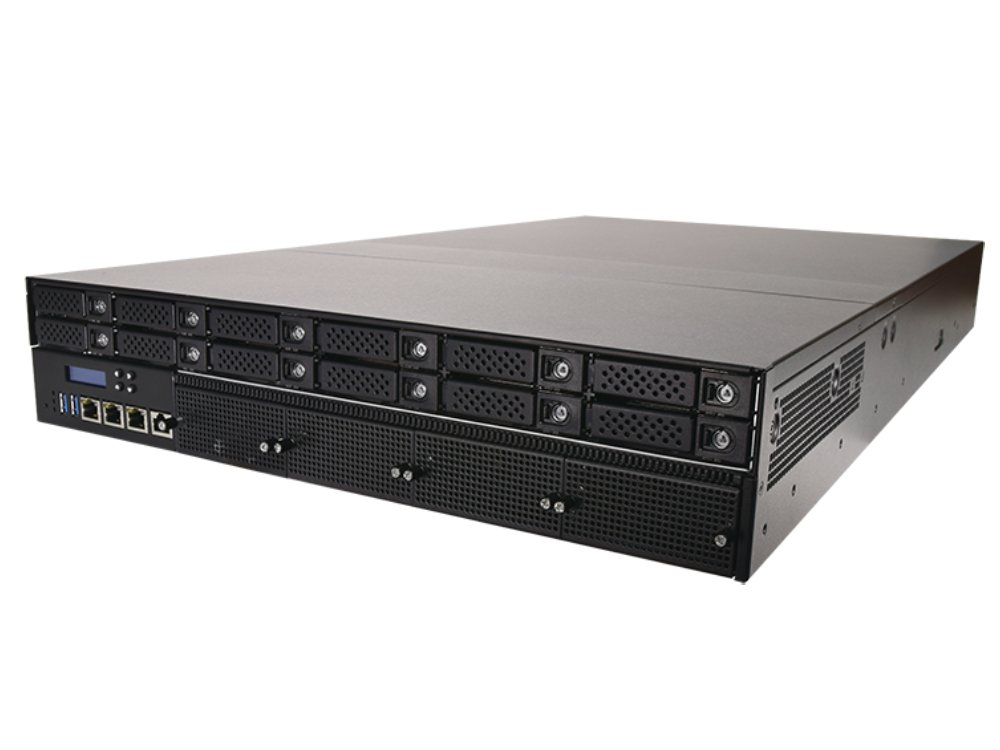

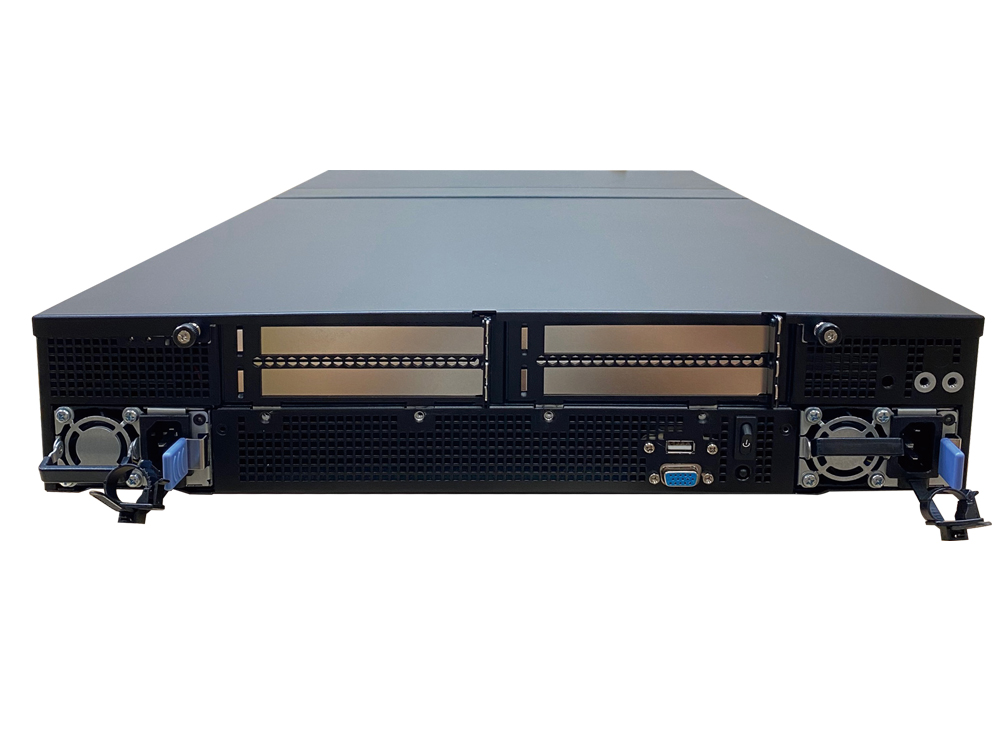

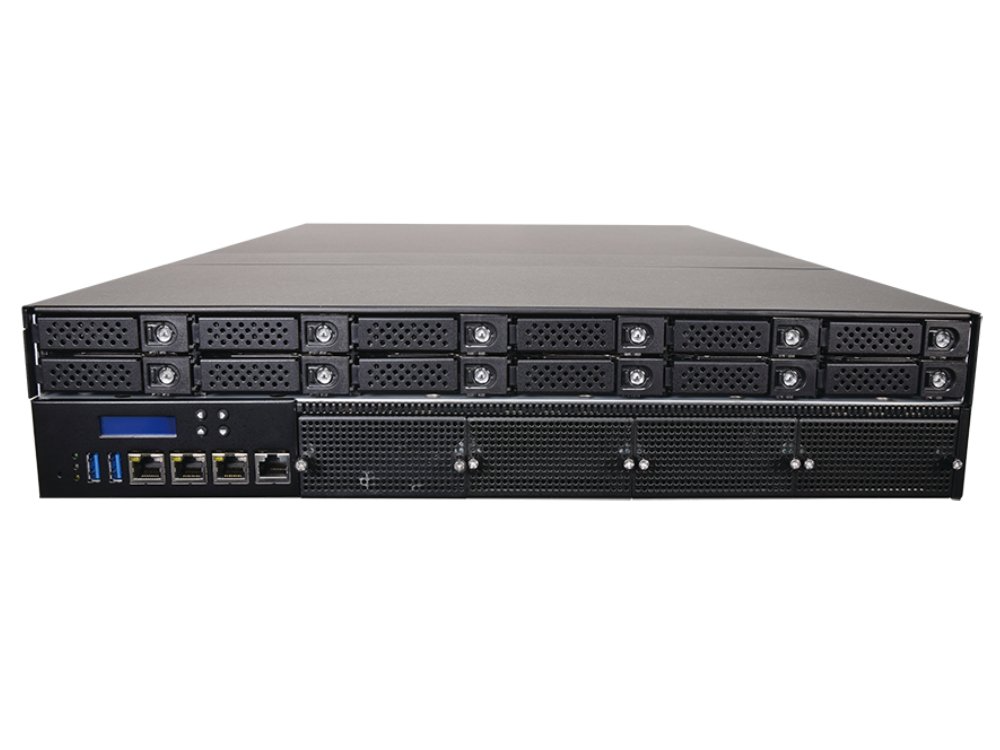

Lanner NCA-6530B Intel Xeon Scalable 2U Rackmount Network Appliance
When network latency spikes or hardware fails, users experience slow applications and costly outages. This appliance tackles those issues by offering dual 5th Gen Intel® Xeon® Scalable processors, up to 1.5 TB of DDR5 memory and 12 hot-swappable NVMe drives, ensuring ample compute, memory and storage capacity. Integrated Intel® QuickAssist accelerates encryption and compression, while redundant 1600 W power supplies and smart fan control maintain uptime, giving you a resilient platform that scales with your business.
Key Features of Lanner NCA-6530B Intel Xeon Scalable 2U Rackmount Network Appliance
- Model: NCA-6530B - identifies the specific configuration for easy reference.
- Form Factor: 2U 19” Rackmount - fits standard rack space while maximising density.
- Processor Options: 5th Gen Intel® Xeon® Scalable Processors (Emerald Rapids) - provides cutting-edge performance for demanding tasks.
- CPU Socket: 2 x LGA4677 - supports dual-socket configurations for scalability.
- Chipset: Intel® C741 - ensures efficient communication between components.
- Security Acceleration: Intel® QuickAssist Technology - offloads cryptographic workloads for faster security processing.
- Memory Technology: DDR5 5600 MT/s RDIMM - delivers high-bandwidth memory access.
- Maximum Memory Capacity: 1536 GB - accommodates extensive virtualization and data-intensive applications.
- NIC Module Slots: 8 - offers ample room for additional network interfaces.
- Power Supply: 1600 W, 1+1 ATX Redundant PSUs - provides continuous power even if one unit fails.
Specifications
|
Model
|
NCA-6530B
|
|
Form Factor
|
2U 19” Rackmount
|
|
Processor Options
|
5th Gen Intel® Xeon® Scalable Processors (Emerald Rapids)
|
|
CPU Socket
|
2 x LGA4677
|
|
Chipset
|
Intel® C741
|
|
Security Acceleration
|
Intel® QuickAssist Technology
|
|
BIOS
|
AMI SPI Flash BIOS
|
|
System Memory
|
|
|
Memory Technology
|
DDR5 5600 MT/s RDIMM
|
|
Maximum Memory Capacity
|
1536 GB
|
|
Memory Slots
|
24 x 288-pin REG DIMM
|
|
Networking
|
|
|
Ethernet Ports
|
2 x GbE RJ45, Intel® i350-AM2
|
|
Bypass
|
Depending on NIC Module Specifications
|
|
NIC Module Slots
|
8
|
|
LOM
|
|
|
I/O Interface
|
1 x RJ45
|
|
OPMA Slot
|
Onboard IPMI
|
|
I/O Interface
|
|
|
Reset Button
|
1
|
|
LED Indicators
|
Power / Status / Storage
|
|
Power Button
|
1 x ATX Power Switch
|
|
Console
|
1 x RJ45
|
|
USB
|
2 x USB 3.0
|
|
LCD Module
|
Yes
|
|
Display
|
1 x VGA (Internal Pin Header)
|
|
Power Input
|
AC Power Inlet on PSU
|
|
Storage
|
|
|
HDD/SSD Support
|
12 x 2.5" NVMe Swappable Drives
|
|
Onboard Slots
|
2 x M.2 NVMe 2280, 1 x M.2 2280 SATA
|
|
Expansion
|
|
|
PCIe Slots
|
2 x PCIe x16 FH/HL Dual Slots (Optional)
|
|
Mini-PCIe
|
Not supported
|
|
SIM Slot
|
Not supported
|
|
Miscellaneous
|
|
|
Watchdog
|
Yes
|
|
Internal RTC with Li Battery
|
Yes
|
|
TPM
|
Optional
|
|
Cooling
|
|
|
Processor Cooling
|
Passive CPU Heatsink
|
|
System Cooling
|
6 x Individual Hot-Swappable Cooling Fans with Smart Fan Control
|
|
Environmental Parameters
|
|
|
Operating Temperature
|
0 to 40°C
|
|
Non-Operating Temperature
|
-20 to 70°C
|
|
Operating Humidity
|
5 to 90% RH
|
|
Non-Operating Humidity
|
5 to 95% RH
|
|
System Dimensions
|
|
|
Dimensions (W x D x H)
|
438 x 760 x 88 mm
|
|
Package Dimensions
|
|
|
Dimensions (W x D x H)
|
588 x 926 x 303 mm
|
|
Power
|
|
|
Power Supply
|
1600 W, 1+1 ATX Redundant PSUs
|
|
Input
|
AC 200 to 240 V, 50 to 60 Hz
|
|
Certification
|
|
|
Approvals and Compliance
|
RoHS, CE, FCC Class A, UL
|
