Keeping a vehicle safe and knowing where it is at any moment is a big worry for many owners. If a car is stolen or a delivery van goes off route, the loss can be costly and stressful. The Lantronix B43H002S tracker gives you real-time location, alerts and a rugged design that works in rain, dust and extreme temperatures, so you can protect assets and stay in control.

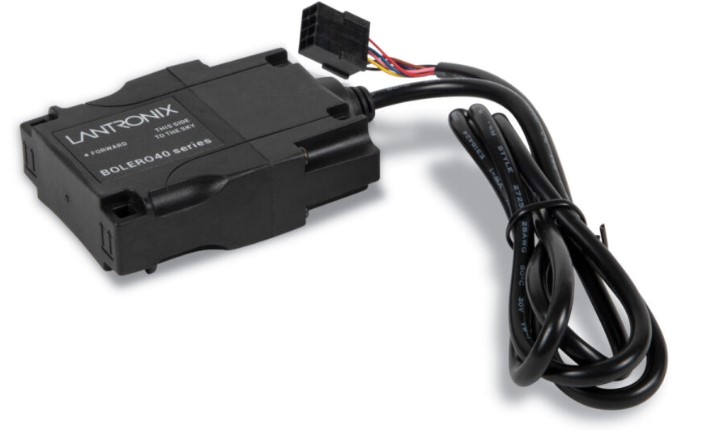

Lantronix B43H002S, EMEA IP68 LTE-M GNSS Vehicle Tracker with Lantronix
Never lose sight of your vehicle again. The Lantronix B43H002S, EMEA IP68 LTE-M GNSS Vehicle Tracker is a compact device that fits under the dash and sends precise GPS data over LTE-M networks. It is built for Europe, supports multiple satellite constellations and can survive water and dust thanks to its IP68 rating. If you need to monitor a fleet, protect a rental car or keep a construction machine safe, this tracker delivers the data you need, and it works with the Lantronix cloud platform for easy management.
Key Features
- LTE-M and NB-IoT cellular support on bands B3, B8, B20 with 2G fallback.
- 72-channel GNSS engine receiving GPS, GLONASS, Galileo and BeiDou signals.
- Position accuracy of 2.5 m for GPS and 4 m for GLONASS.
- Two configurable I/O ports that can act as analog input, digital input or output.
- Built-in 8 g triple-axis accelerometer for motion, tilt and harsh-brake detection.
- IP68 certified fiberglass-reinforced case, dimensions 70 52.5 20.6 mm, weight 118 g.
- Power input 10.8 V to 48 V with a 3.15 Wh backup battery for power loss.
- Support for up to 3 000 geofences and 2 000 waypoints stored on device.
- Programmable timers, triggers and counters (40 total) for custom alerts.
- Full TCP/UDP/SMTP/HTTP stack and Lantronix protocols for seamless cloud communication.
Specifications
| General |
|
| Product Name |
BOLERO43 - Europe |
| Part Number |
B43H002S |
| Device Type |
IP68 LTE-M GNSS Vehicle Tracker |
| Cellular |
|
| Cellular Technology |
4G LTE M & NB1 |
| Cellular Bands |
B3, B8, B20 |
| 2G Fallback |
Band 8, Band 3 |
| Positioning |
|
| Positioning |
GNSS & Accelerometer |
| GNSS Engine |
72-channel GNSS engine |
| Supported GNSS |
GPS/QZSS, GLONASS, Galileo, BeiDou |
| SBAS |
WAAS, EGNOS, MSAS |
| A-GNSS |
AssistNow Online / offline / autonomos |
| Position Accuracy |
2.5 m (GPS) / 4.0 m (GLONASS) |
| Cold Start |
30 s (GPS) / 33 s (GLONASS) |
| Tracking |
-164 dBm (GPS) / -163 dBm (GLONASS) |
| Sensitivity |
-147 dBm (GPS) / -145 dBm (GLONASS) |
| Hardware |
|
| Casing |
Non-flammable fiberglass-reinforced IP68-certified casing |
| Dimensions |
70 × 52.5 × 20.6 mm (without connection cable) |
| Weight |
Approx. 118 g |
| Wire Harness |
1 m with a (2×4) connector at cable's end |
| SDRAM |
16 Mbit |
| Power |
|
| Main Source |
10.8 VDC ~ 48.0 VDC |
| Alternate Source |
Li-ion 3.15 Wh backup battery |
| Interfaces |
|
| SIM Interface |
2FF SIM 1.8 V / 3.0 V × 2 or factory-fitted MFF SIM × 2 |
| Cellular and GNSS Antennas |
Internal |
| RS-232 |
V.24 level on 2 wires |
| I/Os |
Two "versatile", i.e. user-configurable as analogue/digital input or digital output and Ignition sensing |
| Analogue Input |
Max. 32 VDC |
| Digital Output |
Open collector; 100 mA max.; 32 V dc max. |
| Digital Input |
0–32 Vdc; User-programmed high and low thresholds |
| 1-wire Interface |
3.3 VDC for temperature sensor or iButton driver ID |
| CANbus |
Supported |
| Sensors |
|
| Accelerometer |
Built in, ±8 g triple-axis (moving, standing, harsh braking and acceleration, tilt detection) |
| LEDs |
User-configurable (e.g. Cellular, GNSS, Power ... etc.) |
| Firmware Features |
|
| Internet |
TCP / UDP / SMTP / HTTP |
| Embedded TCP/IP Stack |
Client-server application |
| Supported Protocols |
SMS / USSD / TCP/IP / UDP / SMTP / HTTP |
| Lantronix Protocols |
IOP, GSM, AREA, 3DP, BIN |
| Timers / Triggers / Counters |
40 programmable |
| Geofences |
3000 built-in geofences |
| Waypoints |
2000 waypoints (rectangular/circular) |
| Server Support |
Primary and backup servers |
| GSM Features |
GSM/GSM jamming detections |
| Power Saving |
Multi power-saving modes and wake-up conditions |
| Configuration |
Intelligent and flexible configuration settings |
| Alert Notification |
Rules based on combined events/states |
| Cloud Services |
|
| Cloud Platform |
Lantronix Percepxion™ platform |
