Imagine a fleet that talks to you in real time, even in the toughest places. The Lantronix FOX5, F54R00FS Edge-Powered Telematics Industrial IoT Gateway does exactly that. It gathers vehicle data, sends it over cellular networks, and lets you manage every asset from a single dashboard. If you struggle with lost signals, delayed reports, or costly hardware upgrades, this gateway is the answer you need.

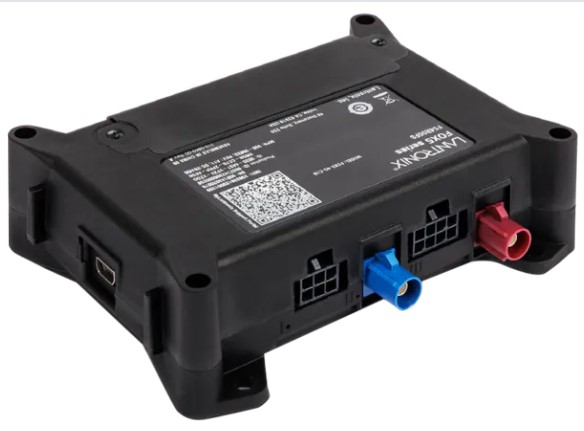

Lantronix FOX5, F54R00FS Edge-Powered Telematics Industrial IoT Gateway
Many industrial users cannot rely on traditional routers because they lack ruggedness, precise GPS, and low-power operation. Without a reliable edge device, data gaps appear, leading to missed maintenance windows and higher downtime. This gateway solves the problem by combining 4G LTE Cat 1 bis, multi-channel GNSS, and a built-in battery, so you get continuous, accurate telemetry even when power is unstable. The result is faster decisions, lower operating costs, and a smoother workflow.
Key Features
- 4G LTE Cat 1 bis with support for 20+ global bands.
- Multi-channel GNSS with dead reckoning and A-GPS.
- Internal 1000 mAh rechargeable battery plus sleep mode.
- Configurable 3 digital/analog I/O and 1 ignition input.
- RS-485, RS-232, CAN-bus, 1-Wire, USB 2.0, and mini-USB for accessories.
- BLE 5.4 for local device pairing.
- Secure boot and cryptographic co-processor for data integrity.
- 32 MB RAM / 64 MB flash with LUA and PFAL edge programming.
- Supports Modbus, MQTT, TCP/UDP, HTTP, SMTP, J1939 and more.
- Programmable geofences (3000), waypoints (2000) and alarms (200).
Specifications
| General |
|
| Model |
F54R00FS |
| Warranty |
2-Year Limited |
| Device Management |
Lantronix Percepxion™ |
| Cellular |
|
| Cellular technology |
4G LTE Cat 1 bis |
| Cellular band support |
B1,2,3,4,5,7,8,12,13,18,19,20,25,26,28,66,34,38,39,40,41 |
| Certifications |
CE, UKCA, PSTI, CB, E-Mark, Telec |
| Multi-Channel GNSS |
|
| Dead Reckoning |
Yes |
| A-GPS (online/offline/autonomous) |
Yes |
| Accuracy |
GPS: 1.5 m, GLONASS: 1.5 m |
| Acquisition / Sensitivity |
Cold Start: GPS <32 s, GLONASS <32 s |
| |
Tracking: GPS -162 dBm, GLONASS -162 dBm |
| |
Sensitivity: GPS -145 dBm, GLONASS -145 dBm |
| GPS Operational Limits |
Velocity: GPS 515 m/s, GLONASS 515 m/s |
| |
Altitude: GPS 18,000 m, GLONASS 18,000 m |
| |
Update Rate: GPS 10 Hz, GLONASS 10 Hz |
| Antennas |
Internal & External w/ automatic/manual switch |
| Power |
|
| Input Power |
+10.8 V – 60 V DC |
| Battery |
Internal 1000 mAh rechargeable battery |
| Power Consumption |
Normal Operation: 60 mA @ 12 VDC |
| |
Sleep Mode: <2.2 mA @ 12 VDC |
| Environmental Data |
|
| Operating Temperature |
-30°C to +85°C |
| Storage Temperature |
-30°C to +85°C |
| Cellular Temperature |
-30°C to +85°C |
| Battery Discharging Temperature |
-20°C to +60°C |
| Charging Temperature |
0°C to +45°C |
| Interfaces |
|
| Configurable Digital/Analog I/O |
3 |
| Pre-defined Digital Input |
1 (Ignition) |
| Programmable LEDs |
3 |
| Serial Ports |
1x RS-485 & 1x RS-232 or 2x RS-232 |
| 1-Wire |
1 |
| CAN-bus |
1 |
| USB 2.0 |
1 |
| 10-pin Mini-USB |
Yes, for IOBOX accessories |
| Sensor |
|
| Accelerometer |
Yes |
| 3DG |
±8g (programmable) |
| SIM Card |
|
| SIM Card |
2x Nano-SIM Holder |
| Security |
|
| Cryptographic co-processor |
Yes |
| Secure Boot |
Yes |
| Bluetooth |
|
| Bluetooth |
BLE 5.4 |
| System Feature |
|
| RAM / Flash |
32 MB / 64 MB |
| Real-time Clock |
Yes |
| Edge Programming |
LUA Scripts & PFAL Programming Language |
| Protocols |
|
| Modbus |
Yes |
| CAN |
Yes |
| 1-Wire |
Yes |
| J1939 |
Yes |
| MQTT |
Yes |
| TCP/UDP |
Yes |
| HTTP |
Yes |
| SMTP |
Yes |
| Software Features |
|
| Programmable Geofences |
3000 |
| Programmable Waypoints |
2000 |
| Programmable Alarms |
200 |
