Developing modern car electronics is hard. Engineers must handle many sensors, cameras, and safety rules while keeping power low. If the platform is not powerful enough, testing takes longer and bugs appear later. The Lantronix QAM8255P Ride 4.0 SX Automotive Development Platform solves these issues. It gives you a complete, ready-to-use board that matches the latest automotive standards, so you can focus on software instead of hardware.

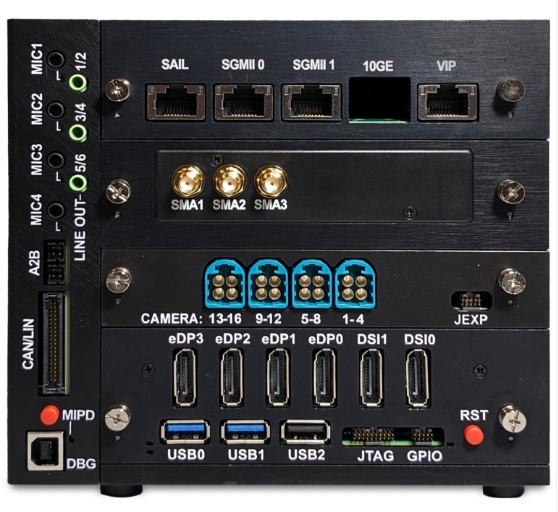

Lantronix QAM8255P Ride 4.0 SX Automotive Development Platform with Lantronix
This board is a full-size reference design for Snapdragon automotive SoC. It packs a fast CPU, high-speed memory, and many I/O options. Developers who need to prototype infotainment, ADAS, or digital cockpit can start right away. Without this platform, you would have to design each circuit yourself, which costs time and money. Lantronix makes the process simple and reliable.
Key Features
- Quad-core Qualcomm Kryo Gold Prime CPU for high performance.
- Qualcomm Adreno 663 GPU for smooth graphics on multiple screens.
- Hexagon Tensor Processor with HVX and HMX for AI acceleration.
- Six channels of 3200 MHz LPDDR5 SDRAM (3 x 12 GB).
- Two 128 GB UFS 3.1 drives and optional NVMe SSD slot.
- Four DisplayPort outputs and two 4-lane MIPI-DSI links.
- Four mini-Quad FAKRA camera connectors with Spectra 690 ISP.
- Eight CAN-FD interfaces and two LIN ports for vehicle networking.
- Three high-speed I2S audio channels and six line-out channels.
- Safety Island subsystem with quad Cortex-R52 CPU for functional safety.
Specifications
| General |
|
| Product |
Ride SX 4.0 |
| Power |
|
| Input Voltage |
+6 VDC to +20 VDC |
| Typical Input Voltage |
+12 VDC typical |
| SoC |
|
| SoC |
Snapdragon Automotive SoC - available with SA8255P |
| Memory |
|
| LPDDR5 |
3 × 12 GB |
| Storage |
|
| UFS Storage |
Two 128 GB UFS 3.1 |
| M.2 Storage |
M.2 PCIe slot for optional NVMe SSD |
| NOR Flash |
Octal SPI NOR |
| USB |
|
| USB 3.1 |
Two USB 3.1 type A |
| USB 2.0 |
One USB 2.0 type A |
| PCIe |
|
| PCIe Gen4 x2 |
One PCIe Gen4 x2 |
| PCIe Gen4 x4 |
One PCIe Gen4 x4 |
| Cameras / Video Input |
|
| Camera Connectors |
Four mini-Quad FAKRA connect |
| Displays / Video Output |
|
| Display Outputs |
Four DisplayPorts |
| Sensors |
|
| Sensor Interface |
One sensor card: GenX connector |
| GNSS |
|
| GNSS |
Qualcomm® SiRFStar™ Location V |
| Audio |
|
| Standard I2S |
Seven standard I2S |
| High Speed I2S |
Three high speed I2S |
| Radio |
AM / FM / DAB |
| Line Out |
Six channel line out |
| Analog / Mic Inputs |
Four analog/mic inputs |
| A2B |
Two ADI A2B master nodes |
| Wired Networking |
|
| RJ45 |
RJ45 port connected to Safety Island Subsystem |
| RJ45 |
RJ45 port connected to Vehicle Interface Processor (VIP) |
| RJ45 |
Two RJ45 ports connected to SoC's SGMII ports |
| CAN-FD |
Six CAN-FD: SoC |
| CAN-FD (Partial Networking) |
Two CAN-FD: SoC – Partial Networking |
| CAN-FD (VIP) |
Two CAN-FD: VIP – Partial Networking |
| LIN |
Two LIN - VIP |
| Wireless Networking |
|
| Wi-Fi and Bluetooth |
Via add-on card |
| Test and Debug |
|
| JTAG / SWD |
Supported |
| UART |
Supported |
| Test Automation |
Embedded ALPACA PSoC |
| Processor |
|
| CPU |
Quad Qualcomm® Kryo™ Kryo Gold Prime Cores |
| GPU |
|
| GPU |
Qualcomm® Adreno™ 663 GPU |
| DSP |
|
| DSP |
Qualcomm® Hexagon™ Tensor Processor integrated with Qualcomm Hexagon DSP |
| HVX |
Quad Qualcomm Hexagon Vector eXtensions (HVX) processor |
| HMX |
Dual Qualcomm Hexagon Matrix eXtensions (HMX) coprocessors |
| Safety Island (SAIL) Subsystem |
|
| SAIL |
Dedicated Safety Island (SAIL) Subsystem equipped with quad Cortex-R52 CPU |
| Multimedia |
|
| Display Processor |
Dual Adreno DPU1199 |
| MIPI-DSI |
Two 4-lane MIPI-DSI |
| Display Interfaces |
Four embedded DisplayPort (eDP) / DisplayPort v1.4 |
| Camera |
|
| ISP |
Qualcomm Spectra 690 ISP |
| MIPI-CSI |
Four MIPI-CSI interfaces, configurable as D-PHY or C-PHY |
| Video |
|
| VPU |
Adreno VPU 670 for high-quality, ultra HD video encode and decode |
| Decode |
Decode up to 4 × 4k60 or 4k240; AV1, HEVC, H.264, H.265, VP9, MPEG-2 |
| Encode |
Encode up to 2 × 4k60 or 4k120; HEVC, H.264 and H.265 |
| Memory |
|
| Memory Architecture |
Six-channel high-speed memory - 3200 MHz LPDDR5 SDRAM (6 × 16-bit) |
| Flash |
|
| UFS |
Via UFS: Two UFS 3.1 |
| NOR Flash |
Via Octal-SPI/Quad-SPI: NOR flash (up to 166 MHz) as SAIL domain boot up device |
| NVMe |
Via PCIe: NVMe (non-bootable) |
| Peripherals |
|
| USB |
Two USB 3.1 and one USB 2.0 |
| PCIe |
One 2-lane and one 4-lane PCIe Gen4 |
| CAN-FD |
Eight SAIL domain CAN-FD interfaces |
| SGMII |
Two SGMII 2.5 Gbps interfaces |
| RGMII |
One SAIL domain RGMII interface |
