Imagine building a car that can learn, see and talk without writing a single line of low-level code. The Lantronix QAM8775P Ride 4.0 SX Automotive Development Platform gives you that power. It is a complete hardware kit for engineers who need to prototype advanced driver-assist features, infotainment screens or autonomous sensors. If you have struggled with fragmented boards, missing interfaces or unreliable safety zones, this platform solves those gaps so you can focus on software and testing.

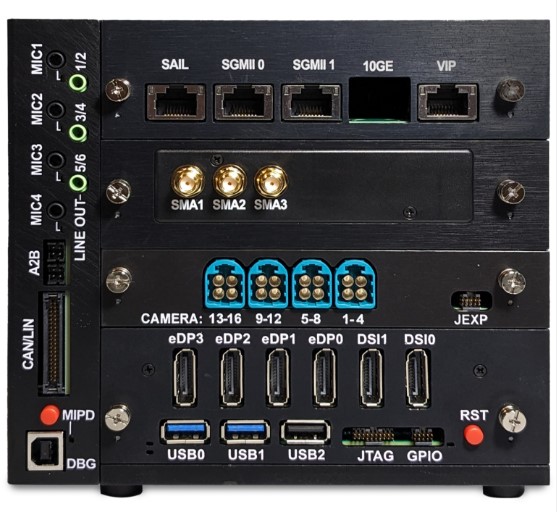

Lantronix QAM8775P Ride 4.0 SX Automotive Development Platform
The platform removes the headache of gathering separate processors, memory and I/O modules. Without a unified solution, developers waste time wiring CAN, Ethernet and camera links, and risk missing safety certifications. This board combines a high-performance Qualcomm Kryo CPU, dedicated safety island, multiple display and camera ports, and fast storage in a single, rugged package. You get a ready-to-run environment that meets automotive standards and speeds up your time-to-market.
Key Features
- Quad-core Qualcomm Kryo Gold Prime CPU for high compute power.
- Qualcomm Adreno 663 GPU and dual Adreno DPU1199 for graphics and AI.
- Six-channel 3200 MHz LPDDR5 memory (3 x 12 GB).
- Two 128 GB UFS 3.1 storage chips plus optional M.2 NVMe slot.
- Four mini-Quad FAKRA camera connectors with Spectra 690 ISP.
- Four DisplayPort outputs supporting 4K video.
- Dedicated Safety Island with quad Cortex-R52 CPUs.
- Two PCIe Gen4 slots (x2 and x4) for expansion.
- Six CAN-FD interfaces and two LIN ports for vehicle networking.
- Three high-speed I2S and seven standard I2S audio channels.
- Dual RJ45 Ethernet ports linked to safety and vehicle interface processors.
- Supported JTAG, SWD and UART for debugging and test automation.
Specifications
| General |
|
| Product |
Ride SX 4.0 |
| Power |
|
| Input Voltage |
+6 VDC to +20 VDC |
| Typical Input Voltage |
+12 VDC typical |
| SoC |
|
| SoC |
SA8775P SoC |
| Memory |
|
| LPDDR5 |
3 × 12 GB |
| Storage |
|
| UFS Storage |
Two 128 GB UFS 3.1 |
| M.2 Storage |
M.2 PCIe slot for optional NVMe SSD |
| NOR Flash |
Octal SPI NOR |
| USB |
|
| USB 3.1 |
Two USB 3.1 type A |
| USB 2.0 |
One USB 2.0 type A |
| PCIe |
|
| PCIe Gen4 x2 |
One PCIe Gen4 x2 |
| PCIe Gen4 x4 |
One PCIe Gen4 x4 |
| Cameras / Video Input |
|
| Camera Connectors |
Four mini-Quad FAKRA connect |
| Displays / Video Output |
|
| Display Outputs |
Four DisplayPorts |
| Sensors |
|
| Sensor Interface |
One sensor card: GenX connector |
| GNSS |
|
| GNSS |
Qualcomm® SiRFStar™ Location V |
| Audio |
|
| Standard I2S |
Seven standard I2S |
| High Speed I2S |
Three high speed I2S |
| Radio |
AM / FM / DAB |
| Line Out |
Six channel line out |
| Analog / Mic Inputs |
Four analog/mic inputs |
| A2B |
Two ADI A2B master nodes |
| Wired Networking |
|
| RJ45 |
RJ45 port connected to Safety Island Subsystem |
| RJ45 |
RJ45 port connected to Vehicle Interface Processor (VIP) |
| RJ45 |
Two RJ45 ports connected to SoC's SGMII ports |
| CAN-FD |
Six CAN-FD: SoC |
| CAN-FD (Partial Networking) |
Two CAN-FD: SoC – Partial Networking |
| CAN-FD (VIP) |
Two CAN-FD: VIP – Partial Networking |
| LIN |
Two LIN - VIP |
| Wireless Networking |
|
| Wi-Fi and Bluetooth |
Via add-on card |
| Test and Debug |
|
| JTAG / SWD |
Supported |
| UART |
Supported |
| Test Automation |
Embedded ALPACA PSoC |
| Processor |
|
| CPU |
Quad Qualcomm® Kryo™ Kryo Gold Prime Cores |
| GPU |
|
| GPU |
Qualcomm® Adreno™ 663 GPU |
| DSP |
|
| DSP |
Qualcomm® Hexagon™ Tensor Processor integrated with Qualcomm Hexagon DSP |
| HVX |
Quad Qualcomm Hexagon Vector eXtensions (HVX) processor |
| HMX |
Dual Qualcomm Hexagon Matrix eXtensions (HMX) coprocessors |
| Safety Island (SAIL) Subsystem |
|
| SAIL |
Dedicated Safety Island (SAIL) Subsystem equipped with quad Cortex-R52 CPU |
| Multimedia |
|
| Display Processor |
Dual Adreno DPU1199 |
| MIPI-DSI |
Two 4-lane MIPI-DSI |
| Display Interfaces |
Four embedded DisplayPort (eDP) / DisplayPort v1.4 |
| Camera |
|
| ISP |
Qualcomm Spectra 690 ISP |
| MIPI-CSI |
Four MIPI-CSI interfaces, configurable as D-PHY or C-PHY |
| Video |
|
| VPU |
Adreno VPU 670 for high-quality, ultra HD video encode and decode |
| Decode |
Decode up to 4 × 4k60 or 4k240; AV1, HEVC, H.264, H.265, VP9, MPEG-2 |
| Encode |
Encode up to 2 × 4k60 or 4k120; HEVC, H.264 and H.265 |
| Memory |
|
| Memory Architecture |
Six-channel high-speed memory - 3200 MHz LPDDR5 SDRAM (6 × 16-bit) |
| Flash |
|
| UFS |
Via UFS: Two UFS 3.1 |
| NOR Flash |
Via Octal-SPI/Quad-SPI: NOR flash (up to 166 MHz) as SAIL domain boot up device |
| NVMe |
Via PCIe: NVMe (non-bootable) |
| Peripherals |
|
| USB |
Two USB 3.1 and one USB 2.0 |
| PCIe |
One 2-lane and one 4-lane PCIe Gen4 |
| CAN-FD |
Eight SAIL domain CAN-FD interfaces |
| SGMII |
Two SGMII 2.5 Gbps interfaces |
| RGMII |
One SAIL domain RGMII interface |
