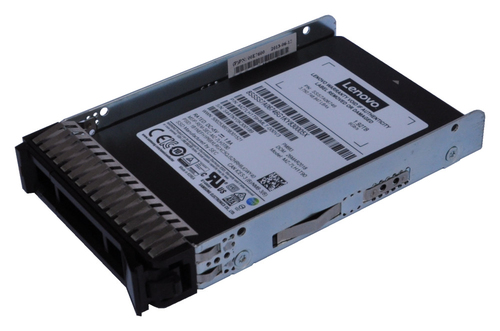

The Lenovo ThinkSystem PM883 Entry SATA 6Gb solid-state drives (SSDs) in capacities ranging from 240 GB to 7.86 TB are general-purpose SSDs based on the Samsung PM883 platform. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
This product guide provides essential presales information to understand the PM883 Entry SATA SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
Specifications
| Features |
| Certification |
UL TUV FCC CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI) |
| Mean time between failures (MTBF) |
2000000 h |
| Uncorrectable Bit Error Rate (UBER) |
< 1 per 10^17 bits read |
| Hot-swap |
Yes |
| Write latency |
70 µs |
| Read latency |
120 µs |
| Random write (4KB) |
14000 IOPS |
| Random read (4KB) |
98000 IOPS |
| Write speed |
320 MB/s |
| Read speed |
550 MB/s |
| Data transfer rate |
6 Gbit/s |
| Component for |
Server/workstation |
| NVMe |
No |
| Interface |
Serial ATA III |
| SSD form factor |
2.5" |
| SSD capacity |
240 GB |
| Power |
| Power consumption (write) |
2.6 W |
| Power consumption (read) |
2.3 W |
| Weight & dimensions |
| Weight |
58 g |
| Height |
7 mm |
| Depth |
100 mm |
| Width |
70 mm |
| Packaging data |
| Package weight |
433 g |
| Package height |
63 mm |
| Package depth |
174 mm |
| Package width |
133 mm |
| Operational conditions |
| Operating shock |
1500 G |
| Operating vibration |
2.17 G |
