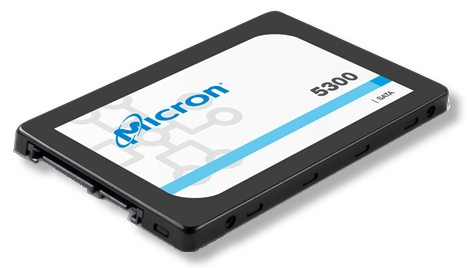

The 5300 Entry SATA solid-state drives (SSDs) are new SSDs for ThinkSystem servers. The drives use Micron 96-layer 3D NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
This product guide provides essential presales information to understand the 5300 Entry SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
Specifications
| Features |
| Mean time between failures (MTBF) |
3000000 h |
| Hot-swap |
Yes |
| Write latency |
300 µs |
| Read latency |
175 µs |
| Random write (4KB) |
40 IOPS |
| Random read (4KB) |
67 IOPS |
| Write speed |
310 MB/s |
| Read speed |
540 MB/s |
| Data transfer rate |
6 Gbit/s |
| Security algorithms |
256-bit AES |
| Hardware encryption |
Yes |
| Component for |
Server/workstation |
| Memory type |
3D TLC NAND |
| NVMe |
No |
| Interface |
Serial ATA III |
| SSD form factor |
2.5" |
| SSD capacity |
240 GB |
| Power |
| Power consumption (write) |
3 W |
| Power consumption (read) |
2.5 W |
| Weight & dimensions |
| Weight |
70 g |
| Operational conditions |
| Vibration resistance |
3.13 G |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Other features |
| Compliance certificates |
RoHS |
| Operating temperature (T-T) |
0 - 70 °C |
