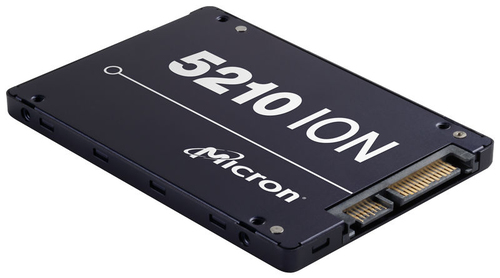

The 5210 Entry SATA QLC solid-state drives (SSDs) are low-cost SSDs for ThinkSystem servers. The drives use Micron 64-layer 3D QLC NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for large-capacity sequential read-intensive applications such as AI and machine learning data lakes, real-time analytics, and big data.
This product guide provides essential presales information to understand the 5210 Entry SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
The 5210 Entry SATA solid-state drives (SSDs) are low-cost SSDs for ThinkSystem servers. The drives use Micron 64-layer 3D QLC NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for large-capacity sequential read-intensive applications such as AI and machine learning data lakes, real-time analytics, big data, and media streaming.
Specifications
| Features |
| Mean time between failures (MTBF) |
2000000 h |
| Hot-swap |
Yes |
| Write latency |
530 µs |
| Read latency |
310 µs |
| Random write (4KB) |
2 IOPS |
| Random read (4KB) |
70 IOPS |
| Write speed |
165 MB/s |
| Read speed |
540 MB/s |
| Data transfer rate |
6 Gbit/s |
| Security algorithms |
256-bit AES |
| Hardware encryption |
Yes |
| Component for |
Server/workstation |
| Memory type |
QLC 3D NAND |
| NVMe |
No |
| Interface |
Serial ATA III |
| SSD form factor |
2.5" |
| SSD capacity |
1.92 TB |
| Power |
| Power consumption (write) |
3.9 W |
| Power consumption (read) |
2.8 W |
| Weight & dimensions |
| Weight |
70 g |
| Height |
7 mm |
| Depth |
100 mm |
| Width |
70 mm |
| Operational conditions |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Other features |
| Compliance certificates |
RoHS |
| Operating temperature (T-T) |
0 - 70 °C |
