Unleash your competitive edge with the Lenovo Legion Pro 5 – a laptop built to dominate every match and keep you ahead of the curve. Powered by a 16‑core AMD Ryzen 9 processor and an NVIDIA GeForce RTX 5070 GPU, this machine delivers raw speed and flawless visuals that turn every game into a victory.

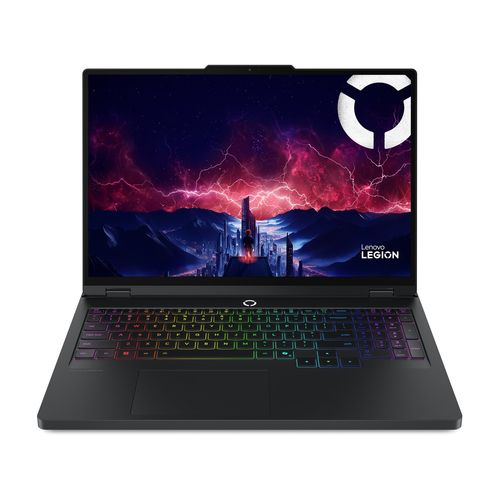

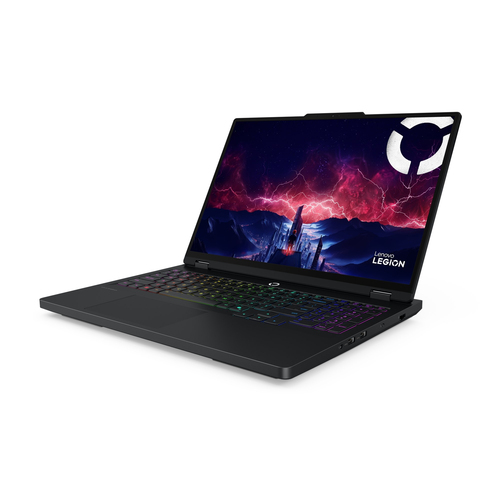

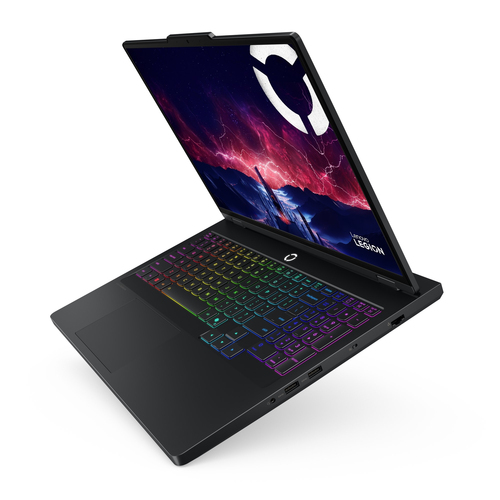

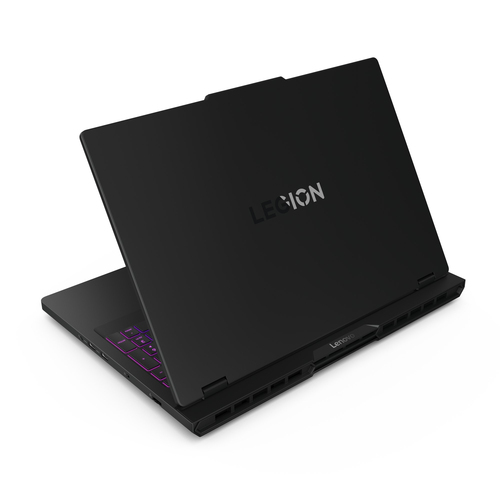

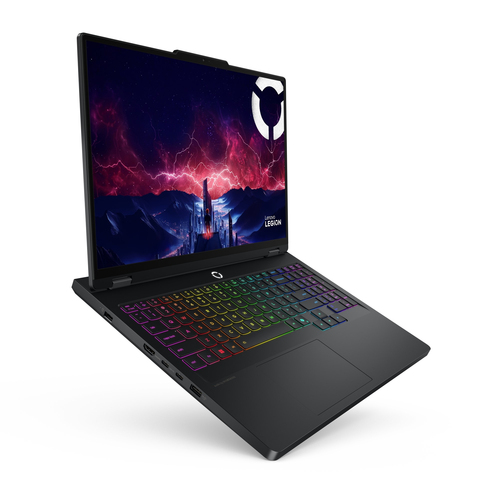

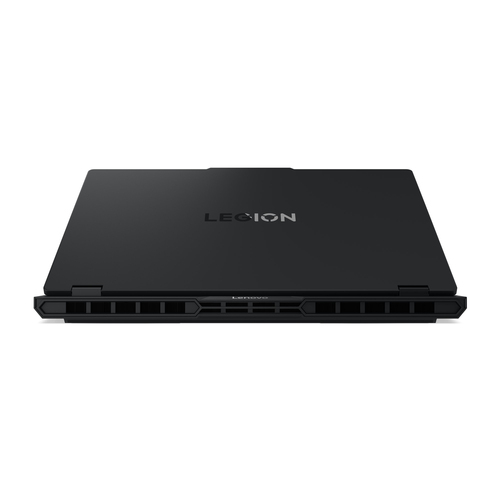

Lenovo Legion Pro 5 16AFR10 AMD Ryzen 9 32GB/1TB 16 Inch QHD Laptop - 83F20003UK
Designed for esports champions, the Legion Pro 5 features a 16‑inch OLED QHD display with 165 Hz refresh, Dolby Vision HDR, 500 cd/m² brightness and 100 % DCI‑P3 color coverage. The screen’s low latency and high contrast let you spot enemies in the darkest shadows, giving you the decisive advantage you need.
Stay cool under pressure thanks to Legion Coldfront Hyper – turbo‑charged fans and massive 3D copper heat pipes that keep the system quiet while maintaining optimal temperatures. With a massive 80 Wh battery and fast‑charging support, you can game for hours without hunting for an outlet.
The laptop’s 32 GB DDR5‑5600 memory and 1 TB PCIe 4.0 SSD ensure instant load times and smooth multitasking. A 24‑zone RGB keyboard with Copilot key, Wi‑Fi 7, Bluetooth 5.4, and a suite of ports including HDMI 2.1, Thunderbolt 4, and USB‑C give you the connectivity and customization you expect from a pro‑grade machine.
Benefits
- Blazing‑fast AMD Ryzen 9 16‑core CPU for unmatched gaming performance.
- Stunning OLED QHD display with 165 Hz refresh and Dolby Vision HDR for crystal‑clear visuals.
- Advanced Legion Coldfront Hyper cooling keeps the laptop quiet and temperatures low.
- Large 32 GB DDR5 memory and 1 TB PCIe 4.0 SSD eliminate lag and loading delays.
Uses of the product
- High‑intensity esports titles that demand low latency and high frame rates.
- Content creation and video editing with fast rendering and color‑accurate display.
- VR gaming and immersive simulations thanks to RTX 5070 and VR‑ready certification.
- Professional multitasking, such as streaming, coding, and design work on the go.
Features
- AMD Ryzen 9 9955HX processor (16 cores, 32 threads, up to 5.4 GHz boost).
- NVIDIA GeForce RTX 5070 graphics with 8 GB GDDR7 memory and AI‑enhanced DLSS.
- Legion Coldfront Hyper cooling system with turbo fans and vacuum‑sealed 3D copper heat pipes.
- 24‑zone RGB backlit keyboard, Copilot key, and privacy shutter webcam for secure communication.
Specifications
| Design |
| Introduction month |
July |
| Introduction year |
2025 |
| Housing material |
Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
| Form factor |
Clamshell |
| Colour name |
Eclipse Black |
| Product colour |
Black |
| Product type |
Laptop |
| Display |
| High Dynamic Range (HDR) technology |
Dolby Vision |
| High Dynamic Range (HDR) supported |
Yes |
| Maximum refresh rate |
165 Hz |
| Colour gamut |
100% |
| RGB colour space |
DCI-P3 |
| Display brightness |
500 cd/m² |
| Display surface |
Gloss |
| LED backlight |
Yes |
| Native aspect ratio |
16:10 |
| Panel type |
OLED |
| HD type |
WQXGA |
| Touchscreen |
No |
| Display resolution |
2560 x 1600 pixels |
| Display diagonal |
40.6 cm (16") |
| Processor |
| Processor cache |
64 MB |
| Processor frequency |
2.5 GHz |
| Processor boost frequency |
5.4 GHz |
| Processor threads |
32 |
| Processor cores |
16 |
| Processor model |
9955HX |
| Processor family |
AMD Ryzen™ 9 |
| Processor manufacturer |
AMD |
| Memory |
| Maximum internal memory |
32 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 16 GB |
| Memory clock speed |
5600 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
32 GB |
| Storage |
| Card reader integrated |
No |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| SSD interface |
PCI Express 4.0 |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Total storage capacity |
1 TB |
| Graphics |
| NVIDIA Max-Q |
Yes |
| On-board graphics card model |
AMD Radeon 610M |
| On-board graphics card family |
AMD Radeon |
| On-board GPU manufacturer |
AMD |
| Discrete graphics memory type |
GDDR7 |
| Discrete graphics card memory |
8 GB |
| Discrete graphics card model |
NVIDIA GeForce RTX 5070 |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Speaker power |
2 W |
| Speakers manufacturer |
Harman Kardon |
| Number of built-in speakers |
2 |
| Audio chip |
Realtek ALC3306 |
| Camera |
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Front camera resolution (numeric) |
5 MP |
| Front camera |
Yes |
| Network |
| WWAN |
Not installed |
| Bluetooth version |
5.4 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Antenna type |
2x2 |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Sleep-and-Charge |
Yes |
| Combo headphone/mic port |
Yes |
| Thunderbolt 4 ports quantity |
1 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB4 Gen 3x2 ports quantity |
0 |
| USB4 Gen 2x2 ports quantity |
0 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
0 |
| Performance |
| Motherboard chipset |
AMD SoC |
| Virtual Reality (VR) ready |
Yes |
| Keyboard |
| Copilot key |
Yes |
| Keyboard language |
English |
| Keyboard backlit colour |
RGB |
| Keyboard backlit zone |
24-zone RGB |
| Keyboard backlit |
Yes |
| Numeric keypad |
Yes |
| Pointing device |
Touchpad |
| Software |
| Trial software |
Office |
| Operating system language |
English |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Home |
| Battery |
| Fast charging |
Yes |
| Battery capacity |
80 Wh |
| Battery capacity |
80 Wh |
| Number of battery cells |
4 |
| Battery technology |
Lithium Polymer (LiPo) |
| Power |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| AC adapter input voltage |
100 - 240 V |
| AC adapter frequency |
50/60 Hz |
| AC adapter power |
245 W |
| Security |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Fingerprint reader |
No |
| Operational conditions |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
8 - 95% |
| Storage temperature (T-T) |
5 - 43 °C |
| Operating temperature (T-T) |
5 - 35 °C |
| Certificates |
| Certification |
RoHS |
| Weight & dimensions |
| Height (rear) |
2.6 cm |
| Height (front) |
2.17 cm |
| Depth |
268.1 mm |
| Width |
364.4 mm |
| Weight |
2.5 kg |
| Packaging data |
| Package weight |
4.18 kg |
| Package height |
83 mm |
| Package depth |
342 mm |
| Package width |
541 mm |
| Packaging content |
| AC adapter included |
Yes |
| Other features |
| Internal memory |
32 GB |
| Manufacturer |
Lenovo |
| Maximum internal memory |
32 GB |
| Operating temperature (T-T) |
5 - 35 °C |
| Package weight |
4.18 kg |
| Warranty period |
1 year(s) |
