Unleash the power of a true mobile workstation and dominate every project with the Lenovo ThinkPad P16s Gen 4. This laptop delivers desktop‑class performance in a portable 16‑inch chassis, so you can create, compute, and collaborate without compromise.

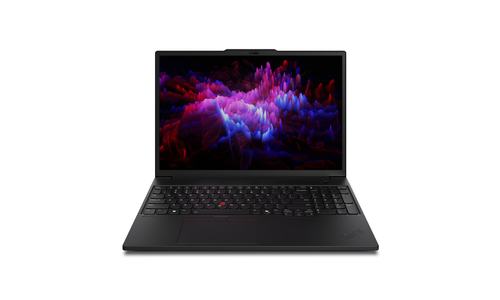

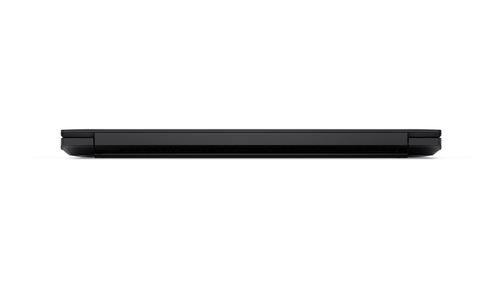

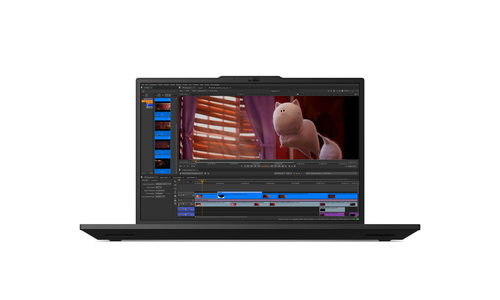

Lenovo ThinkPad P16s Gen 4, 16", 32GB/1TB, Intel Core Ultra 9,Windows 11 Laptop
Equipped with the latest Intel Core Ultra 9 processor, up to 5.4 GHz turbo speed, and 32 GB DDR5 memory, the P16s handles intensive CAD, BIM, and AI workloads effortlessly. A 1 TB PCIe 5.0 SSD provides lightning‑fast storage, while the Intel Arc 140T graphics ensure smooth rendering and video playback.

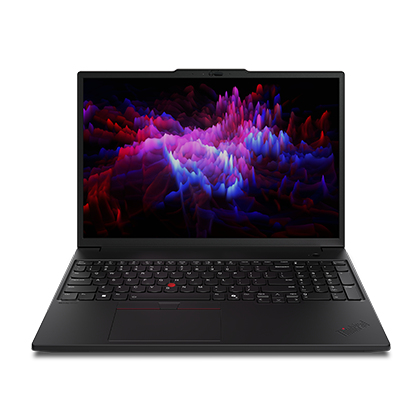

The 16‑inch IPS display offers a crisp 1920 × 1200 resolution, 400 cd/m² brightness, and an anti‑glare surface for comfortable viewing in any lighting. With Wi‑Fi 7, optional 4G, and two Thunderbolt 4 ports, you stay connected and can power multiple peripherals on the go.
Security is built in with Intel vPro, TPM 2.0, fingerprint reader, and a privacy shutter camera. A 75 Wh battery with fast charging keeps you productive for hours, and the spill‑resistant backlit keyboard with numeric keypad lets you work confidently wherever you are.
Benefits
- AI‑ready performance accelerates document automation and video conferencing.
- ISV certifications guarantee reliable operation of CAD, BIM, and creative software.
- Long‑lasting 75 Wh battery and fast charging keep you productive all day.
- Robust security features protect your data with vPro, TPM, and biometric login.
Uses of the product
- Professional 3D modeling and engineering with CAD and BIM applications.
- High‑definition video meetings and collaborative design reviews.
- AI‑driven data analysis, image processing, and machine‑learning tasks.
- On‑the‑road content creation, rendering, and multitasking for freelancers.
Features
- Intel Core Ultra 9 (16 cores, 5.4 GHz boost) with Intel AI Boost NPU.
- 32 GB DDR5‑5600 dual‑channel memory, expandable to 96 GB.
- 1 TB PCIe 5.0 NVMe SSD for ultra‑fast storage and rapid file access.
- Intel Arc 140T graphics, Wi‑Fi 7, two Thunderbolt 4 ports, HDMI 2.1, and USB‑C Power Delivery.
Specifications
| Design |
| Intel® vPro™ Platform Eligibility |
Yes |
| Housing material |
Aluminium |
| Form factor |
Clamshell |
| Product colour |
Black |
| Product type |
Mobile workstation |
| Display |
| Contrast ratio (typical) |
1200:1 |
| Maximum refresh rate |
60 Hz |
| Colour gamut |
45% |
| RGB colour space |
NTSC |
| Display brightness |
400 cd/m² |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:10 |
| Panel type |
IPS |
| HD type |
WUXGA |
| Touchscreen |
No |
| Display resolution |
1920 x 1200 pixels |
| Display diagonal |
40.6 cm (16") |
| Processor |
| Maximum turbo power |
115 W |
| Processor base power |
45 W |
| Processor cache |
24 MB |
| Low Power Efficient-core Base Frequency |
1000 MHz |
| Efficient-core base frequency |
2.7 GHz |
| Performance-core base frequency |
2.9 GHz |
| Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
| Efficient-core Max Turbo Frequency |
4.5 GHz |
| Performance-core Max Turbo Frequency |
5.4 GHz |
| Low Power Efficient-cores |
2 |
| Efficient cores |
8 |
| Performance cores |
6 |
| Processor boost frequency |
5.4 GHz |
| Processor threads |
16 |
| Processor cores |
16 |
| Processor model |
285H |
| Processor generation |
Intel Core Ultra (Series 2) |
| Processor family |
Intel Core Ultra 9 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
| GPU performance up to |
77 TOPs |
| NPU performance up to |
13 TOPs |
| Total processor performance up to |
99 TOPs |
| AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Windows Studio effects support |
Yes |
| Sparsity support |
Yes |
| Neural processor unit (NPU) |
Intel AI Boost |
| Memory |
| Non-ECC |
Yes |
| Memory channels |
Dual-channel |
| Maximum internal memory |
96 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 16 GB |
| Memory clock speed |
5600 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
32 GB |
| Storage |
| Card reader integrated |
No |
| Optical drive type |
No |
| M.2 SSD size |
2280 (22 x 80 mm) |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| SSD interface |
PCI Express 5.0 |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Total storage capacity |
1 TB |
| Graphics |
| On-board graphics card model |
Intel Arc 140T |
| On-board graphics card family |
Intel Arc Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Speaker power |
2 W |
| Number of built-in speakers |
2 |
| Audio system |
Dolby Audio |
| Audio chip |
Realtek ALC3287 |
| Camera |
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Infrared (IR) camera |
Yes |
| Front camera resolution (numeric) |
5 MP |
| Front camera |
Yes |
| Network |
| WWAN |
Not installed |
| Near Field Communication (NFC) |
No |
| Bluetooth version |
5.4 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| WLAN controller manufacturer |
Intel |
| WLAN controller model |
Intel Wi-Fi 7 BE201 |
| Antenna type |
2x2 |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Sleep-and-Charge ports |
1 |
| USB Sleep-and-Charge |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
0 |
| Performance |
| Motherboard chipset |
Intel SoC |
| Keyboard |
| Copilot key |
Yes |
| Keyboard language |
UK English |
| Spill-resistant keyboard |
Yes |
| Keyboard backlit |
Yes |
| Numeric keypad |
Yes |
| Pointing device |
ThinkPad UltraNav |
| Software |
| Bundled software |
Intel Connectivity Performance Suite + Lenovo AI Now |
| Operating system language |
German, Dutch, English, French, Italian |
| Operating system installed |
Windows 11 Pro |
| Battery |
| Fast charging |
Yes |
| Battery capacity |
75 Wh |
| Battery capacity |
75 Wh |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| AC adapter input voltage |
100 - 240 V |
| AC adapter frequency |
50/60 Hz |
| AC adapter power |
100 W |
| Security |
| Password protection type |
BIOS, Power on, Supervisor |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Windows Hello |
Yes |
| Fingerprint reader |
Yes |
| Smart card reader |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Operational conditions |
| Maximum shipping altitude |
3048 m |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
8 - 95% |
| Storage temperature (T-T) |
5 - 43 °C |
| Operating temperature (T-T) |
5 - 35 °C |
| Certificates |
| Certification |
TCO Certified, generation 10 MIL-STD-810H Eyesafe Certified 2.0 TÜV Rheinland Low Blue Light |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
ENERGY STAR, EPEAT Gold |
| Weight & dimensions |
| Height (rear) |
1.82 cm |
| Height (front) |
1.26 cm |
| Depth |
248.6 mm |
| Width |
361.5 mm |
| Weight |
1.82 kg |
| Packaging content |
| AC adapter included |
Yes |
| Other features |
| Internal memory |
32 GB |
| Manufacturer |
Lenovo |
| Maximum internal memory |
96 GB |
| Operating temperature (T-T) |
5 - 35 °C |
