| Design |
| Intel® vPro™ Platform Eligibility |
Yes |
| Form factor |
Clamshell |
| Product colour |
Black |
| Product type |
Mobile workstation |
| Display |
| Contrast ratio (typical) |
700:1 |
| Dual-screen |
No |
| Display brightness |
250 cd/m² |
| LED backlight |
Yes |
| Native aspect ratio |
16:9 |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
No |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
39.6 cm (15.6") |
| Processor |
| Maximum number of PCI Express lanes |
16 |
| PCI Express configurations |
1x4, 2x2, 1x2+2x1, 4x1 |
| PCI Express slots version |
3.0 |
| Tjunction |
100 °C |
| Configurable TDP-down |
10 W |
| Configurable TDP-down frequency |
0.8 GHz |
| Configurable TDP-up |
25 W |
| Configurable TDP-up frequency |
2.1 GHz |
| Thermal Design Power (TDP) |
15 W |
| Processor codename |
Whiskey Lake |
| Processor operating modes |
64-bit |
| Processor lithography |
14 nm |
| Processor socket |
BGA 1528 |
| Processor cache type |
Smart Cache |
| Processor cache |
8 MB |
| System bus rate |
4 GT/s |
| Processor frequency |
1.9 GHz |
| Processor boost frequency |
4.8 GHz |
| Processor threads |
8 |
| Processor cores |
4 |
| Processor model |
i7-8665U |
| Processor generation |
8th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| Maximum internal memory |
48 GB |
| Memory slots |
1x SO-DIMM |
| Memory clock speed |
2400 MHz |
| Memory form factor |
On-board + SO-DIMM |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
16 GB |
| Storage |
| Compatible memory cards |
MicroSD (TransFlash) |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| SSD interface |
NVMe, PCI Express |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card ID |
0x3EA0 |
| On-board graphics card OpenGL version |
4.5 |
| On-board graphics card DirectX version |
12.0 |
| Maximum on-board graphics card memory |
32 GB |
| On-board graphics card base frequency |
300 MHz |
| On-board graphics card dynamic frequency (max) |
1150 MHz |
| On-board graphics card model |
Intel® UHD Graphics 620 |
| On-board graphics card family |
Intel® UHD Graphics |
| Discrete graphics memory type |
GDDR5 |
| Discrete graphics card memory |
2 GB |
| Discrete graphics card model |
NVIDIA Quadro P520 |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Built-in subwoofer |
No |
| Speaker power |
2 W |
| Number of built-in speakers |
2 |
| Audio system |
Dolby Audio Premium |
| Audio chip |
Realtek ALC3287 |
| Camera |
| Auto focus |
No |
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Infrared (IR) camera |
Yes |
| Front camera HD type |
HD |
| Front camera resolution |
1280 x 720 pixels |
| Front camera signal format |
720p |
| Front camera |
Yes |
| Network |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| WLAN controller model |
Intel Dual Band Wireless-AC 9560 |
| Antenna type |
2x2 |
| Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |

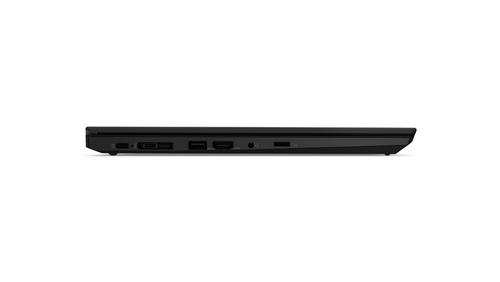

| Ports & interfaces |
| USB Sleep-and-Charge ports |
1 |
| USB Sleep-and-Charge |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| SmartCard slot |
Yes |
| Docking connector |
Yes |
| Combo headphone/mic port |
Yes |
| Thunderbolt 3 ports quantity |
0 |
| DisplayPorts quantity |
0 |
| HDMI version |
1.4b |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
0 |
| Keyboard |
| Windows keys |
Yes |
| Spill-resistant keyboard |
Yes |
| Keyboard backlit |
Yes |
| Numeric keypad |
Yes |
| Pointing device |
ThinkPad UltraNav |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Pro |
| Processor special features |
| CPU configuration (max) |
1 |
| Embedded options available |
No |
| Enhanced Intel SpeedStep Technology |
Yes |
| Execute Disable Bit |
Yes |
| Idle States |
Yes |
| Intel 64 |
Yes |
| Intel Clear Video Technology |
Yes |
| Intel Flex Memory Access |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Intel TSX-NI |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Intel® My WiFi Technology (Intel® MWT) |
Yes |
| Intel® OS Guard |
Yes |
| Intel® Quick Sync Video Technology |
Yes |
| Intel® Secure Key |
Yes |
| Intel® Smart Response Technology |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Processor ARK ID |
193563 |
| Processor package size |
46x24 mm |
| Supported instruction sets |
SSE4.1, SSE4.2, AVX 2.0 |
| Thermal Monitoring Technologies |
Yes |
| Battery |
| Fast charging |
Yes |
| Battery life (max) |
15 h |
| Battery capacity |
57 Wh |
| Battery capacity |
57 Wh |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| AC adapter power |
65 W |
| Security |
| Password protection type |
HDD, Power on, Supervisor |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Fingerprint reader |
Yes |
| Cable lock slot |
Yes |
| Certificates |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
EPEAT Silver, ENERGY STAR |
| Weight & dimensions |
| Height |
19.1 mm |
| Depth |
248 mm |
| Width |
365.8 mm |
| Weight |
1.75 kg |
| Packaging content |
| Manual |
Yes |
| AC adapter included |
Yes |
| Other features |
| Internal memory |
16 GB |
| Manufacturer |
Lenovo |
| Maximum internal memory |
48 GB |
| Maximum internal memory (64-bit) |
48 GB |
| LightScribe |
No |
