Imagine a workstation that never slows you down, even when you run the toughest 3-D renders or AI models. The Lenovo ThinkStation P2 Tower Gen 2 Intel Core Ultra 7 32GB/1TB Workstation is built for creators, engineers, and data scientists who need raw power without compromise. If you have ever lost hours to lag or crashed files, this machine gives you the speed and reliability to finish projects on time.

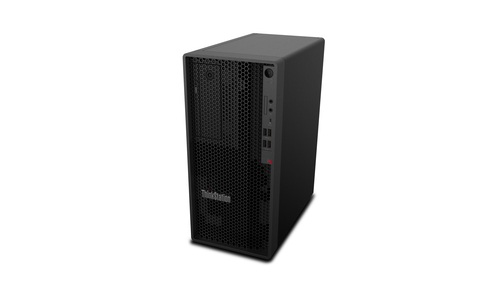

Lenovo ThinkStation P2 Tower Gen 2 Intel Core Ultra 7 32GB/1TB Workstation
Many professionals struggle with workstations that cannot handle AI-optimized workloads or certified ISV applications. When performance drops, you risk missed deadlines and lower quality output. This ThinkStation solves the problem by pairing a 20-core Intel Core Ultra 7 CPU with an NVIDIA RTX A400 GPU, delivering up to 33 TOPs of combined compute power. The result is smooth rendering, fast simulation, and stable operation for every demanding task.
Benefits
- Lightning-fast AI processing lets you train models in hours, not days.
- 32 GB DDR5 memory and 1 TB PCIe 4.0 SSD give instant file access and multitasking.
- Certified ISV support means your favorite CAD, DCC, and simulation software runs without glitches.
- 80 PLUS Platinum power supply keeps energy costs low while delivering stable power.
- Secure chassis with TPM and Kensington lock protects sensitive data in busy offices.
Usages
The ThinkStation excels in 3-D modeling, video editing, and visual effects where GPU acceleration is critical. It handles large engineering simulations, such as finite-element analysis, without slowing down. Data scientists can run TensorFlow or PyTorch workloads directly on the built-in NPU for faster inference. Architects and product designers benefit from smooth CAD performance and reliable rendering of complex assemblies.
Key Features
- Intel Core Ultra 7 265 processor - 20 cores, 5.3 GHz boost.
- NVIDIA RTX A400 graphics with 4 GB GDDR6 memory.
- 32 GB DDR5-5600 RAM, expandable to 128 GB.
- 1 TB PCIe 4.0 NVMe SSD for rapid storage.

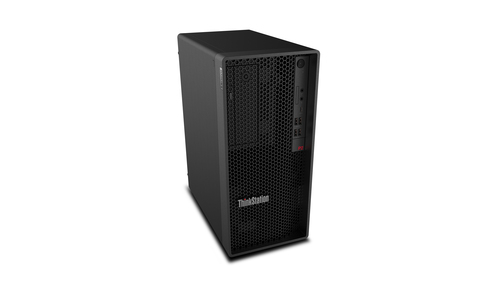

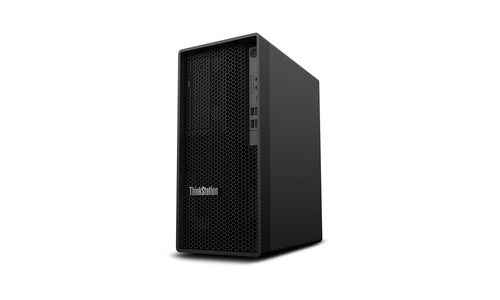

- Four Mini DisplayPort and one HDMI 2.1 for multiple high-resolution monitors.
- USB-C 3.2 Gen 2x2, two USB-A 3.2 Gen 2, four USB-A 3.2 Gen 1, and two USB-2.0 ports.
- Integrated Intel graphics for basic tasks and backup display.
- 500 W power supply with 80 PLUS Platinum efficiency.
- Kensington lock slot and TPM 2.0 for enterprise-grade security.
- Vertical placement option and compact 17 L tower design.
Specifications
| Processor |
| Maximum turbo power |
182 W |
| Processor base power |
65 W |
| Number of processors installed |
1 |
| Processor cache type |
Smart Cache |
| Processor cache |
30 MB |
| Efficient-core base frequency |
1.8 GHz |
| Performance-core base frequency |
2.4 GHz |
| Efficient-core Max Turbo Frequency |
4.6 GHz |
| Performance-core Max Turbo Frequency |
5.2 GHz |
| Efficient cores |
12 |
| Performance cores |
8 |
| Processor boost frequency |
5.3 GHz |
| Processor threads |
20 |
| Processor cores |
20 |
| Processor model |
265 |
| Processor generation |
Intel Core Ultra (Series 2) |
| Processor family |
Intel Core Ultra 7 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
| GPU performance up to |
8 TOPs |
| NPU performance up to |
13 TOPs |
| Total processor performance up to |
33 TOPs |
| AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Windows Studio effects support |
Yes |
| Sparsity support |
Yes |
| Neural processor unit (NPU) |
Intel AI Boost |
| Memory |
| Memory channels |
Dual-channel |
| Non-ECC |
Yes |
| Memory clock speed |
5600 MHz |
| Memory slots |
4x DIMM |
| Memory layout (slots x size) |
1 x 32 GB |
| Internal memory type |
DDR5-SDRAM |
| Maximum internal memory |
128 GB |
| Internal memory |
32 GB |
| Storage |
| Compatible memory cards |
SD |
| Card reader integrated |
Yes |
| M.2 SSD size |
2280 (22 x 80 mm) |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| SSD interface |
PCI Express 4.0 |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
1 TB |
| Graphics |
| Graphics card Mini DisplayPort ports quantity |
4 |
| On-board graphics card model |
Intel Graphics |
| On-board graphics card family |
Intel Graphics |
| On-board GPU manufacturer |
Intel |
| Number of discrete graphics cards |
1 |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
4 GB |
| Discrete graphics card model |
NVIDIA RTX A400 |
| Discrete GPU manufacturer |
NVIDIA |
| On-board graphics card |
Yes |
| Discrete graphics card |
Yes |
| Network |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| Line-out |
Yes |
| Microphone in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
2 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Thunderbolt 3 ports quantity |
0 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
2 |
| Design |
| Product colour |
Black |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Placement supported |
Vertical |
| Volume |
17 L |
| Chassis type |
Tower |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Password protection type |
BIOS, Power on |
| Password protection |
Yes |
| Number of speakers |
1 |
| Built-in speaker(s) |
Yes |
| Audio system |
High Definition Audio |
| Audio chip |
Realtek ALC623-CG |
| Motherboard chipset |
Intel W880 |
| Product type |
Workstation |
| Software |
| Operating system language |
English, US English |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Power |
| 80 PLUS certification |
80 PLUS Platinum |
| Power supply input frequency |
50/60 Hz |
| Power supply input voltage |
100 - 240 V |
| Power supply |
500 W |
| Operational conditions |
| Non-operating altitude |
0 - 12192 m |
| Operating altitude |
0 - 3048 m |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating temperature (T-T) |
10 - 35 °C |
| Certificates |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
TCO |
| Weight & dimensions |
| Weight |
9.67 kg |
| Height |
376 mm |
| Depth |
315.4 mm |
| Width |
170 mm |
| Packaging content |
| Keyboard connectivity |
Wired |
| Keyboard included |
Yes |
| Mouse connectivity |
Wired |
| Mouse included |
Yes |
| Display |
| Display included |
No |
| Other features |
| Maximum internal memory |
128 GB |
| Operating temperature (T-T) |
10 - 35 °C |
