Are you tired of using slow and outdated servers that are holding you back from achieving your goals? Look no further than the Lenovo ThinkSystem SR680a V4, 2 x Intel Xeon 6 processors, 8U Rack-mount Server. This powerful server is designed to help you tackle even the toughest tasks with ease, and its advanced features make it the perfect solution for businesses and individuals who need a reliable and efficient server. With the Lenovo ThinkSystem SR680a V4, you can say goodbye to slow loading times and hello to fast and efficient performance. Whether you're running a small business or a large enterprise, this server has the power and flexibility to meet your needs.

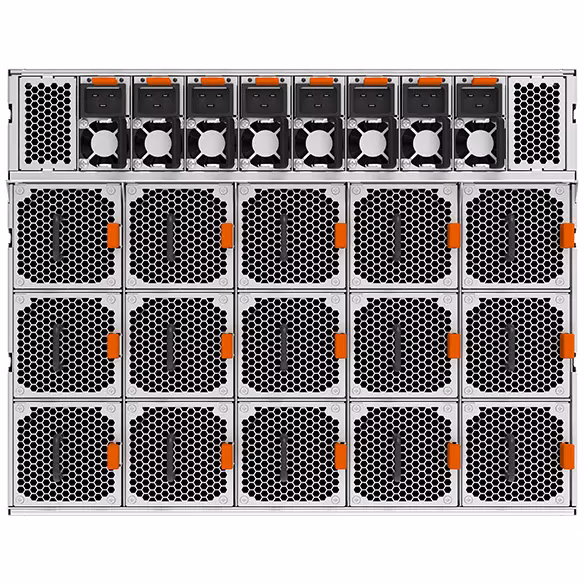

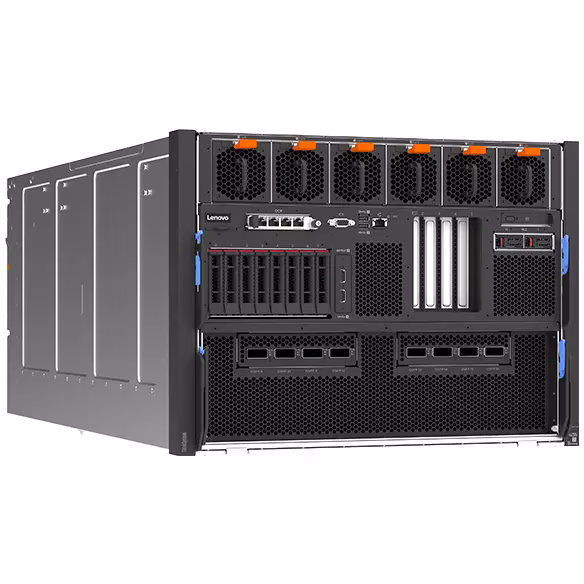

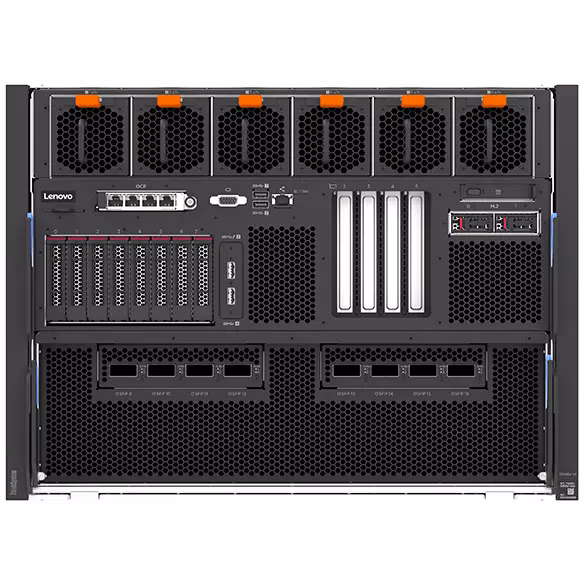

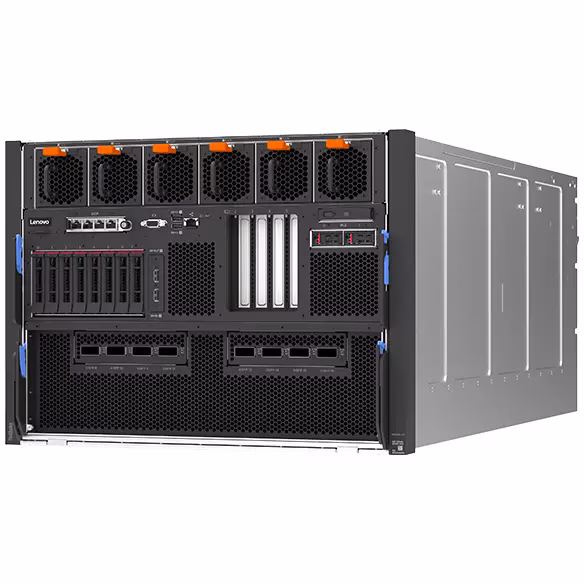

Lenovo ThinkSystem SR680a V4, 2 x Intel Xeon 6 processors, 8U Rack-mount Server
The Lenovo ThinkSystem SR680a V4, 2 x Intel Xeon 6 processors, 8U Rack-mount Server solves the problem of slow and inefficient servers by providing a powerful and reliable solution. This problem matters to users because it can hold them back from achieving their goals and can lead to frustration and lost productivity. The Lenovo ThinkSystem SR680a V4 gives a clear solution by providing advanced features such as fast processors, ample storage, and high-performance GPUs. With this server, users can tackle even the toughest tasks with ease and can rely on its performance and efficiency.
Key Features
- 2 x Intel Xeon 6 processors, up to 350W
- 32 x DDR5 DIMM slots, 6400MHz
- 8 x 2.5" hot-swap NVMe SSDs, 2 x M.2 NVMe for boot (RAID via VROC)
- Supports 8x high-performance GPUs, 8 x NVIDIA HGX B300 NVL8 GPUs
- 8 x 3200W @12V Titanium PSUs (Full N+N redundancy)
- ThinkSystem XClarity Controller 3 (XCC3) with Platform Firmware Resiliency (HW Root of Trust)
- Air-cooled with N+1 hot-swap fan solution
- Supports RHEL and Ubuntu operating systems
- 4 x PCIe Gen5 x16 FHHL (connected to CPU), OCP slot, 8 x OSFP connectors connected to CX8 switches (1 per SXM module)
Specifications
| Form Factor |
|
| Form Factor |
8U rack |
| Processor |
|
| Processor |
2 x Intel® Xeon® 6 processors, up to 350W |
| Memory |
|
| Memory |
32 x DDR5 DIMM slots, 6400MHz |
| Memory Support |
Supports 16 or 32 DIMMs (64GB/96GB/128GB) |
| GPU |
|
| GPU |
Supports 8x high-performance GPUs |
| GPU Configuration |
8 x NVIDIA HGX B300 NVL8 GPUs |
| I/O Expansion |
|
| I/O Expansion |
4 x PCIe Gen5 x16 FHHL (connected to CPU), OCP slot, 8 x OSFP connectors connected
to CX8 switches (1 per SXM module)
|
| Storage |
|
| Storage |
8 x 2.5″ hot-swap NVMe SSDs, 2 x M.2 NVMe for boot (RAID via VROC) |
| Power |
|
| Power Supply |
8 x 3200W @12V Titanium PSUs (Full N+N redundancy) |
| Planned Power Supply |
8 x 3800W @54V planned for Wave 2, CFFv5 – Supports multiple input power ranges:
200–220V AC (2900W), 221–249V AC (3200W), 250–277V AC (3800W)
|
| Cooling |
|
| Cooling |
Air-cooled with N+1 hot-swap fan solution |
| Management |
|
| Management |
ThinkSystem XClarity Controller 3 (XCC3) with Platform Firmware Resiliency (HW Root of Trust) |
| OS Support |
|
| OS Support |
RHEL, Ubuntu |
