| Display |
| Screen shape |
Flat |
| Display brightness |
250 cd/m² |
| Native aspect ratio |
16:9 |
| LED backlight |
Yes |
| HD type |
HD+ |
| Touchscreen |
No |
| Display resolution |
1600 x 900 pixels |
| Display diagonal |
49.5 cm (19.5") |
| Processor |
| ECC supported by processor |
No |
| Memory channels supported by processor |
Dual |
| Memory bandwidth supported by processor (max) |
37.5 GB/s |
| Memory clock speeds supported by processor |
2400 MHz |
| Memory types supported by processor |
DDR4-SDRAM |
| Conflict-Free processor |
Yes |
| Maximum internal memory supported by processor |
64 GB |
| Bus type |
DMI3 |
| Maximum number of PCI Express lanes |
16 |
| PCI Express configurations |
1x16, 1x8+2x4, 2x8 |
| PCI Express slots version |
3.0 |
| Processor codename |
Coffee Lake |
| Processor lithography |
14 nm |
| Processor operating modes |
64-bit |
| Processor socket |
LGA 1151 (Socket H4) |
| Tjunction |
100 °C |
| Thermal Design Power (TDP) |
65 W |
| System bus rate |
8 GT/s |
| Processor cache type |
Smart Cache |
| Processor cache |
6 MB |
| Processor frequency |
3.6 GHz |
| Processor threads |
4 |
| Processor cores |
4 |
| Processor model |
i3-8100 |
| Processor generation |
8th gen Intel® Core™ i3 |
| Processor family |
Intel® Core™ i3 |
| Processor manufacturer |
Intel |
| Memory |
| Memory form factor |
DIMM/SO-DIMM |
| Memory slots type |
SO-DIMM |
| Memory slots |
2 |
| Maximum internal memory |
32 GB |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
4 GB |
| Storage |
| Compatible memory cards |
MMC, MS PRO, Memory Stick (MS), SD, SDHC, SDXC |
| Card reader integrated |
Yes |
| Optical drive type |
DVD±RW |
| HDD interface |
SATA III |
| HDD speed |
7200 RPM |
| HDD capacity |
1 TB |
| Number of HDDs installed |
1 |
| Number of storage drives installed |
1 |
| Storage media |
HDD |
| Total storage capacity |
1 TB |
| Graphics |
| Number of execution units |
23 |
| On-board graphics card DirectX version |
12.0 |
| On-board graphics card ID |
0x3E91 |
| On-board graphics card OpenGL version |
4.5 |
| Maximum on-board graphics card memory |
64 GB |
| Number of displays supported (on-board graphics) |
3 |
| On-board graphics card base frequency |
350 MHz |
| On-board graphics card dynamic frequency (max) |
1100 MHz |
| On-board graphics card model |
Intel® UHD Graphics 630 |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board graphics card |
Yes |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| Audio |
| Audio chip |
Realtek ALC233 |
| Built-in microphone |
Yes |
| RMS rated power |
4 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Camera |
| Camera HD type |
HD |
| Camera resolution |
1280 x 720 pixels |
| Camera signal format |
720p |
| Total megapixels |
1 MP |
| Built-in camera |
Yes |
| Network |
| Bluetooth version |
4.0 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |

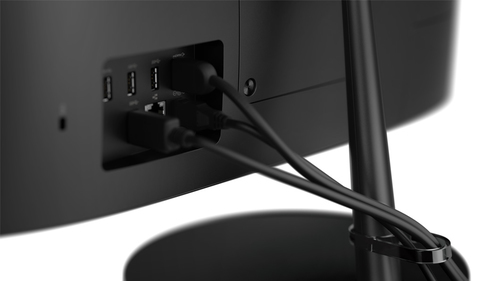

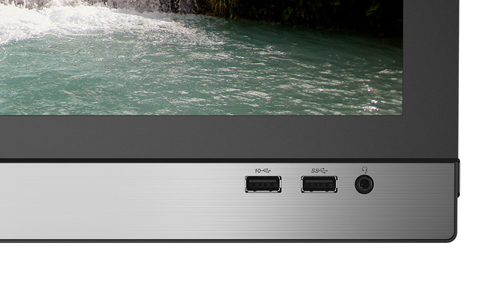

| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| HDMI ports quantity |
1 |
| Thunderbolt 3 ports quantity |
0 |
| Thunderbolt ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| Design |
| Product colour |
Black |
| Performance |
| HDD user password |
Yes |
| Placement supported |
Vertical |
| Trusted Platform Module (TPM) |
Yes |
| Motherboard chipset |
Intel® B360 |
| Product type |
All-in-One PC |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Pro |
| Processor special features |
| CPU configuration (max) |
1 |
| Embedded options available |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Execute Disable Bit |
Yes |
| Idle States |
Yes |
| Intel 64 |
Yes |
| Intel Clear Video Technology |
Yes |
| Intel Enhanced Halt State |
Yes |
| Intel Identity Protection Technology version |
1.00 |
| Intel Secure Key Technology version |
1.00 |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Intel Stable Image Platform Program (SIPP) |
No |
| Intel Stable Image Platform Program (SIPP) version |
0.00 |
| Intel TSX-NI |
No |
| Intel TSX-NI version |
0.00 |
| Intel Trusted Execution Technology |
No |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
No |
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Intel® InTru™ 3D Technology |
Yes |
| Intel® OS Guard |
Yes |
| Intel® Quick Sync Video Technology |
Yes |
| Intel® Secure Key |
Yes |
| Intel® Turbo Boost Technology |
No |
| Processor ARK ID |
126688 |
| Processor package size |
37.5 x 37.5 mm |
| Scalability |
1S |
| Supported instruction sets |
AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies |
Yes |
| Thermal solution specification |
PCG 2015C |
| Power |
| AC adapter power |
120 W |
| Pen |
| Pen included |
No |
| Weight & dimensions |
| Weight (without stand) |
5.02 kg |
| Height (without stand) |
380 mm |
| Depth (without stand) |
59.5 mm |
| Width (without stand) |
477 mm |
| Weight (with stand) |
6.36 kg |
| Height (with stand) |
398 mm |
| Depth (with stand) |
86.6 mm |
| Width (with stand) |
477 mm |
| Certificates |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
EPEAT Silver, ENERGY STAR |
| Packaging content |
| Manual |
Yes |
| Power cord included |
Yes |
| Quick start guide |
Yes |
| Warranty card |
Yes |
| Keyboard included |
Yes |
| Mouse included |
Yes |
| Other features |
| Detachable display |
No |
| 3D |
No |
