Looking for a camera that can see every detail on the road, even in rain or night? The Leopard Imaging LI-IMX728-9295-120H, GMSL2 Automotive Camera Module is built for that job. It captures high-resolution images for driver assistance, ADAS, and autonomous systems. If blurry or low-light footage is slowing your development, this module gives you the clarity and speed you need.

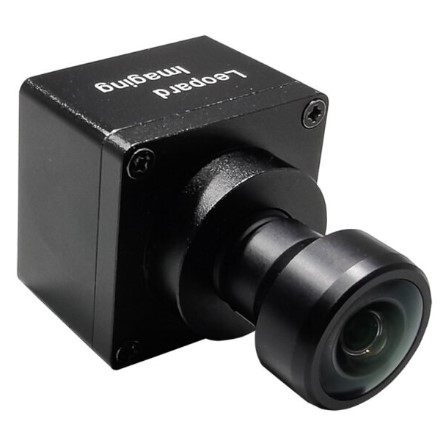

Leopard Imaging LI-IMX728-9295-120H, GMSL2 Automotive Camera Module
Many car cameras struggle with fast motion and changing light. That problem can cause missed objects and unsafe decisions. The Leopard module solves it with a 9.30 mm 8.39 MP sensor that delivers 45 fps at full resolution. It also supports HDR and LED flicker mitigation, so you get clear images in bright sun or under street lights. The GMSL2 link lets you send data over long cables without loss, keeping your system reliable.
Key Features
- 9.30 mm 8.39 MP IMX728 RGB sensor.
- Resolution 3857 x 2177 active pixels.
- 2.1 m pixel size for low-light performance.
- 20-bit to 10-bit RAW output options.
- 45 fps at full resolution.
- HDR and LED flicker mitigation supported.
- Lens options: 30, 70, 120 field of view.
- Maxim MAX9295A/B serializer for GMSL2 transmission.
- Power range 9 ~ 19 VDC, ~129 mA at 12 V.
- IP69K rating for water and dust resistance.
- M12 mount with 3.9 mm focal length, f/1.6 aperture.
Specifications
| Sensor Diagonal |
9.30 mm 8.39MP CMOS |
| Sensor |
RGGB Sensor IMX728 |
| Optical Format |
1/1.72" |
| Resolution |
3857 (H) x 2177 (V) (active pixels) |
| Pixel Size |
2.1 x 2.1 μm |
| Color / Mono |
Color sensor |
| Output Format |
20-bit / 16-bit / 12-bit / 10-bit RAW data |
| Maximum Frame Rate |
45 fps @ 3857 x 2177 |
| HDR (High Dynamic Range) |
Supported |
| LFM (LED Flicker Mitigation) |
Supported |
| Lens FOV |
H 30˚ / 70˚ / 120˚ |
| Serializer |
Maxim MAX9295A/B |
| Power Supply Range |
9 ~ 19 VDC |
| Connector |
FAKRA Z TYPE |
| IP Rating |
030H: TBD070H: IP67120H: IP69K |
| Power Consumption |
Approx. 129 mA @ 12 VDC(3840 x 2160 @ 19 fps) |
| Operating Temp |
-40℃ ~ +85℃ |
| Storage Temp |
-40℃ ~ +85℃ |
| Weight |
~ 50 g |
| Lens EFL |
3.9 mm ± 2% |
| Aperture, F/# |
1.6 ± 5% |
| Field of View (FOV) |
121.2˚ horizontal |
| IR Filter |
650 nm IR cut filter |
| Mount |
M12 |
