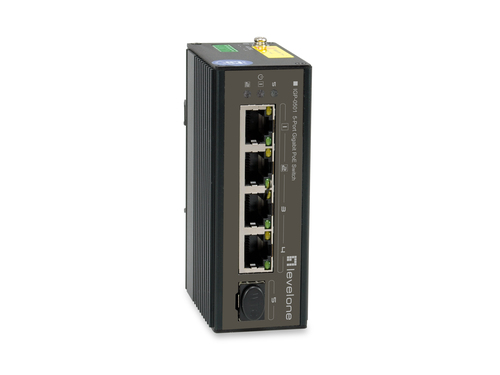

LevelOne IGP-0501 Industry Ethernet Switch provides 4 PoE ports 10/100/1000Base plus 1 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rain mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE 802.3at PoE standard at maximum 30W power budget per port. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3af standard PD devices.
Specifications
| Ports & interfaces |
| SFP module slots quantity |
1 |
| Installed SFP+ modules quantity |
0 |
| Installed SFP modules quantity |
0 |
| Gigabit Ethernet (copper) ports quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
4 |
| Network |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Flow control support |
Yes |
| Full duplex |
Yes |
| Half duplex |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Design |

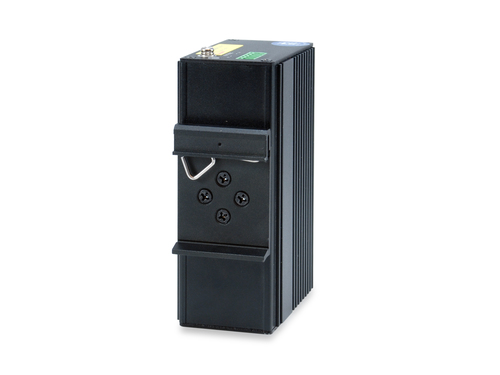

| DIN rail mounting |
Yes |
| International Protection (IP) code |
IP30 |
| Wall mountable |
Yes |
| LED indicators |
Activity, Power |
| Housing material |
Metal |
| Product colour |
Black |
| Rack mounting |
No |
| Power |
| Surge protection voltage |
6 kV |
| Surge protection |
Yes |

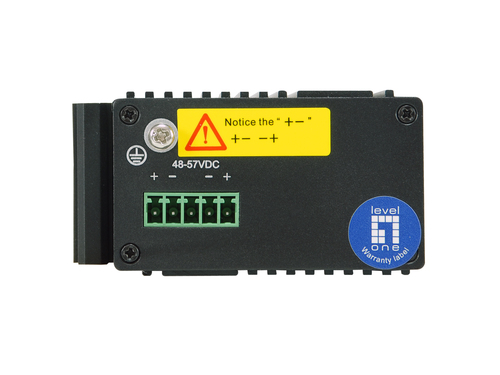

| DC input voltage |
48 - 57 V |
| Power supply included |
No |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet (PoE) ports quantity |
4 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
-30 - 65 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
-30 - 65 °C |
| Weight & dimensions |
| Weight |
350 g |
| Height |
101 mm |
| Depth |
36 mm |
| Width |
65 mm |
| Packaging content |
| Quick start guide |
Yes |
| Packaging data |
| Package weight |
400 g |
| Package height |
110 mm |
| Package depth |
60 mm |
| Package width |
70 mm |
| Package type |
Box |
| Terminal block included |
Yes |
| Technical details |
| Pallet gross length |
80 cm |
| Pallet gross width |
120 cm |
| Pallet height (air) |
159 cm |
