Gigabit Speeds: Take Your Data to the Next Level

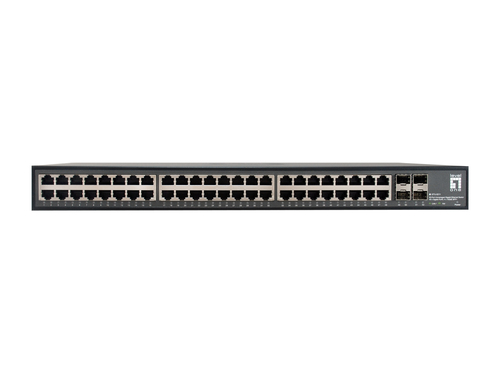

The GTU-5211 is a 52-port Gigabit Ethernet Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 176Gbps and bring Gigabit speeds all the way to your computers.
Bandwidth hungry? Not a problem.
What happens when you have several users accessing multimedia applications all at the same time? No need to worry as GTU-5211 allows you to move large files faster and easier. Transfer your CGI, CAD, video, or other large multimedia files over the network instantly and without lag.
Plug and Play, Flexible and Easy
The GTU-5211 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or Uplink ports. Each port can be used as general ports or Uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight cable or crossover cable. Diagnostic LEDs which display link status and activity, allowing you to quickly detect and correct problems on the network.
Specifications
| Management features |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Power connector |
AC-in jack |
| Installed SFP+ modules quantity |
4 |
| Installed SFP modules quantity |
0 |
| Gigabit Ethernet (copper) ports quantity |
48 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Network |
| Auto MDI/MDI-X |
Yes |
| Flow control support |
Yes |
| MAC address auto-aging supported |
Yes |
| MAC address auto-learning supported |
Yes |
| Full duplex |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission |
| Packet buffer memory |
16 MB |
| Jumbo frames |
10000 |
| Jumbo frames support |
Yes |
| Switching capacity |
176 Gbit/s |
| MAC address table |
32000 entries |
| Design |
| LED indicators |
Activity, Link, Power |
| Product colour |
Black |
| Stackable |
No |
| Rack mounting |
Yes |
| Performance |
| Fanless |
No |
| Noise level |
30 dB |
| Flash memory |
16 MB |
| Internal memory |
256 MB |
| Power |
| Power consumption (typical) |
48 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Heat dissipation |
163.8 BTU/h |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
| Weight |
3.39 kg |
| Height |
44.5 mm |
| Depth |
290 mm |
| Width |
440 mm |
| Packaging content |
| Rack mount kit |
Yes |
| Quick start guide |
Yes |
| Cables included |
AC |
| Packaging data |
| Package weight |
4 kg |
| Package height |
93 mm |
| Package depth |
380 mm |
| Package width |
515 mm |
| Package type |
Box |
| Certificates |
| Certification |
CE, UKCA, FCC Part 15, Subpart B Class B, RoHS |
