Tired of slow, unreliable connections that hold back your office or small data center? The LevelOne Hilbert, 16 x Gigabit RJ45 (10/100/1000), L2, Managed Switch gives you fast, stable Ethernet for up to sixteen devices. It fits a 10-inch rack and lets you control traffic without a complex setup. If you have been losing time to network bottlenecks, this switch is the tool you need to keep work flowing.

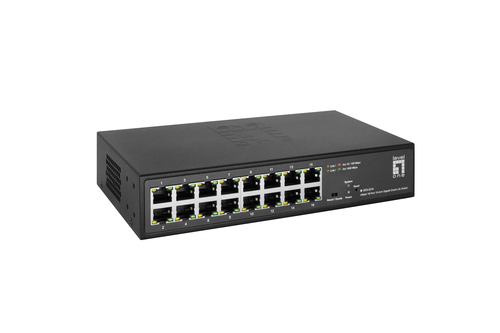

LevelOne Hilbert, 16 x Gigabit RJ45 (10/100/1000), L2, Managed Switch
Many small networks struggle with limited ports, unmanaged traffic, and security gaps. Without a managed switch, you cannot separate traffic, prioritize important data, or stop a single fault from crashing the whole network. This matters because downtime costs money and frustrates users. The LevelOne Hilbert switch solves these issues with Layer-2 management, VLAN support, QoS, and storm control, all in a compact, fanless design that is easy to install and run.
Usages of LevelOne
Use it in a small office to connect computers, printers, and Wi-Fi access points on a single, secure network. Deploy it in a classroom or lab where you need to separate student traffic from admin traffic. Install it in a boutique retail store to link point-of-sale terminals, security cameras, and inventory servers. It also fits in a compact server rack for a micro-data center that requires reliable gigabit links.
Benefits
- Fast gigabit ports keep file transfers and video streams smooth.
- VLANs let you isolate sensitive data from guest traffic.
- QoS prioritizes voice and video so calls never drop.
- Storm control protects the network from broadcast overloads.
- Web-based interface makes configuration simple for any skill level.
Key Features
- 16 RJ45 ports supporting 10/100/1000 Mbps.
- Layer-2 managed switch with web GUI.
- 32 VLAN IDs for network segmentation.
- Port-based, 802.1p and DSCP QoS.
- Port mirroring for real-time traffic monitoring.
- Broadcast storm control to prevent network floods.
- Link aggregation for higher bandwidth paths.
- Auto MDI/MDI-X and auto-negotiation on all ports.
- Fanless design with 0 dB noise level.
- Included rack-mount kit and power adapter.
Specifications
| Management features |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
| Power connector |
AC-in jack |
| Installed SFP+ modules quantity |
0 |
| Installed SFP modules quantity |
0 |
| Gigabit Ethernet (copper) ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Network |
| Number of VLANs |
32 |
| VLAN support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Broadcast storm control |
Yes |
| Link aggregation |
Yes |
| MAC address auto-aging supported |
Yes |
| MAC address auto-learning supported |
Yes |
| Rate limiting |
Yes |
| Full duplex |
Yes |
| Half duplex |
Yes |
| Port mirroring |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission |
| Packet buffer memory |
4.1 MB |
| Jumbo frames |
10000 |
| Jumbo frames support |
Yes |
| Forwarding rate |
23808 Mpps |
| Switching capacity |
32 Gbit/s |
| MAC address table |
8000 entries |
| Security |
| IGMP snooping |
Yes |
| Design |
| LED indicators |
Activity, Link, Power |
| Product colour |
Black |
| Stackable |
No |
| Rack mounting |
Yes |
| Performance |
| Mean time between failures (MTBF) |
43800 h |
| Fanless |
Yes |
| Noise level |
0 dB |
| Flash memory |
2 MB |
| Power |
| Power consumption (typical) |
6 W |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Heat dissipation |
35.8 BTU/h |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
| Weight |
838 g |
| Height |
44.5 mm |
| Depth |
150 mm |
| Width |
215 mm |
| Packaging content |
| Rack mount kit |
Yes |
| Quick start guide |
Yes |
| Cables included |
AC |
| Packaging data |
| Package weight |
1.27 kg |
| Package height |
62 mm |
| Package depth |
257 mm |
| Package width |
285 mm |
| Package type |
Box |
| Certificates |
| Certification |
CE, UKCA, FCC Part 15, Subpart B Class B, RoHS |
