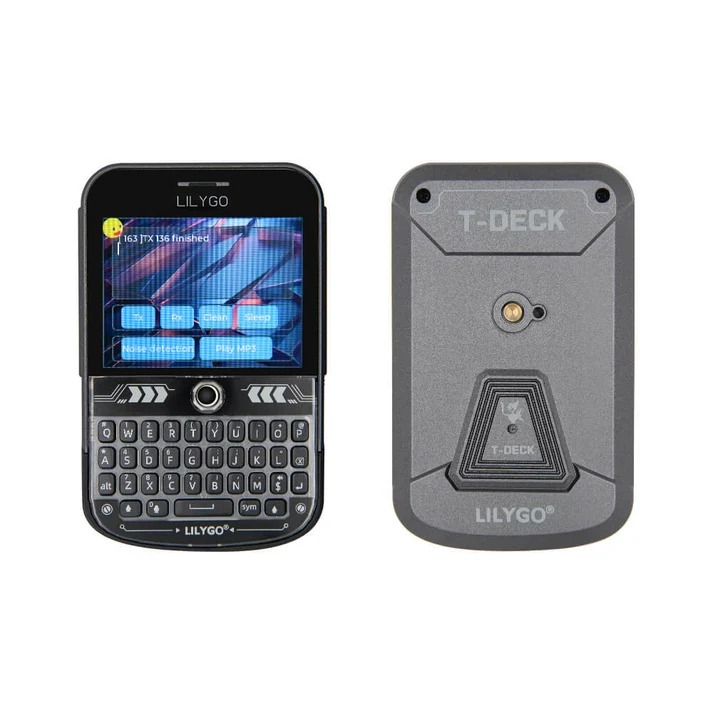

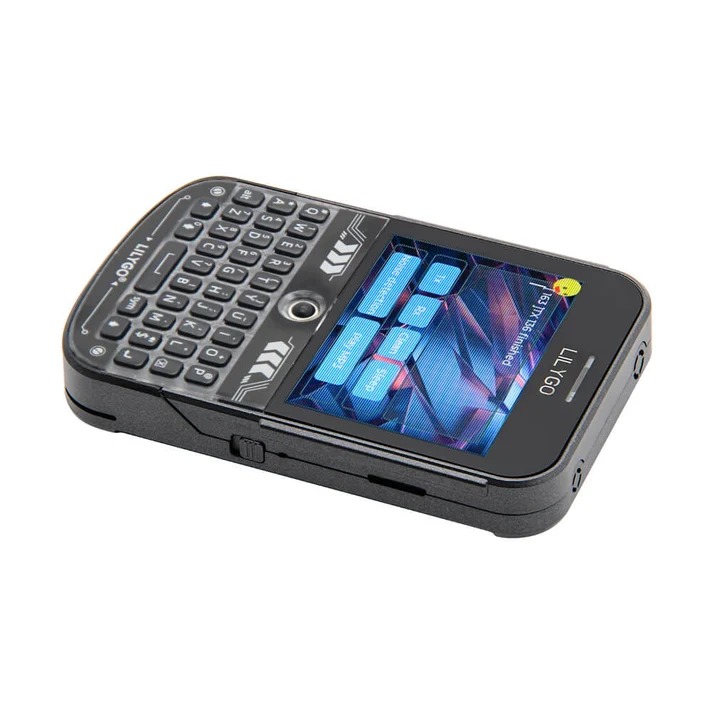

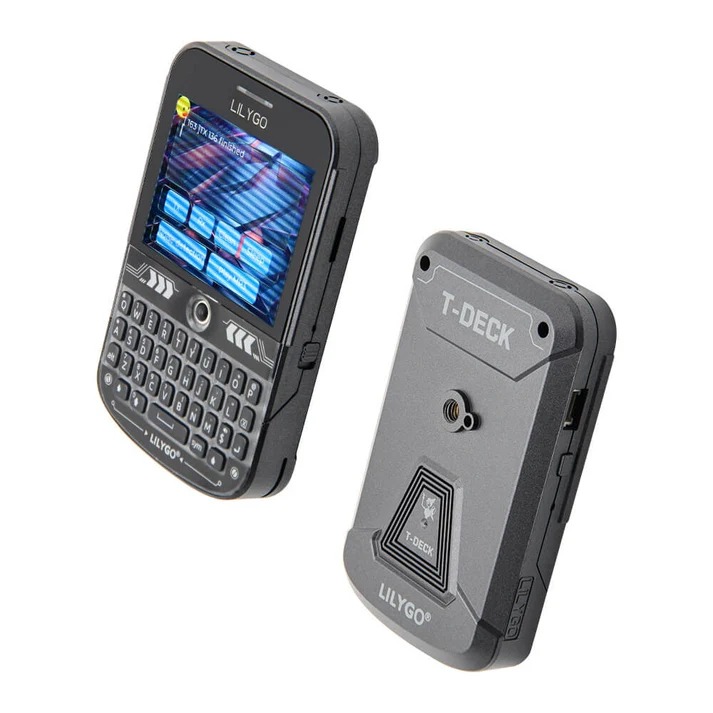

LILYGO T-Deck Plus ESP32-S3 LoRa Development Board

LILYGO T-Deck Plus ESP32-S3 LoRa Development Board

LILYGO T-Deck Plus is a highly integrated multi-functional embedded development platform based on the ESP32-S3 chip. It integrates a 2.8-inch ST7789 LCD (320 × 240) with GT911 capacitive touch, trackball navigation module, physical keyboard (I²C), TF card, LoRa SX1262 wireless module, and ES7210 microphone array. Compared to the standard T-Deck, T-Deck Plus adds a GPS module (MIA-M10Q) with the Grove interface pins repurposed for GPS — the Grove interface is not available as a general-purpose connector on T-Deck Plus.

Key Features

• ESP32-S3FN16R8 dual-core LX7 @ 240 MHz, Wi-Fi + Bluetooth 5.0 LE
• SX1262 LoRa (433–915 MHz, optional)
• MIA-M10Q GNSS module (GPS, added vs. standard T-Deck)
• 2.8-inch ST7789 LCD (320 × 240), GT911 capacitive touch, trackball navigation
• Physical keyboard (I²C)
• ES7210 audio codec + MSM381A3729H9CP microphone array
• 2000 mAh lithium polymer battery
• 16 MB Flash + 8 MB PSRAM + TF card slot

Note:

Specifications
