Ever tried to join a video call and the picture looks grainy, the sound echoes, and you keep adjusting the camera? Logitechs all-in-one conference solution was built for that exact frustration. The Rally Bar Mini captures crystal-clear 4K video at 30 fps and uses six microphones with echo cancellation so you hear and are heard without the hassle.

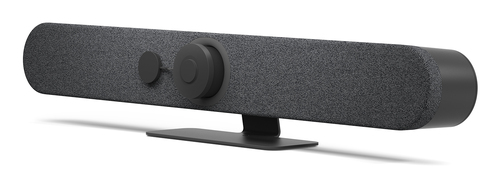

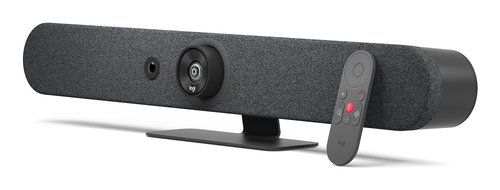

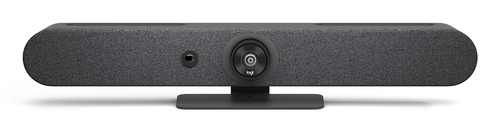

Logitech Rally Bar Mini, 4K Ultra HD, 30 fps, 4x All in One Conference Webcam
This compact 4K webcam is aimed at small meeting rooms, huddle spaces, and home offices. It combines video, audio, and connectivity in a single bar, so you can plug it in and start conferencing without extra gear. Designed to work with Logitech software platforms, it fits seamlessly into existing setups.
Benefits
- Clear video eliminates the need to repeat yourself.
- Automatic echo cancellation makes every voice sound natural.
- Wide 120 view captures the whole room without extra cameras.
- PTZ control lets you focus on any speaker with a click.
- Six-mic array picks up voices up to 4.5 m away.
- Simple plug-and-play setup saves you installation time.
Features
- 4K Ultra HD video up to 2160p
- 30 fps smooth motion
- 120 diagonal field of view
- 4x digital zoom with PTZ control
- Six omnidirectional microphones, 4.5 m range
- Built-in speaker with 92 dB output
- HDMI input and two HDMI outputs
- USB-C and USB-A connectivity
Specifications
| Performance |
| PTZ control |
Yes |
| Tilt angle range |
-15 - 15° |
| Pan range |
-25 - 25° |
| Product colour |
Graphite |
| Product type |
Group video conferencing system |
| Video |
| Maximum frame rate |
30 fps |
| Supported video modes |
576p, 720p, 900p, 1440p, 2160p |
| HD type |
4K Ultra HD |
| Audio |
| Echo cancellation |
Yes |
| Microphone pick-up range |
4.5 m |
| Noise reduction |
Yes |
| RMS rated power |
8 W |
| Sample rates |
0 - 48 kHz |
| Audio beamforming |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Line-out impedance |
4 Ω |
| Output level |
92/99 dB |
| Built-in speaker(s) |
Yes |
| Ports & interfaces |
| Microphone in |
Yes |
| DC-in jack |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB connector type |
USB Type-A, USB Type-C |
| HDMI input ports quantity |
1 |
| HDMI output ports quantity |
2 |
| HDMI ports quantity |
3 |
| Network |
| Security algorithms |
128-bit AES |
| Supported network protocols |
IPv4, IPv6 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Camera |
| Remote control interface |
Bluetooth |
| Diagonal field of view |
120° |
| Vertical field of view |
80.7° |
| Horizontal field of view |
113° |
| Digital zoom |
4x |
| Zoom capability |
Yes |
| Microphone |
| Number of microphones |
6 |
| Sound pressure level (max) |
90 dB |
| Microphone direction type |
Omnidirectional |
| Microphone frequency |
90 - 16000 Hz |
| Microphone sensitivity |
-36 dB |
| Battery |
| Battery capacity |
220 mAh |
| Computer system |
| Mac operating systems supported |
MacOS |
| Windows operating systems supported |
Yes |
| Features |
| Telepresence |
No |
| Operational conditions |
| Heat dissipation |
64 BTU/h |
| Operating relative humidity (H-H) |
10 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Power |
| Power plug type |
Type G |
| Battery capacity |
220 mAh |
| Battery technology |
Lithium |
| Number of batteries supported |
1 |
| DC input voltage |
19 V |
| Current |
4.754 A |
| AC input voltage |
100 - 240 V |
| Power source type |
AC |
| Weight & dimensions |
| Weight |
4.03 kg |
| Height |
91.4 mm |
| Depth |
101 mm |
| Width |
719 mm |
| Packaging data |
| Package weight |
5.8 kg |
| Package height |
199 mm |
| Package depth |
789 mm |
| Package width |
191 mm |
| Packaging content |
| Packaging content |
Rally Bar Mini Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main lens and AI Viewfinder User documentation |
| Quick start guide |
Yes |
| Remote control included |
Yes |
| AC adapter included |
Yes |
| HDMI cable length |
2 m |
| Power cable length |
2.5 m |
| Cables included |
AC, DC, HDMI, USB Type-A to USB Type-C |
