Tired of blurry video and echo-filled meetings that waste time? With Logitech you can turn a noisy conference room into a crystal-clear 4K experience. The Rally Bar Mini + Tap Cat5 system captures every face, removes background noise, and lets you focus on the conversation, not the tech.

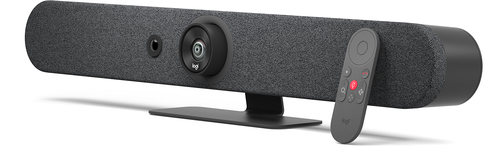

Logitech Rally Bar Mini + Tap Cat5, 4K Ultra HD 30 fps Video Conferencing System

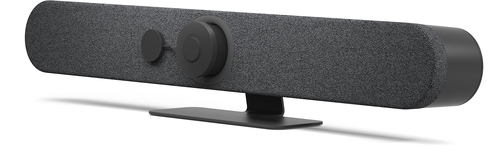

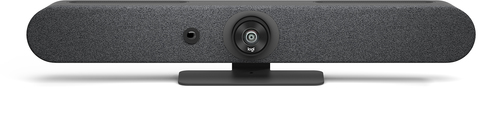

This video conferencing system is a compact all-in-one solution for small to medium meeting spaces. It combines a PTZ camera, six-mic array and a 10-inch touchscreen controller, all wired for reliable Cat5 connectivity.
Benefits
- Logitechs built-in echo cancellation lets every voice be heard clearly.
- 4K Ultra HD video shows details as if you were in the same room.
- 120 field of view captures all participants without extra cameras.
- Six omnidirectional microphones pick up sound up to 4.5 m away.

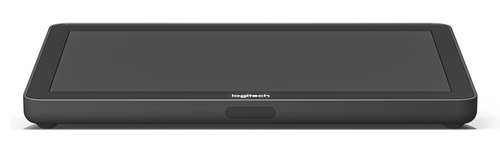

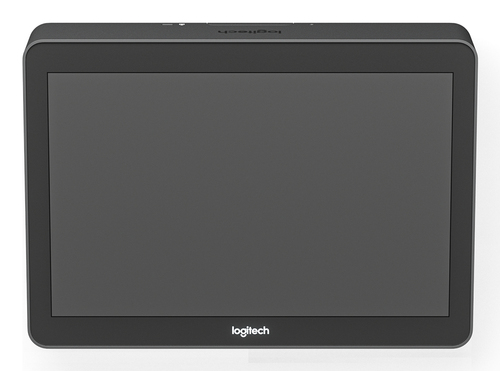

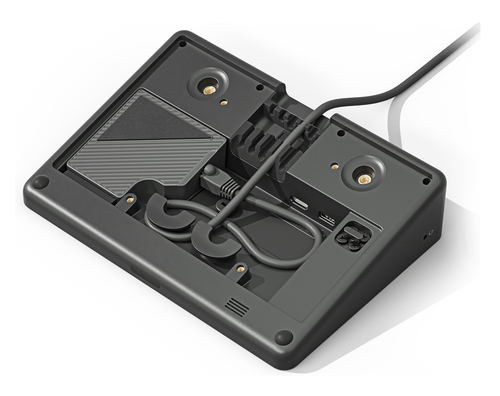

- Touchscreen Tap controller lets you start, mute or adjust settings with a tap.

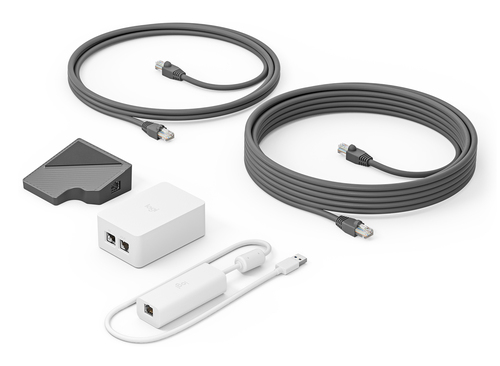

- Cat5 Ethernet ensures stable, low-latency connection even in busy networks.
Features
- 30 fps 4K video output
- PTZ control with 25 pan, 15 tilt
- 7 cm driver speakers, 8 W RMS power
- Built-in 6-mic array with beamforming
- HDMI input and dual HDMI outputs
- USB-C and three USB-A ports
- Kensington lock slot for security
- Motion sensor auto-powers the system
Specifications
| Performance |
| PTZ control |
Yes |
| Tilt angle range |
-15 - 15° |
| Pan range |
-25 - 25° |
| Product colour |
Graphite |
| Video |
| Maximum frame rate |
30 fps |
| Supported video modes |
576p, 720p, 900p, 1440p, 2160p |
| Maximum video resolution |
3840 x 2160 pixels |
| HD type |
4K Ultra HD |
| Audio |
| Driver diameter |
7 cm |
| Echo cancellation |
Yes |
| Microphone pick-up range |
4.5 m |
| Noise reduction |
Yes |
| RMS rated power |
8 W |
| Sample rates |
0 - 48 kHz |
| Audio beamforming |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Line-out impedance |
4 Ω |
| Output level |
92/99 dB |
| Built-in speaker(s) |
Yes |
| Ports & interfaces |
| Microphone in |
Yes |
| DC-in jack |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB connector type |
USB Type-A, USB Type-C |
| HDMI input ports quantity |
1 |
| HDMI output ports quantity |
2 |
| HDMI ports quantity |
3 |
| Network |
| Security algorithms |
128-bit AES |
| Supported network protocols |
IPv4, IPv6 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Camera |
| Remote control interface |
Bluetooth |
| Diagonal field of view |
120° |
| Vertical field of view |
80.7° |
| Horizontal field of view |
113° |
| Digital zoom |
4x |
| Zoom capability |
Yes |
| Display |
| Oleophobic coating |
Yes |
| Display brightness |
400 cd/m² |
| Viewing angle, horizontal |
85° |
| Viewing angle, vertical |
85° |
| Touchscreen type |
Capacitive |
| Touchscreen |
Yes |
| Contrast ratio (typical) |
1000:1 |
| Display resolution |
1280 x 800 pixels |
| Display diagonal |
25.6 cm (10.1") |
| Display |
IPS |
| Microphone |
| Number of microphones |
6 |
| Sound pressure level (max) |
90 dB |
| Microphone direction type |
Omnidirectional |
| Microphone frequency |
90 - 16000 Hz |
| Microphone sensitivity |
-36 dB |
| Computer system |
| Mac operating systems supported |
Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Features |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Motion sensor |
Yes |
| Telepresence |
No |
| Operational conditions |
| Operating relative humidity (H-H) |
10 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Power |
| DC input voltage |
19 V |
| Current |
4.74 A |
| AC input voltage |
100 - 240 V |
| Power source type |
AC |
| Weight & dimensions |
| Weight |
4.03 kg |
| Height |
91.4 mm |
| Depth |
101 mm |
| Width |
719 mm |
| Interface module weight |
1.25 kg |
| Interface module dimensions (W x D x H) |
244 x 179 x 58 mm |
| Packaging content |
| Camera included |
Yes |
| Quick start guide |
Yes |
| Remote control included |
Yes |
| Mounting kit |
Yes |
| AC adapter included |
Yes |
| HDMI cable length |
2 m |
| Power cable length |
1.5 m |
| Cables included |
AC, DC, HDMI, USB Type-A to USB Type-C |
